DMS Seals New cylinder packing kits vendor for pneumatic equipment
1. cylinder packing kits is constantly updated and improved.
2. One of the outstanding characteristics of cylinder packing kits is its .
3. Paying close attention to the design of cylinder packing kits is good for the DMS Seals advertising.
4. Each detail of DMS Seals cylinder packing kits is carefully crafted by using the latest advanced technology.
5. The product has the characteristics of good elongation. Its fiber has been treated with elasticizer which can enhance the stretching force between fibers.
6. Its structure is designed for maximum efficiency and easiest ongoing maintenance for the lowest total cost in both installation and everyday use.
7. The reflectivity of this product is satisfying. The screen's multiple layers of diffusion material negate the washout effects of ambient light for sharp image clarity.
8. Enhancing service of DMS Seals will facilitate the improvement of brand image.
9. cylinder packing kits products from Dms Seals Technology Co.,limited pursue high quality and low prices.
10. Dms Seals Technology Co.,limited always adheres to the principle of 'customer first'.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |
Application and properties

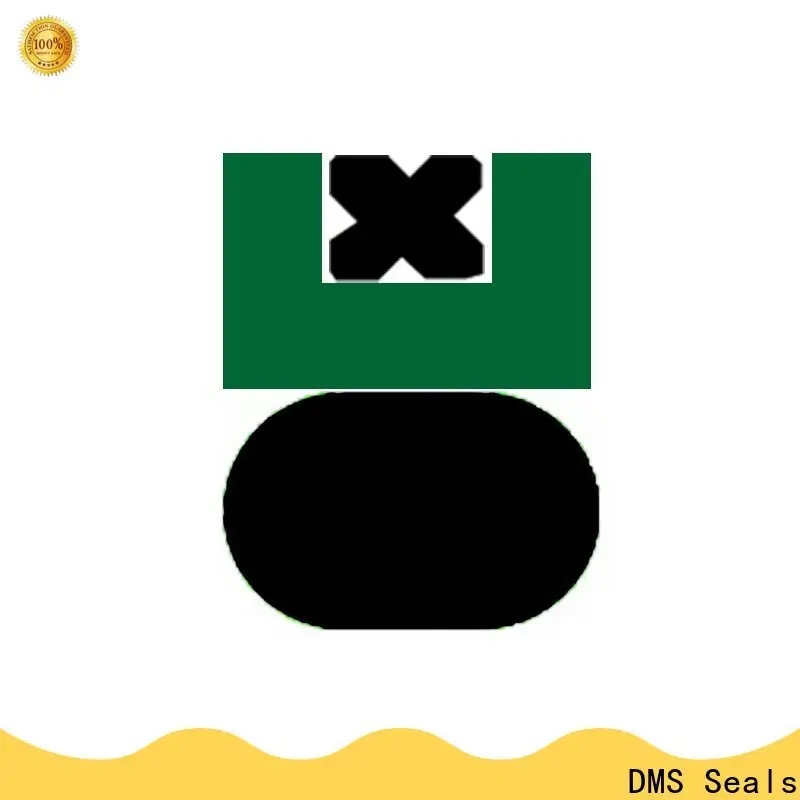

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
70 | 59 | 4.2 | DAQ70*59*4.2 | 56.74*3.53 |
80 | 64.5 | 6.3 | DAQ80*64.5*6.3 | 62.87*5.33 |
85 | 64 | 8.1 | DAQ85*64*8.1 | 63*7.0 |
95 | 79.5 | 6.3 | DAQ95*79.5*6.3 | 78.74*5.33 |
100 | 79 | 8.1 | DAQ100*79*8.1 | 78*7.0 |
110 | 94.5 | 6.3 | DAQ110*94.5*6.3 | 91.44*5.33 |
115 | 94 | 8.1 | DAQ115*94*8.1 | 93*7.0 |
125 | 109.5 | 6.3 | DAQ125*109.5*6.3 | 107.32*5.33 |
130 | 109 | 8.1 | DAQ130*109*8.1 | 108*7.0 |
150 | 129 | 8.1 | DAQ150*129*8.1 | 126.37*7.0 |
180 | 159 | 8.1 | DAQ180*159*8.1 | 158.12*7.0 |
210 | 189 | 8.1 | DAQ210*189*8.1 | 183.52*7.0 |
240 | 219 | 8.1 | DAQ240*219*8.1 | 215.27*7.0 |
Company Features
1. As a manufacturer of cylinder packing kits , Dms Seals Technology Co.,limited has an advantage in terms of capacity and quality. Founded by exceptionally innovative technology, DMS Seals is a broad famous exporter in the area of rod seal tool . Dms Seals Technology Co.,limited provides and manufactures different varieties of products. Dms Seals Technology Co.,limited is globally competitive in the piston rod seals hydraulic marketplace.
2. Our company has been fortunate to attract some of the most talented professionals in this industry. They have advanced experience in both product design and fabrication. With years of technical experience and customer service awareness, we have won more trust from customers all over the world. Compared to previous years, we have established more business cooperations with clients. We have an experienced resource purchasing and management team. They have many years of experience in materials purchases and profound knowledge in the industry trend. Hence, they can control the purchase costs effectively while guaranteeing high-quality materials. The factory has newly brought in a set of advanced manufacturing facilities. These facilities enable us to guarantee stable product output with high quality for clients.
3. Our plans for the future are ambitious: we have absolutely no intention of resting on our laurels! Rest assured, we will still keep expanding our product range. Please contact us! In the future, we will develop our own brands and innovate value-added products and services to enhance global competitiveness. Please contact us! We are always ready to provide the high-quality cylinder rod seal . Please contact us! Our company is committed to being at the forefront of product development and innovation, delivering superior manufacturing capability in tandem with the maximized cost efficiencies. Please contact us! Our company truly maximize our green efforts. We use the most energy efficient machines and appliances available, from manufacturing machines through office refrigerators. All is for achieving a high level of energy efficiency. Please contact us!
