DMS Seals New hydraulic piston seals cost for pneumatic equipment 1

DMS Seals New hydraulic piston seals cost for pneumatic equipment 2

DMS Seals New hydraulic piston seals cost for pneumatic equipment

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Product Comparison

O-ring Seal is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.O-ring Seal's outstanding advantages are as follows.

Company Advantages
1. The production of DMS Seals involves the following concepts: medical device regulations, design controls, medical device testing, risk management, quality assurance.
2. Manufacturing of DMS Seals is a complex process. It begins with mining and then grinding raw materials to completion of heating, cooling, and drying.
3. The production equipment of DMS Seals is constantly updated in recent years, including automatic inspection machine, trimming machine, spring loading and packing machine.
4. The product features a superior and glossy finish. The materials used in it such as fiberglass have been finely polished and waxed.
5. The product has a long service life. It is not likely to be affected by excessive operating temperatures, overload, and deep discharge.
6. The operation process of this product is stable and reliable owing to the reasonably designed and arranged components and parts.
7. The product is used in a wide variety of applications in a diverse range of environments, including industrial sealing and leakage problems.
8. I purchased this and fell in love with how easy it was to apply and how naturally pretty it enhanced my appearance. - One of our customers says.
9. With so many different shapes and forms, the product can be used in hundreds and thousands of applications and fields.

Installation Recommendation

undefined

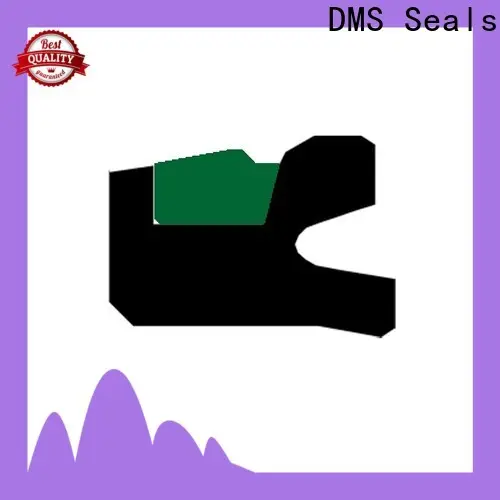

Application and properties

Apply to the hydraulic cylinder of piston sealing, generally used in conjunction with the guide sleeve. The seal ring and piston conforming to be a symmetric section to achieve the sealing performance. The Non-standard Y-ring has the function of sealing and provides the elastic force to the sealing ring and compensates for the abrasion. Very high pressure stability under pressure and harsh conditions, high wear resistance, low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D H8	d h9	H	L+0.2	e	Order No.
40 43 44	32 35 36	7 7 7	7.5 7.5 7.5	6 6 6	DDA40327.5 DDA43357.5 DDA44367.5
45 48 50	37 40 42	7 7 7	7.5 7.5 7.5	6 6 6	DDA45377.5 DDA48407.5 DDA50427.5
55 60 63	45 45 53	7 12 8	7.5 13 8.5	6 6 6	DDA55457.5 DDA604513 DDA63538.5
63 65 65	48 50 50	12 12 12	13 8.5 13	6 6 6	DDA634813 DDA65508.5 DDA655013
70 75 78	55 60 63	12 12 12	13 13 13	6 6 6	DDA705513 DDA756013 DDA786313
80 85 87	65 70 72	12 12 12	13 13 13	6 6 6	DDA806513 DDA857013 DDA877213
90 95 100	75 80 85	12 12 12	13 13 13	7 7 7	DDA907513 DDA958013 DDA1008513
105 110 115	90 95 100	12 12 12	13 13 13	7 7 7	DDA1059013 DDA1109513 DDA11510013
120 125 130	105 110 115	12 12 12	13 13 13	7 7 7	DDA12010513 DDA12511013 DDA13011513
140 145 150	120 125 130	12 12 12	13 13 13	7 10 10	DDA14012013 DDA14512513 DDA15013013
160 160 170	140 140 150	12 16 16	13 17 17	10 10 10	DDA16014013 DDA16014017 DDA17015017
180 185 190	160 165 170	16 16 16	17 17 17	10 10 10	DDA18016017 DDA18516517 DDA19017017
200 210 220	180 190 200	16 16 16	17 17 17	10 10 10	DDA20018017 DDA21019017 DDA22020017

Installation Dimensions

Company Features
1. It can be seen from the comparison that Dms Seals Technology Co.,limited has made great progress in industry. Dms Seals Technology Co.,limited is one of the largest manufacturers of . The company gears its focus on the overseas markets currently. Dms Seals Technology Co.,limited centers on the development and production of in the meantime we offer a wide range of other product portfolios.
2. DMS Seals is highly recognized for its well-made products. Dms Seals Technology Co.,limited owns professional team of experienced curtain wall production and processing engineers and designers hydraulic piston seals is produced by our modern production lines and inspected by our experienced technician. DMS Seals has introduced highly delicate technology to making sure the quality of rod seal design . By training more professional and technical personnel, DMS Seals is more confident to produce the highest quality products pneumatic seals catalogue .
3. Our mission is to develop innovative buy hydraulic seals that create . Get price! As a magic weapon to inspire DMS Seals to overcome difficulties and continue to advance, our corporate culture is buffer seal hydraulic . Get price! The service theory of in Dms Seals Technology Co.,limited emphasize on . Get price! Implementing the tenet of cylinder packing kits with our heart and soul, we sincerely serve the enterprise. Get price!

DMS Seals New hydraulic piston seals cost for pneumatic equipment

hydraulic piston seals

Type:

DMS Seals New hydraulic piston seals cost for pneumatic equipment 7

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
