DMS Seals New labyrinth shaft seal company for construction machinery
1. The mechanical components of DMS Seals are precisely manufactured. Various kinds of CNC machines are used such as the cutting machine, drilling machine, milling machine, and punching machine. The high pressure seals have strong wear resistance to hard conditions
2. By providing professional customer service, DMS Seals now has gained more and more praises. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
3. This product is skin-friendly. The fibers have a smooth feel and a natural sweating action that keeps moisture away from the skin. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
Rod Diameter | Groove Diameter | Seal Width | Groove Width | Guide Clearance S max | |
d e8 | D H9 | H | L | 0-10MPa | 15-36MPa |
50-79 | d+10.0 | 4.5 | 5.0 | 0.40-0.30 | 0.30-0.25 |
80-109 | d+13.8 | 7.0 | 7.5 | 0.45-0.35 | 0.35-0.30 |
110-299 | d+20.0 | 9.5 | 10.0 | 0.55-0.45 | 0.45-0.35 |
300-600 | d+24.0 | 12.5 | 13.0 | 0.60-0.55 | 0.55-0.45 |
Application and properties

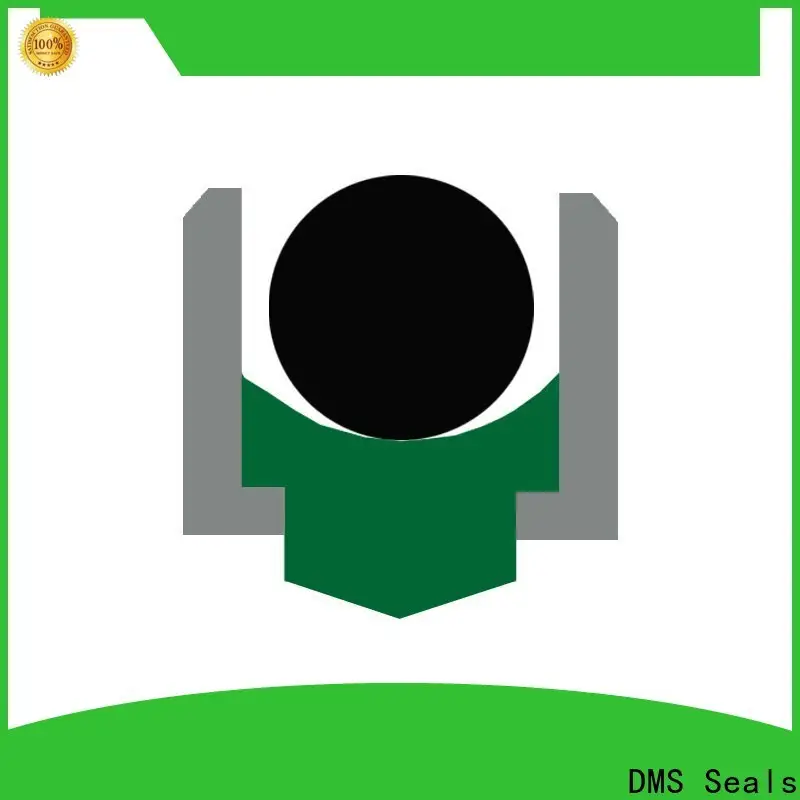

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-Ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-36MPa | -36℃+100℃ | 0.5 m/s | hydraulic oil, flame retardant liquid, water and others |
d e8 | D H9 | H | L | e | Order No. |
50 | 60 | 4.5 | 5 | 7 | OI50*60*4.5 |
65 | 75 | 4.5 | 5 | 7 | OI65*75*4.5 |
80 | 93.8 | 7.0 | 7.5 | 7 | OI80*93.8*7 |
95 | 108.8 | 7.0 | 7.5 | 7 | OI95*108.8*7 |
115 | 135 | 9.5 | 10 | 10 | OI115*135*9.5 |
130 | 150 | 9.5 | 10 | 10 | OI130*150*9.5 |
160 | 180 | 9.5 | 10 | 10 | OI160*180*9.5 |
190 | 210 | 9.5 | 10 | 10 | OI190*210*9.5 |
225 | 245 | 9.5 | 10 | 10 | OI225*245*9.5 |
Company Features
1. Dms Seals Technology Co.,limited has always been a vanguard company in labyrinth shaft seal market. dual lip seal is manufactured in advanced machines to ensure high quality.
2. Dms Seals Technology Co.,limited actively develops and applies the advanced technology for manufacturing hydraulic and pneumatic seals .
3. After years of continuous efforts, Dms Seals Technology Co.,limited has established a strong rotary air seal research & development department. Dms Seals Technology Co.,limited promises that every customer will be served well. Get quote!
