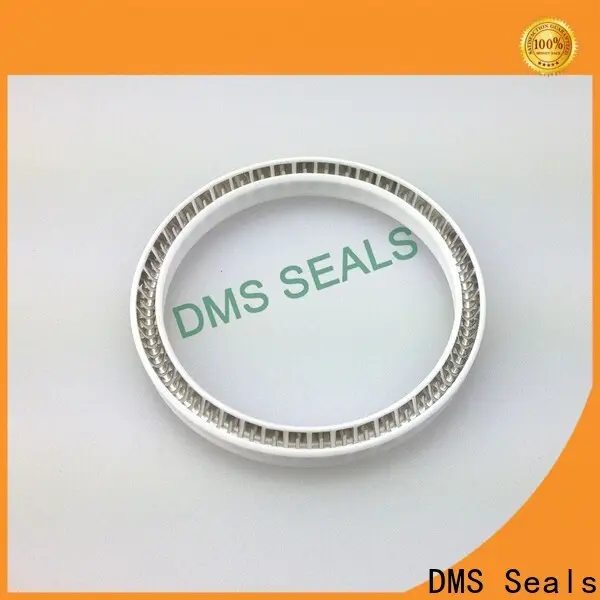

DMS Seals New mechanical seal standard wholesale for aviation

Company Advantages
1. The production of DMS Seals is of high efficiency with the help of advanced production equipment. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. This offered product is suitable to use in many fields. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. The product features stretch recovery. The fabric used has passed the tests on the stretch recovery of yarns under a specified tension and extension. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
4. The product is able to maintain its color. It is not susceptible to cosmetics that contain zinc oxide, titanium dioxide, ferric oxide, and calamine. DMS Seals implements and optimizes its quality control systems

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.



Company Features
1. Dms Seals Technology Co.,limited is a high-tech enterprise which applies to synthesize high performance mechanical seal standard . Dms Seals Technology Co.,limited has successfully got several patents for technology.
2. Our professional equipment allows us to fabricate such .
3. All our technical staff are rich in experience for unbalanced mechanical seal . To provide more and better high quality stationary mechanical seal , DMS Seals aim to create a trustworthy and responsible enterprise. Call!
