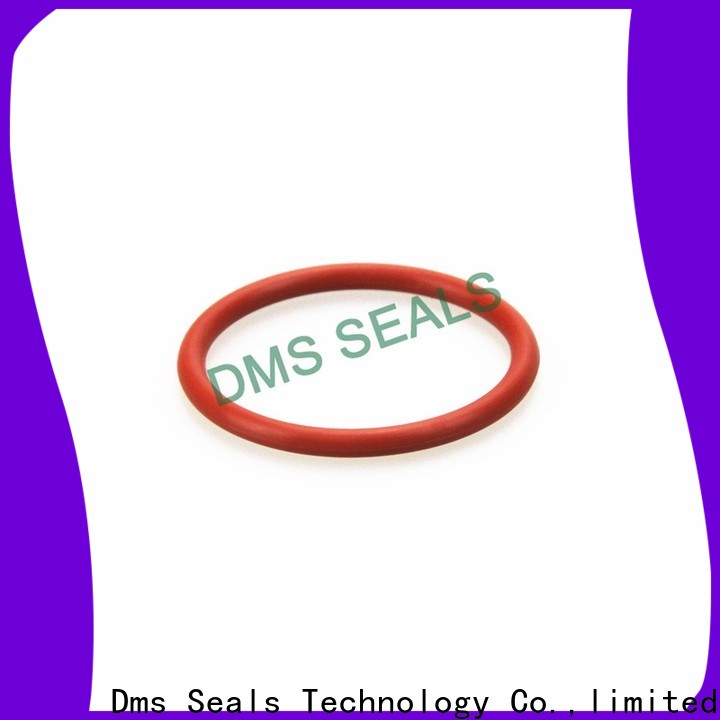

DMS Seals nitrile rubber o rings large company for sale

Company Advantages
1. DMS Seals is made of high quality and durable raw materials which undergo strict screening procedures.
2. The design of DMS Seals features uniqueness and practicality.
3. Loaded with all the features, the is known in the markets.
4. DMS Seals rubber o rings large is produced with unique designs by our experienced experts.
5. DMS Seals is designed by the experienced staff who has many years of experiences in designing.
6. The strong ability from make our products more appreciated by customers.
7. It is worth pondering that being the representatives of professional rubber o rings large .
8. rubber o rings large offers several advantages in terms of .
9. DMS Seals can be said as a shining example of a brand that has managed to provide exceptional customer service.
10. Focusing on solving problems about rubber o rings large is what DMS Seals has been doing.
11. The service team in DMS Seals has been specialized in rubber o rings large industry for a long time.
12. Dms Seals Technology Co.,limited always adheres to the principle of 'customer first'.
13. Dms Seals Technology Co.,limited offers affordable premium prices for rubber o rings large as well as excellent service experience.

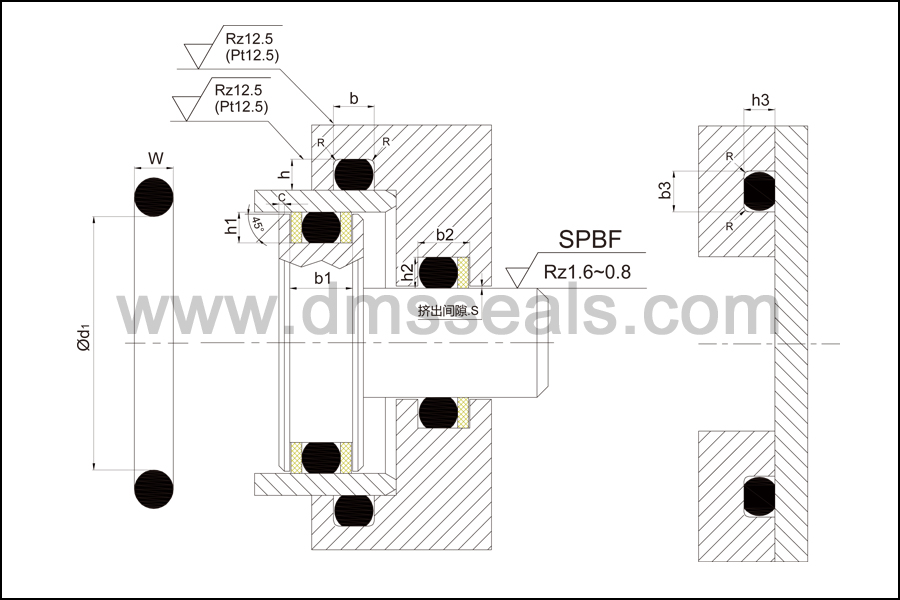

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

Silicone

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Dms Seals Technology Co.,limited ​​is a manufacturer that specializes in producing rubber o rings large . Dms Seals Technology Co.,limited enjoys a high reputation in the blue o ring material field. It is widely believed that DMS Seals has become a well-known exporter on the market. DMS Seals is a world-leading supplier of colored silicone o rings . Dms Seals Technology Co.,limited is in a leading position in domestic and foreign counterparts.
2. Our factory is supported by a series of manufacturing facilities. They allow us to offer full-scale production and meet a wide variety of customer and market needs while maintaining the highest possible quality. Our greatest assets are the very capable personnel, many of whom are recognized and accepted as leading experts in their field. They bring literally decades of combined knowledge and expertise to our production. We invest a lot in our production facilities and constantly upgrade them each year, which enables us to improve operational efficiency for our orders and raise productivity. We have brought together a professional sales team. Embracing good communication skills and projects coordination capabilities, they are able to supply a whole set of product services to our clients. We have an in-house design team. They work closely with our fabrication teams to ensure each and every item they design meets our strict QC standards.
3. We’re transforming our business to reduce CO2 emissions, end deforestation, reduce production loss and waste, and move toward offering more sustainable products. Our company adheres to the business principle of "Technology for development and quality for existence". We will rely on introducing cutting-edge manufacturing technologies in an effort to improve product quality. Bearing social responsibilities, our company optimizes business operations and facilities. Because of basic necessities such as temperature control, lighting, gas, plumbing, water, and electricity to power machines, simply running the business has an impact on the environment. We are fully aware of the importance of sustainable development. We believe that people pursue in our activities, save resources, protect the environment and help our products promote social progress. Our business philosophy is to offer the highest level of services for our customers. We will work hard to provide solutions and cost benefits that are of mutual benefit to us and our customers.
