Product Comparison
Dms Seals provides diversified choices for customers. Oil Seal Manufacturer is available in a wide range of types and styles, in good quality and in reasonable price.Oil Seal Manufacturer is more competitive than other products in the same category, as shown in the following aspects.
Company Advantages1. The application shows that oil seal hydraulic is feasible in structure and .
2. oil seal hydraulic take precedence over other similar products with its design.
3. The design and the materials of oil seal hydraulic must be well selected.
4. oil seal hydraulic is especially fits for the usage in .
5. The product has remarkable sealing performance. All its components and parts are finely soldered inside the housing.
6. The high quality fabric of this product dries rapidly. It will absorb the moisture and divert it away from the body.
7. The product can provide constant results. It doesn’t get tiried and make dangerous mistakes, neither does it suffer from repetitive strain injury.
8. This product has good anti-static property. The fabric is carefully treated with antistatic finishing agent to eliminate any electrostatic discharge.
9. This product is anti-pill and does not form small strands on the surface over time as long as under proper care.
10. Dms Seals Technology Co.,limited's customer service is very professional in oil seal hydraulic industry.
11. Dms Seals Technology Co.,limited's mission is to provide superior oil seal hydraulic solution.
12. Dms Seals Technology Co.,limited has the best designers who are actively developing new products based on the spirit of innovation.
13. For Dms Seals Technology Co.,limited, the only way to win customers in oil seal hydraulic market is to improve the sense of customer service.
14. According to customer needs, Dms Seals Technology Co.,limited can provide fast and accurate flexibility of production methods.
Installation Recommendation
![undefined undefined]()
Application and properties

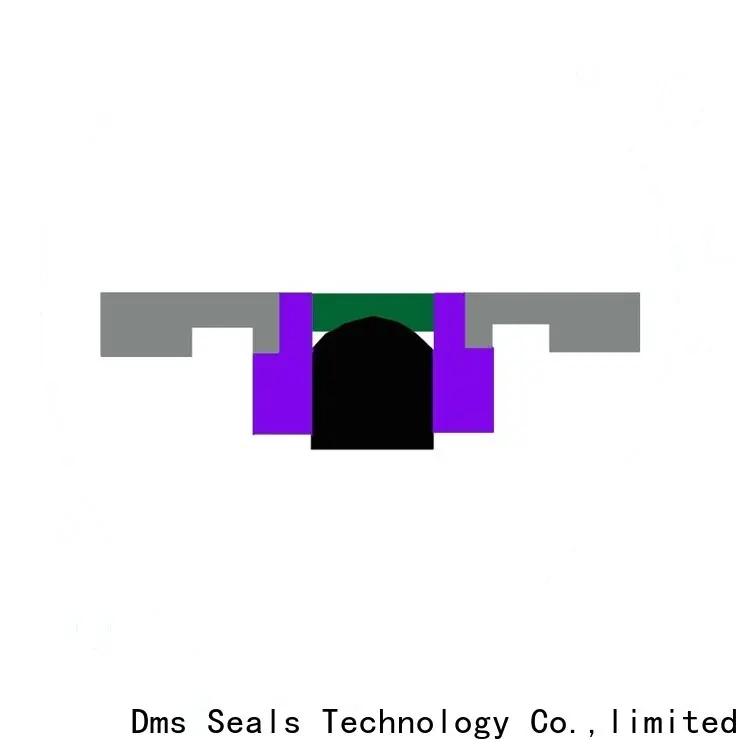

Apply to cylinder piston, consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves.
The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: filled PTFE / PA
Guide ring: filled PTFE / PA
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+200℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D | d | b | d2 | d3 | a | c | f | e | Order No. |
40
45
50 | 26
31
34 | 32
32
39 | 32
37
42 | 36
41
46 | 3.5
3
3 | 15.5
15.5
20.5 | 8.25
8.25
9.25 | 7
7
7 | DDKK40*26*32
DDKK45*31*32
DDKK50*34*39 |
56
60
63 | 40
44
47 | 39
39
39 | 48
52
55 | 52
56
59 | 3
3
3 | 20.5
20.5
20.5 | 9.25
9.25
9.25 | 7
7
7 | DDKK56*40*39
DDKK60*44*39
DDKK63*47*39 |
65
70
75 | 49
54
59 | 39
39
39 | 57
62
67 | 61
66
71 | 3
3
3 | 20.5
20.5
20.5 | 9.25
9.25
9.25 | 7
7
7 | DDKK65*49*39
DDKK70*54*39
DDKK75*59*39 |
80
85
90 | 62
67
72 | 43
43
43 | 72
77
82 | 76
81
86 | 3
3
3 | 22.5
22.5
22.5 | 10.25
10.25
10.25 | 7
7
7 | DDKK80*62*43
DDKK85*67*43
DDKK90*72*43 |
95
100
105 | 77
82
87 | 43
43
43 | 87
92
97 | 91
96
101 | 3
3
3 | 22.5
22.5
22.5 | 10.25
10.25
10.25 | 7
7
10 | DDKK95*77*43
DDKK100*82*43
DDKK105*87*43 |
110
115
120 | 92
97
102 | 43
43
43 | 102
107
112 | 106
111
116 | 3
3
3 | 22.5
22.5
22.5 | 10.25
10.25
10.25 | 10
10
10 | DDKK110*92*43
DDKK115*97*43
DDKK120*102*43 |
125
130
140 | 103
108
118 | 53
53
53 | 115
120
130 | 121
126
136 | 4
4
4 | 26.5
26.5
26.5 | 13.25
13.25
13.25 | 10
10
10 | DDKK125*103*53
DDKK130*108*53
DDKK140*118*53 |
150
160
165 | 128
138
143 | 53
53
57 | 140
150
155 | 146
156
161 | 4
4
6 | 26.5
26.5
26.5 | 13.25
13.25
15.25 | 10
10
10 | DDKK150*128*53
DDKK160*138*53
DDKK165*143*57 |
170
180
190 | 148
158
165 | 57
57
64 | 160
170
180 | 166
176
186 | 6
6
4.5 | 26.5
26.5
31.5 | 15.25
15.25
16.25 | 10
10
10 | DDKK170*148*57
DDKK180*158*57
DDKK190*165*64 |
195
200
210 | 170
175
185 | 64
64
71 | 185
190
200 | 191
196
206 | 4.5
4.5
8 | 31.5
31.5
31.5 | 16.25
16.25
19.75 | 10
10
12 | DDKK195*170*64
DDKK200*175*64
DDKK210*185*71 |
