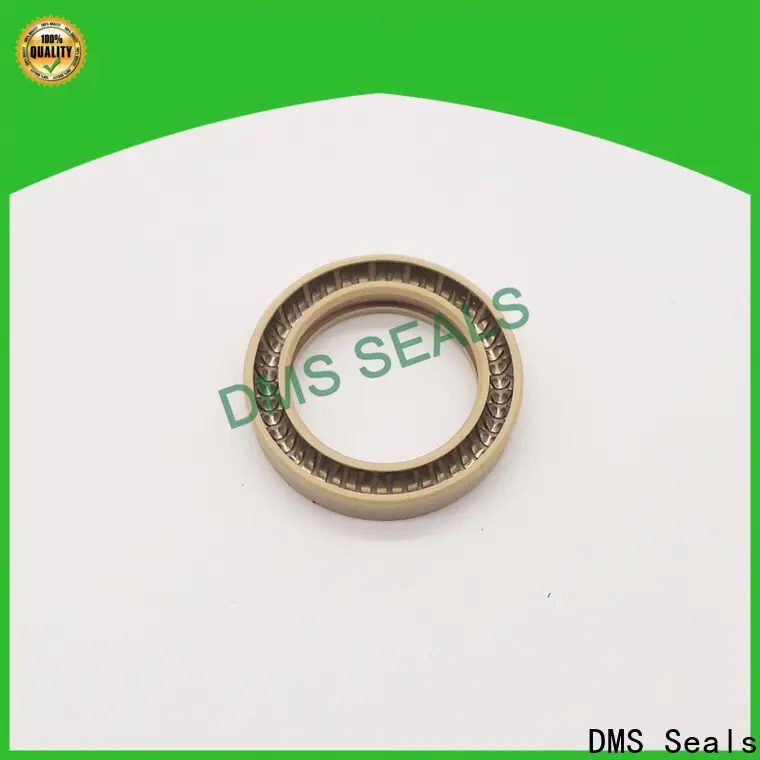

DMS Seals oil seal manufacturer manufacturer for reciprocating piston rod or piston single acting seal

Company Advantages
1. DMS Seals is a well-crafted product that adopts advanced technologies and is processed by specialized and highly efficient production lines. It is produced directly from the well-equipped facility.
2. DMS Seals is manufactured from premium raw materials and by experienced production team according to the formulated production plan.
3. Confirmed design: the design of DMS Seals has been confirmed by users, which combines both functionality and aesthetics and is carried out by a team of talents.
4. Made of high-quality materials and delicately crafted using advanced technology, DMS Seals oil seal manufacturer shows a touch of class and beauty.
5. Since our professional quality control personnel track quality throughout the production process, this product guarantees zero defects.
6. This product has complete functions, complete specifications and is in great demand worldwide.
7. The product has long-lasting performance and strong usability.
8. Compared with other products, this product has obvious advantages, longer service life and more stable performance. It has been tested by authoritative third parties.
9. The product complies with international quality standards.
10. Dms Seals Technology Co.,limited ensures to offer the most professional service for customers.
11. Customers will always be involved in solving their problems while cooperate with Dms Seals Technology Co.,limited.
12. Dms Seals Technology Co.,limited has highly qualified agents responsible for product sales and providing quality global customer service.
13. The customer service of oil seal manufacturer has been highly recognized by customers.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. Owing to advanced equipment and , Dms Seals Technology Co.,limited is in a larger scale to meet up with increased needs from customers. Constant new products can fully prove that Dms Seals Technology Co.,limited highly values R&D. With great popularity in market for our oil seal manufacturer , Dms Seals Technology Co.,limited has grown to be a leading enterprise in this trade. DMS Seals is greatly popular in global market for its stable quality.
2. We have strong technical support from a work team with years of manufacturing experiences. They are capable of customizing and offering products completely in line with customers' requirements. They have never let our clients disappointed. Our company has been fortunate to attract some of the most talented professionals in this industry. They have advanced experience in both product design and fabrication. We have a wide range of production facilities in our Chinese factory. These facilities are equipped with the latest technologies, enabling us to produce high-end quality products and meet almost all requirements of our customers. We have established long-term cooperation with customers. We have built up mutual trust and achieved a win-win situation over the years. Time has proved to us that they are our loyal customers.
3. Our company bears social responsibility. We assess impacts such as the acquisition of raw material through production for a product's entire life cycle to improve the eco-efficiency profile of our products. We measure ourselves and our actions through the lens of our customers and suppliers. We want to build strong relationships with them and deliver quality products and services. Our company bears social responsibilities. A sustainable supply chain is one of the main areas in our company's sustainability strategy. In the future, we will continue to serve customers with high professionalism and control every stage of the manufacturing process based on the advantages of cost and capability in China while maintaining high-quality standards.
