DMS Seals packing rod seals manufacturer for pneumatic equipment

Company Advantages
1. DMS Seals leverages the design concept to create a visual aesthetic. Patchwork, pleats, darts, pleats, skirts, panels are some of the design concepts that can be added when creating this item. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
2. In fact, the product performs well than others in the industry. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
3. The product is not easy to deform. The whole door framework has gone through the anti-deforming treatment and pressed by the pressing machine under a certain temperature. DMS Seals implements and optimizes its quality control systems
4. This product can work stably under a range of voltage. It has been check for its reliability in different voltage conditions, such as input voltage, surge voltage or low voltage. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
5. The product has a smooth surface without any cracks or holes. It is hard for bacteria, viruses, or other germs to become lodged into it. We have developed solutions of the sealing of special working condition

1. Installation Recommendation

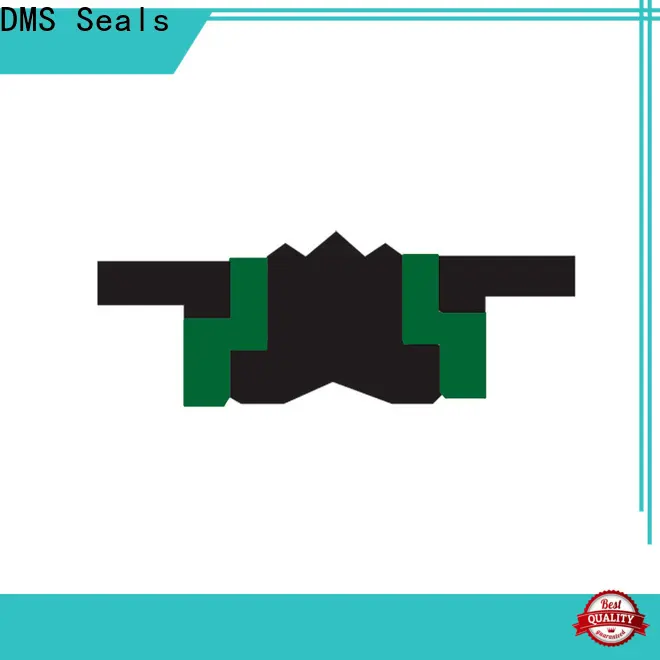

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1



Company Features
1. Dms Seals Technology Co.,limited has years of experience in manufacturing and an unmatched reputation for delivering superior products and services. We are backed by a professional manufacturing team. Relying on their robust backgrounds and expertise, they are proficient enough to manufacture our products within the highest standards.
2. The self-manufacturing base adopts an integrated ISO quality control system, which brings customers high-quality products and reliable partnership.
3. Our company has an assortment of bright and talented R&D people. They can draw on their expertise accumulated over many years to develop powerful products. We have recognized the importance of friendly action on the environment. Our efforts in reducing resource demand, promoting green procurement, and adopting water resource management have gained some achievements.
