DMS Seals piston ring design guide vendor for forklifts

Diameter Range:
3-1600mm
Temperature Range:
-30℃+200℃
Speed:
5m/s
Medium:
hydraulic oil, flame retardant liquid, water and others
Inquiry
Product Details
In the production, Dms Seals believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of Oil Seal Manufacturer. It is of fine workmanship and good quality and is well sold in the domestic market.
  • DMS Seals piston ring design guide vendor for forklifts 3
Enterprise Strength
  • Dms Seals has established a complete service system to provide consumers with intimate after-sales services.
Company Advantages
1. piston ring design guide is checked against customers' chosen specifications to meet a range of requirements including passing international standards of the destination market.
2. DMS Seals piston ring design guide is finely processed by using well-selected materials and the advanced production techniques.
3. DMS Seals is designed by experienced engineers, who have in-depth knowledge about the industrial specifications.
4. DMS Seals is produced in a highly standardized production environment.
5. piston ring design guide is developed using latest technology support.
6. The product is made through a process that involves rigorous quality testing, such as inspection of raw materials and finished products.
7. Product quality is excellent, in line with industry quality standards.
8. This product is durable and powerful.
9. Dms Seals Technology Co.,limited continues to innovate on piston ring design guide and improve its competitiveness.
10. Dms Seals Technology Co.,limited always implements the right customer service culture to maximize customer satisfaction.
11. Dms Seals Technology Co.,limited works hard to promote piston ring design guide industry’s innovation and development.
12. DMS Seals take effective measures to ensure the quality of piston ring design guide .
Installation Recommendation

undefined

Installation Sizes

Rod Diameter

Groove    Diameter

Groove Width

Bore Diameter

Radius

Step Width

d f8/h9

D H9

L+0.2

D1±0.1

R

a

20-39.9

d+7.6

4.2

d+1.0

0.4

3.0

40-69.9

d+8.8

6.3

d+1.5

1.0

3.0

70-139.9

d+12.2

8.1

d+2.0

1.2

4.0

140-399.9

d+16.0

11.5

d+2.0

2.0

5.0

400-649.9

d+24.0

15.5

d+2.5

2.5

8.0

650-999.9

d+27.3

18.0

d+2.5

2.5

10.0

Application and properties

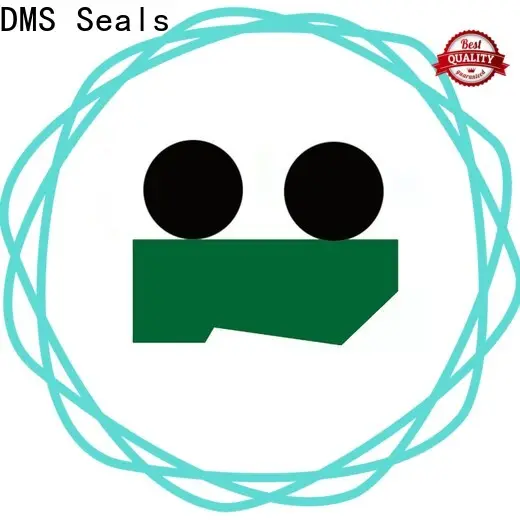

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm


-36℃+200℃

5 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8

D H9

H

L+0.2

Order No.

20
25
28

27.6
32.6
35.6

4.0
4.0
4.0

4.2
4.2
4.2

DPT1-20*27.6*4.2
DPT1-25*32.6*4.2
DPT1-28*35.6*4.2

30
32
35

37.6
39.6
42.6

4.0
4.0
4.0

4.2
4.2
4.2

DPT1-30*37.6*4.2
DPT1-32*39.6*4.2
DPT1-35*42.6*4.2

36
40
42

43.6
48.8
50.8

4.0
6.0
6.0

4.2
6.3
6.3

DPT1-36*43.6*4.2
DPT1-40*48.8*6.3
DPT1-42*50.8*6.3

45
50
55

53.8
58.8
63.8

6.0
6.0
6.0

6.3
6.3
6.3

DPT1-45*53.8*6.3
DPT1-50*58.8*6.3
DPT1-55*63.8*6.3

56
60
63

64.8
68.8
71.8

6.0
6.0
6.0

6.3
6.3
6.3

DPT1-56*64.8*6.3
DPT1-60*68.8*6.3
DPT1-63*71.8*6.3

65
70
75

73.8
82.2
87.2

6.0
7.7
7.7

6.3
8.1
8.1

DPT1-65*73.8*6.3
DPT1-70*82.2*8.1
DPT1-75*87.2*8.1

80
85
90

92.2
97.2
102.2

7.7
7.7
7.7

8.1
8.1
8.1

DPT1-80*92.2*8.1
DPT1-85*97.2*8.1
DPT1-90*102*8.1

95
100
105

107.2
112.2
117.2

7.7
7.7
7.7

8.1
8.1
8.1

DPT1-95*107*8.1
DPT1-100*112*8.1
DPT1-105*117*8.1

110
115
120

122.2
127.2
132.2

7.7
7.7
7.7

8.1
8.1
8.1

DPT1-110*122*8.1
DPT1-115*127*8.1
DPT1-120*132*8.1

undefined
Installation Dimensions
