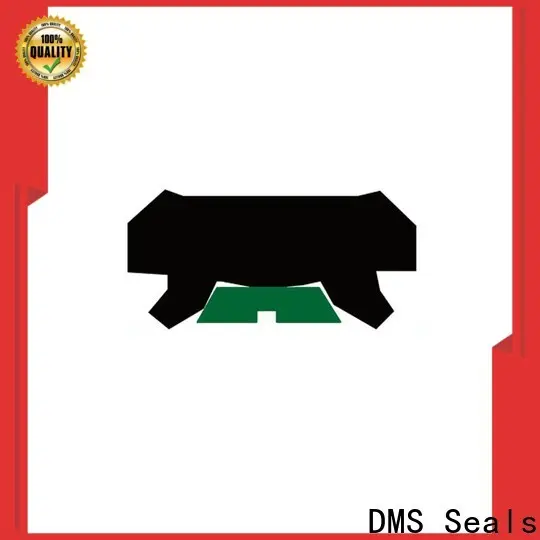

DMS Seals piston rod seal price to high and low speed

Company Advantages
1. DMS Seals is a good functional product. Carefully designed by our in-house professionals, this product is simple, fashionable and colorful. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
2. The product can perfectly meet various application needs and has wide market potential. DMS Seals' production equipment and test equipment are on the leading level in the industry
3. This piston rod seal is especially practical for . DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

3. Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 25MPa	-30℃ + 100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI50*60*15 MDI55*65*15 MDI56*66*15
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI60*73*15 MDI63*76*15 MDI65*78*15
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI70*83*15 MDI72*85*15 MDI75*88*15
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI80*93*15 MDI85*98*15 MDI90*103*15
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI95*108*15 MDI100*113*15 MDI105*118*15
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI110*120*15 MDI110*123*15 MDI115*128*15
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI120*133*15 MDI125*138*15 MDI130*143*15
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI140*153*15 MDI150*162*15 MDI150*165*15
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI160*175*15 MDI165*180*15 MDI170*185*15
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI180*195*15 MDI185*200*15 MDI190*205*15

Company Features
1. Due to the excellence in the R&D, manufacture, and marketing of , Dms Seals Technology Co.,limited keeps growing and expanding year by year.
2. Our experienced and passionate leaders are able to create value for our customers. They constantly improving our business flow and the way we serve customers.
3. We always maintain professionalism in every production process piston rod seal . Get an offer!
