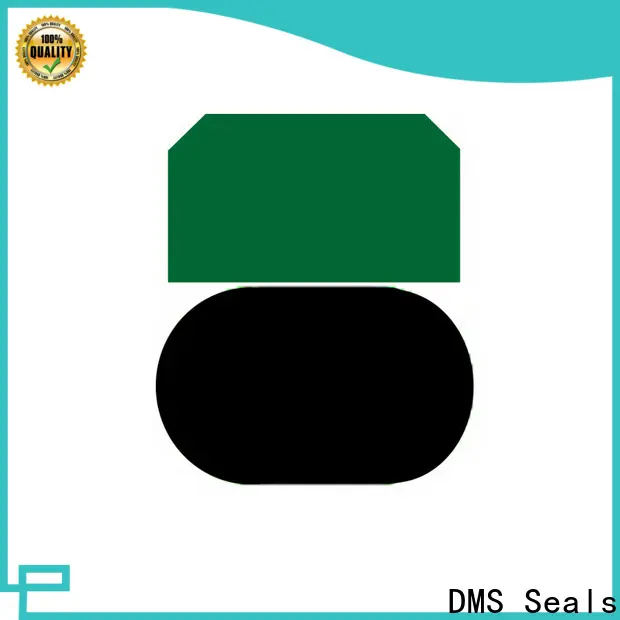

DMS Seals piston seal additive for sale for light and medium hydraulic systems 1

DMS Seals piston seal additive for sale for light and medium hydraulic systems 2

DMS Seals piston seal additive for sale for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. During the design of DMS Seals piston seal additive , advanced equipment is used, including CAD, cutting plotter, cutting machine, and sewing machine, which are conducted by specifically skilled workers. DMS Seals implements and optimizes its quality control systems
2. Except our professional service, our piston seal additive is also great in its quality. DMS Seals provides professional design and production of high-grade o-ring seals
3. The product features safety during operation. The electrical system and its relevant accessories all meet the requirements of IEC general standards. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management

1. Installation Recommendation

2. Installation Sizes

Bore Diameter D_N H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d₁ h9	L₁+0.2	R₁	10MPa	20MPa	40MPa	d₂
8-14.9	15-39.9	-	D_N-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	D_N-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	D_N-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	D_N-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	D_N-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	D_N-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	D_N-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	D_N-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

D_N H9

d₁ h9

L₁+0.2

3.1

5.1

7.1

2.2

GSF8*3.1*2.2

GSF10*5.1*2.2

GSF12*7.1*2.2

2.90*1.78

4.80*1.8

6.70*1.8

9.1

10.1

7.5

2.2

3.2

GSF14*9.1*2.2

GSF15*10.1*2.2

GSF15*7.5*3.2

8.75*1.8

7.59*2.62

8.75*1.8

11.1

8.5

13.1

2.2

3.2

2.2

GSF16*11.1*2.2

GSF16*8.5*3.2

GSF18*13.1*2.2

10.82*1.78

7.59*2.62

12.42*1.78

10.5

15.1

12.5

3.2

2.2

3.2

GSF18*10.5*3.2

GSF20*15.1*2.2

GSF20*12.5*3.2

9.19*2.62

14.00*1.78

12.37*2.62

19.1

16.5

17.5

2.2

3.2

GSF24*19.1*2.2

GSF24*16.5*3.2

GSF25*17.5*3.2

18.77*1.78

15.54*2.62

17.12*2.62

20.5

4.2

3.2

4.2

GSF25*14*4.2

GSF28*20.5*3.2

GSF28*17*4.2

13.87*3.53

20.29*2.62

15.47*3.53

22.5

24.5

3.2

4.2

3.2

GSF30*22.5*3.2

GSF30*19*4.2

GSF32*24.5*3.2

21.89*2.62

26.70*1.78

23.47*2.62
