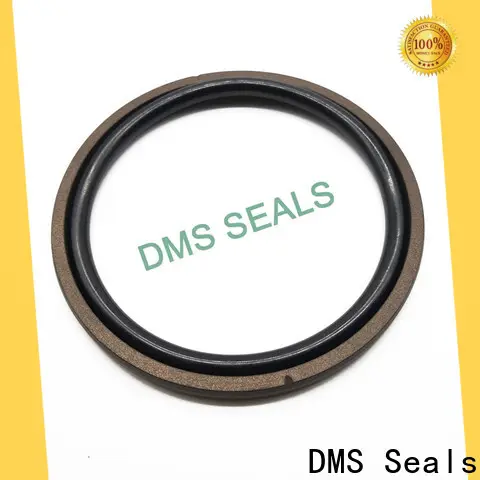

DMS Seals piston seal manufacturers cost for sale 1

DMS Seals piston seal manufacturers cost for sale 2

DMS Seals piston seal manufacturers cost for sale

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

Hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. The manufacturing of DMS Seals involves many departments. These departments include lasting department which deals with trimming heels, polishing and buffing soles. We can support OEM and ODM
2. Dms Seals Technology Co.,limited will continuously make efforts to improve customer experience. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. Regular performance checks have been implemented to ensure the high performance and reliable quality of the product. Seal we produced has applications in a wide range of fields
4. Products are tested by our quality experts in strict accordance with a series of parameters to ensure the quality and performance. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
5. The products have passed the overall quality inspection before they leave the factory. To reduce costs with high-efficiency work is the DMS's purpose

1.Installation Recommendation

undefined

2.Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3.Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

4.Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7
