DMS Seals piston seal manufacturers supplier for light and medium hydraulic systems

Diameter Range:
3-1600mm
Pressure Range:
0-60MPa
Temperature Range:
-30℃+200℃
Speed:
3m/s
Medium:
hydraulic oil, flame retardant liquid, water and others
Inquiry
Company Advantages
1. DMS Seals piston seal manufacturers is designed and crafted as we firmly follow international standards. The high pressure seals have strong wear resistance to hard conditions
2. It is promoted in the field due to strong applicability. We can support OEM and ODM
3. The product meets international standards in all aspects, such as performance, durability, availability and more. DMS Seals' production equipment and test equipment are on the leading level in the industry
4. The product USES the reliable examination instrument to carry on the examination, guarantees the product quality to be reliable, the performance is good. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
5. The product's unparalleled features due to its stable performance and powerful features have been widely praised by customers. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
Installation Recommendation

undefined

Installation Sizes

Groove    Diameter      DN H9

Groove    Diameter

Groove Width

Radius

Radial    Clearance                S max.

O-Ring Cross    Section

X-Ring Seal    Cross Section

Standard    Application

Heavy Duty    Application

d1    h9

L1+0.2

R1

10MPa

20MPa

30MPa

d2

W

40 - 79.9

25 - 140

DN -    10.0

6.3

0.6

0.3

0.2

0.15

2.62

1.78

80 - 132.9

50 - 250

DN -    13.0

8.3

1.0

0.4

0.3

0.15

3.53

2.62

133 - 252.9

100 - 480

DN -    18.0

12.3

1.3

0.4

0.3

0.20

5.33

3.53

463 - 700

425 - 700

DN -    31.0

16.3

1.8

0.5

0.4

0.30

7.00

5.33

Application and properties

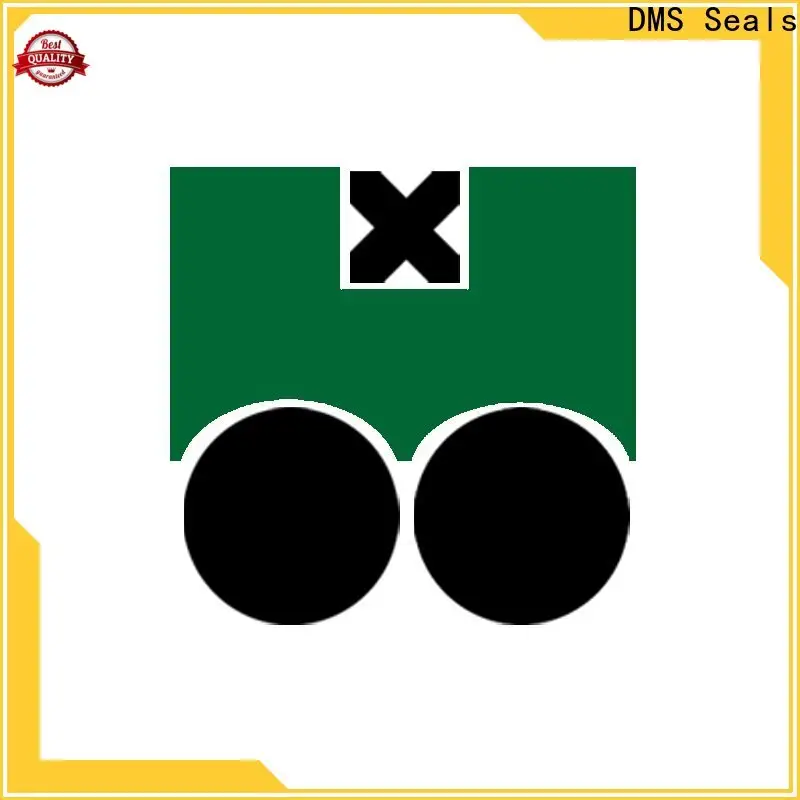

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

X-Ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-30℃+200℃

3 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring  Dimension

d h9

D1  H9

L1+0.2

40
42
45

30
32
35

6.3
6.3
6.3

DAQ2-40*30*6.3
DAQ2-42*32*6.3
DAQ2-45*35*6.3

29.82*2.62
31.42*2.62
34.59*2.62

48
50
52

38
40
42

6.3
6.3
6.3

DAQ2-48*38*6.3
DAQ2-50*40*6.3
DAQ2-52*42*6.3

37.77*2.62
39.34*2.62
40.94*2.62

55
60
63

45
50
53

6.3
6.3
6.3

DAQ2-55*45*6.3
DAQ2-60*50*6.3
DAQ2-63*53*6.3

44.12*2.62
48.90*2.62
52.07*2.62

65
70
75

55
60
65

6.3
6.3
6.3

DAQ2-65*55*6.3
DAQ2-70*60*6.3
DAQ2-75*65*6.3

53.64*2.62
58.42*2.62
63.17*2.62

80
85
90

67
72
77

8.3
8.3
8.3

DAQ2-80*67*8.3
DAQ2-85*72*8.3
DAQ2-90*77*8.3

66.27*3.53
69.44*3.53
75.79*3.53

95
100
105

82
87
92

8.3
8.3
8.3

DAQ2-95*82*8.3
DAQ2-100*87*8.3
DAQ2-105*92*8.3

78.97*3.53
85.32*3.53
91.67*3.53

110
115
120

97
102
107

8.3
8.3
8.3

DAQ2-110*97*8.3
DAQ2-115*102*8.3
DAQ2-120*107*8.3

94.84*3.53
101.19*3.53
104.37*3.53

125
130
135

112
117
117

8.3
8.3
12.3

DAQ2-125*112*8.3
DAQ2-130*117*8.3
DAQ2-135*117*12.3

110.72*3.53
113.89*3.53
113.67*5.33

140
150
160

122
132
142

12.3
12.3
12.3

DAQ2-140*122*12.3
DAQ2-150*132*12.3
DAQ2-160*142*12.3

120.02*5.33
129.54*5.33
139.07*5.33

undefined
Installation Dimensions
