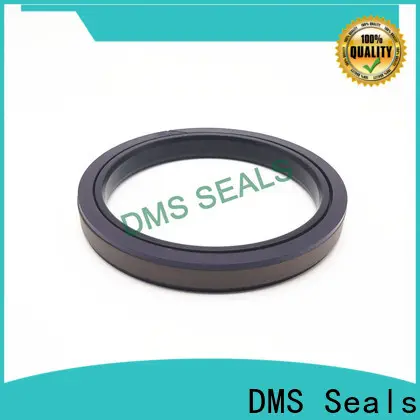

DMS Seals plastic seal manufacturer price for larger piston clearance

Company Advantages
1. DMS Seals is properly manufactured to meet customer's stringent demands.
2. DMS Seals is of exceptional design and high-quality materials.
3. The excellent performance of can create a healthy and comfortable environment for customers.
4. It is highly resistant to yellowing. During the treatment of fabrics, the treating temperature is reasonably controlled to make sure the dying agent is not going to occur oxidative chemical degradation which leads to yellowing.
5. This product is safe enough. Made of hypoallergenic fabrics, it does not contain any form of pollutants or chemicals that are not skin-friendly.
6. This product has strong seam strength. It has passed seam strength testing in which the inspector will stretch along its seams and any edges or openings using a normal force.
7. It has good colourfastness. It goes through high-cost dying processes which enable the colors to hold well for many years.
8. The color of this product is not easy to fade. The residual dyes adhering to the fabric have been removed, making it unaffected by the effects of the water, or strong sunlight.
9. The product is deeply trusted and well accepted by our worldwide customers.
10. This product is hugely recommended by a large number of customers.
11. The product enjoys a good reputation among our customers in the industry.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited is a fantastic partner to manufacture . We bend over backward to help customers reach goals. With strong capacities of R&D, production, and marketing of , Dms Seals Technology Co.,limited has been maintaining its dominance in the market. Dms Seals Technology Co.,limited was founded years ago and quickly became one of the leading manufacturers of in China Over the years, Dms Seals Technology Co.,limited has been putting efforts on providing high-quality and innovative , which sets us apart from the competition.
2. We have a team of R&D experts dedicated to constantly developing the product range. They ensure that the products are up to date with the latest technology. The plant of DMS Seals has advanced machines and professional testing equipment. In order to improve the quality of plastic seal manufacturer , Dms Seals Technology Co.,limited has established a professional R&D base. Our factory has a complete set of production management and quality control system to guide the whole production process. This absolutely will help increase the whole productivity and regulate the operation.
3. is the eternal tenet that Dms Seals Technology Co.,limited is always pursuing . Inquire now! Dms Seals Technology Co.,limited would like to make friends with our customers and bring more benefits for them. Inquire now! By applying into industrial rubber seal , DMS Seals has won much appreciation. Inquire now! Dms Seals Technology Co.,limited will set higher goals for itself in further development. Inquire now! Dms Seals Technology Co.,limited will serve our customers heartedly with excellent quality, moderate price and perfect system. Inquire now!

DMS Seals plastic seal manufacturer price for larger piston clearance
