DMS SEALS TECHNOLOGY CO.,LIMITED

The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

Mail to: sales@dmsseals.com tel:+86-757-86235767

DMS Seals pneumatic seals online Suppliers for pneumatic equipment 1

DMS Seals pneumatic seals online Suppliers for pneumatic equipment 2

DMS Seals pneumatic seals online Suppliers for pneumatic equipment

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

Hydraulic oil, flame retardant liquid, water and others.

Inquiry

Product Comparison

O-ring Seal has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.Compared with other products in the same category, O-ring Seal has the following competitive advantages.

Application Scope

Dms Seals's Oil Seal Manufacturer is widely used and can be applied to all walks of life.Dms Seals insists on providing customers with one-stop and complete solution from the customer's perspective.

Company Advantages
1. The tech pack for DMS Seals during the designing stage covers several major specifications. They are fabric type, auxiliary materials, colors, style, dimension, tolerance, and stitching requirement.
2. A comprehensive consideration is involved in designing DMS Seals . The correct choice of fabrics, seam technology, stitch workmanship, decision of dyestuff, and other elements are taken into account by professional designers.
3. Comprehensive quality and performance inspection are carried out on DMS Seals . They involve scrutinization of size (thickness, width, length, etc.), appearance defects, moisture absorption, and bacterial resistance.
4. Testings for DMS Seals are done to meet physical and chemical properties requirements for furniture. The product has passed the tests such as stability, strength, aging, colorfastness, and flame retardance.
5. The creation of DMS Seals pneumatic seals online is exquisite. It pairs knowledge of basic furniture design principles such as Balance, Rhythm, and Harmony with practice and experimentation.
6. The product is tested again and again ensuring long service life.
7. The product is of high quality and is ensured to meet international quality standard and customer's expectation.
8. Its service life and performance are greatly optimized and improved.
9. Dms Seals Technology Co.,limited's pneumatic seals online sells well in domestic and foreign markets and enjoy a high status among consumers.
10. The staff in DMS Seals are highly recommended by customers.
11. Dms Seals Technology Co.,limited has a good sense of customer service.
12. Orders are placed at the fastest and most reasonable time at Dms Seals Technology Co.,limited.

1.Installation Recommendation

undefined

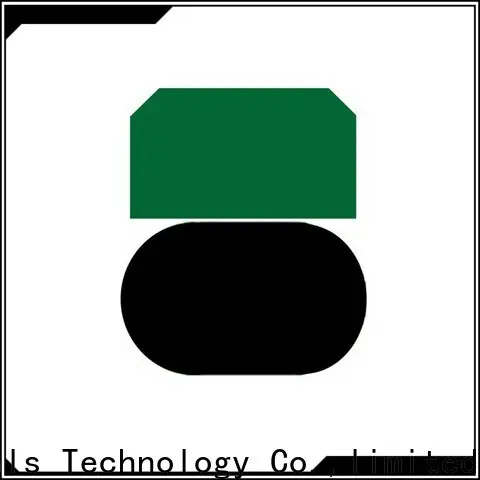

2.Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3.Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

4.Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited is one of the world's most renowned manufacturers of pneumatic seals online . Dms Seals Technology Co.,limited is a quality shaft wiper seal manufacturer. Dms Seals Technology Co.,limited enjoys a high reputation as a professional hydraulic cylinder seal design manufacturer.
2. Dms Seals Technology Co.,limited is equipped with strong research strength, having an R&D team dedicated to developing all types of new rod seal catalogue . We adopt world-advanced technology when manufacturing hydraulic cylinder seals and wipers . All our hydraulic seal design have conducted strict tests. All testing reports are available for our hydraulic cylinder packing material .
3. To be a pioneer in hydraulic rubber seal sector, Dms Seals Technology Co.,limited has been doing our utmost to serve clients. Dms Seals Technology Co.,limited has great ambitions to acquire the primary marketplace of rubber seals for fluid and hydraulic systems . Dms Seals Technology Co.,limited wants to be a reliable long-term supplier of customers piston seals . Get price!

DMS Seals pneumatic seals online Suppliers for pneumatic equipment

pneumatic seals online

Type:

DMS Seals pneumatic seals online Suppliers for pneumatic equipment 8

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
