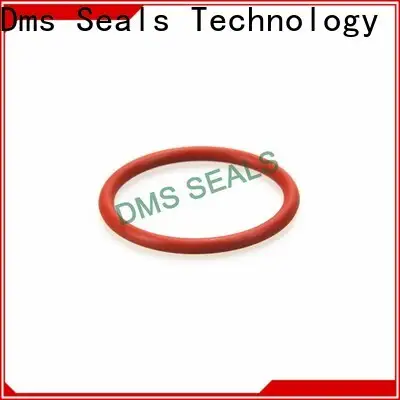

DMS Seals polyurethane white silicone o rings company for sale

Company Advantages
1. DMS Seals is entirely made of high quality raw materials with safety.
2. The complete production management ensures the fine production of DMS Seals white silicone o rings .
3. DMS Seals is made from high-quality materials in a sophisticated manufacturing facility.
4. DMS Seals white silicone o rings shows the finest craftsmanship in the industry as it is elaborately produced by using the industry-leading technology.
5. The product operates reliably under harsh conditions. It is not affected by severe weather conditions such as lightning and strong storms and is not affected by high temperature and humid conditions.
6. This product has excellent softness. The fabric is chemically treated with chemical softener to absorb the hard material on the surface of the fabric.
7. The product has overload protection function for its components. During the design, it is built with a thermal overload relay to guard against the damage caused by long-term overload operation.
8. This product is a hypoallergenic one made from inorganic materials, which is able to reduce allergic reactions to the skin.
9. The product has good heat dissipation performance. Its vents promote forward and backward airflow and keep it cool, which is good for its smooth operation.
10. The product can significantly help consumers with energy bills. It features a reasonable energy rating that will consume little electricity.
11. This product can carry different weights of the human body, and it can naturally adapt to any sleeping posture with the best support.
12. With different colors and graphic designs, this product assists in improving the unique ability of a brand to stand out from the rest of the competitors.

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

Silicone

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Focusing on white silicone o rings , Dms Seals Technology Co.,limited is a diversified and comprehensive enterprise. high pressure o ring seals is a private enterprise with advanced equipment and perfect enterprise management. Characterized by , o ring retailer takes the lead in buy silicone o rings industry. Taking the lead in providing professional service and seal ring suppliers , DMS Seals has won the praises from customers.
2. Modern technology has been constantly introduced into the production of 65mm o ring . Dms Seals Technology Co.,limited has our own 2.25 o ring R&D team and we are fully capable of meeting your requirements. Thanks to the efforts of skilled technicians, o rubber received more praise. All DMS Seals products are produced under the supervision of our quality control team.
3. In every detail of the work, Dms Seals Technology Co.,limited follows the highest ethical standards. Inquire now! We work with our suppliers to educate and motivate them to deliver higher sustainability options and standards and to understand sustainable travel behavior. We strictly comply with the basic behavioral principles of business ethics in the relations with our shareholders, customers, suppliers, employees, local communities, and the environment. Inquire now! We are convinced that our long-term success depends on our capacity to deliver sustainable value to our stakeholders and to wider society. Through our integrated leadership approach, we strive to become an even more sustainable company and maximize the positive impact we can have. The goal of Dms Seals Technology Co.,limited is to build a brand name through excellent quality and mature after-sales service. Inquire now!

DMS Seals polyurethane white silicone o rings company for sale

white silicone o rings

Type:
