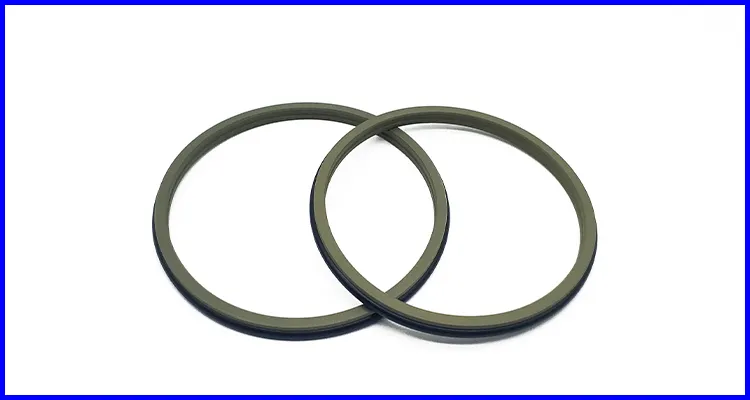

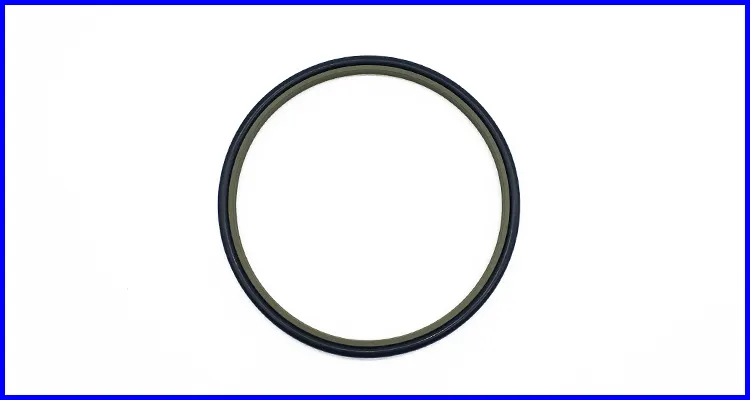

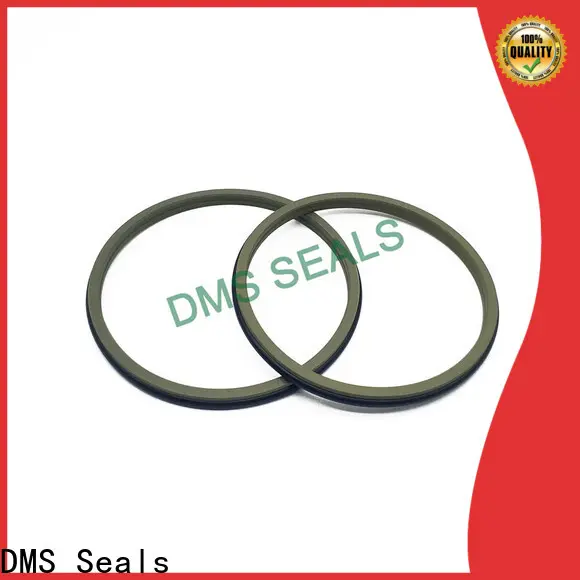

DMS Seals professional wiper chart manufacturer for agricultural machinery

Company Advantages
1. wiper chart is a result of Chinese workmanship – from design engineering through to fabrication. Its production only relies on highly qualified staff and on state-of-the-art facilities. DMS Seals implements and optimizes its quality control systems
2. Manufactured by Dms Seals Technology Co.,limited, wiper chart has quality assurance. Seal we produced has applications in a wide range of fields
3. Detailed inspection is implemented to ensure quality before mass manufacturing. We have developed solutions of the sealing of special working condition
4. Through a thorough quality inspection, the product is guaranteed to be defect-free. The high pressure seals have strong wear resistance to hard conditions

In the design and use of the dust ring, the most important control parameters are the contact pressure and contact angle of the dust ring. An appropriate amount of lip interference is the premise to meet the appropriate contact pressure and angle, otherwise it will lose the dust effect or cause serious wear of the dust ring.

Sealing function of dust ring:

An oil film is adhered to the surface of the cylinder piston rod. Generally, there are always dust or sand particles in the place where the oil cylinder is used. These dust and sand particles will be brought into the oil cylinder when they are bonded with the oil film on the surface of the piston rod. Scratching the lip of the lip seal ring on the piston rod or the surface of the piston rod will cause medium leakage. Therefore, it is necessary to set a dust ring on the outside of the piston rod seal ring near the end face of the cylinder barrel.

The dust ring is installed in the groove. Because there is a certain amount of interference between the lip of the dust ring and the piston rod, the lip of the dust ring is close to the surface of the piston rod.

When the piston rod moves back and forth, the dust and sand adhering to the surface of the piston rod are removed by the dust ring. There is a certain clearance between the right section of the dust ring lip and the piston rod, which can reduce the friction resistance between the dust ring lip and the piston rod.

NO.	SIZE	NO.	SIZE
1	GSZ2-20*26.8*5	28	GSZ2-120*128.8*6
2	GSZ2-22*28.8*5	29	GSZ2-125*133.8*6
3	GSZ2-25*31.8*5	30	GSZ2-130*138.8*6
4	GSZ2-30*36.8*5	31	GSZ2-135*143.8*6
5	GSZ2-32*38.8*5	32	GSZ2-140*148.8*6
6	GSZ2-35*41.8*5	33	GSZ2-145*153.8*6
7	GSZ2-36*42.8*5	34	GSZ2-150*158.8*6
8	GSZ2-37*43.8*5	35	GSZ2-160*168.8*6
9	GSZ2-40*46.8*5	36	GSZ2-170*178.8*6
10	GSZ2-42*48.8*5	37	GSZ2-180*188.8*6
11	GSZ2-45*51.8*5	38	GSZ2-190*198.8*6
12	GSZ2-50*56.8*5	39	GSZ2-200*208.8*6
13	GSZ2-55*61.8*5	40	GSZ2-210*218.8*6
14	GSZ2-56*62.8*5	41	GSZ2-220*228.8*6
15	GSZ2-60*66.8*5	42	GSZ2-230*238.8*6
16	GSZ2-63*69.8*5	43	GSZ2-240*248.8*6
17	GSZ2-65*73.8*6	44	GSZ2-250*258.8*6
18	GSZ2-70*78.8*6	45	GSZ2-260*272.2*8.4
19	GSZ2-75*83.8*6	46	GSZ2-280*292.2*8.4
20	GSZ2-80*88.8*6	47	GSZ2-300*312.2*8.4
21	GSZ2-85*93.8*6	48	GSZ2-320*332.2*8.4
22	GSZ2-90*98.8*6	49	GSZ2-350*362.2*8.4
23	GSZ2-95*103.8*6	50	GSZ2-360*372.2*8.4
24	GSZ2-100*108.8*6	51	GSZ2-370*382.2*8.4
25	GSZ2-105*113.8*6	52	GSZ2-400*412.2*8.4
26	GSZ2-110*118.8*6	53	GSZ2-440*456*11
27	GSZ2-115*123.8*6	54	GSZ2-480*496*11

Company Features
1. Based on the cornerstone of , DMS Seals's manufactured wiper chart has been paid more attention than before.
2. DMS Seals aims to be a professional poly u seal manufacturer who can offer the best service. Ask online!
