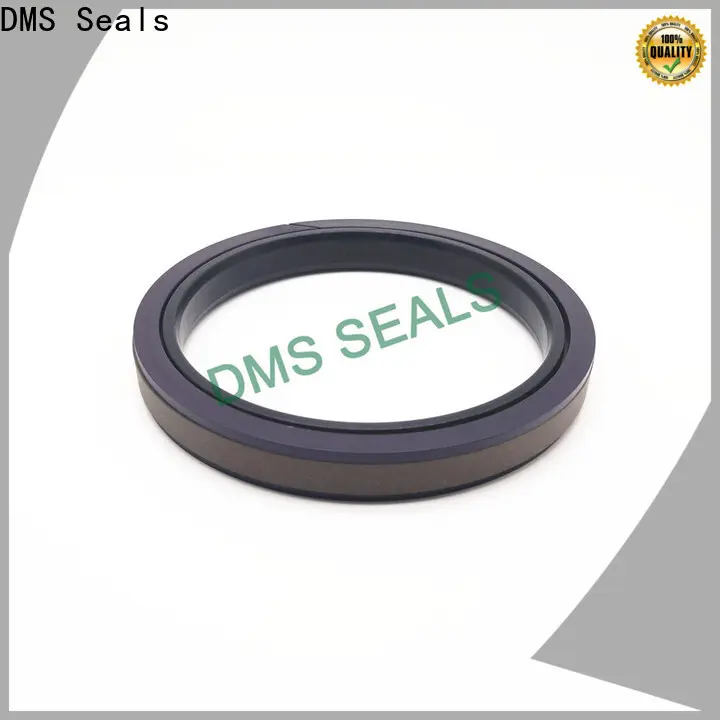

DMS Seals Quality gaco seals supplier for larger piston clearance

Company Advantages
1. The entire supply chain of DMS Seals is quality ensured, from fiber farming, production, processing, packaging to distribution.
2. The tests for DMS Seals gaco seals supplier have been conducted using state-of-the-art testing machines. These tests include vibration and shock testing, climatic and salt testing, noise and vibration testing, etc.
3. DMS Seals 's design takes into account the use of color. This is decided by fashion professionals who understand color psychology and chemistry.
4. The design of DMS Seals takes into account many factors. It includes statics, dynamics, the strength of materials, vibrations, reliability, and fatigue.
5. This product features good temperature resistance. It is not easy to deform and to be out of shape even it is exposed to scorching sunlight.
6. The product produces no side effects. It is clinically tested to be free from any harmful substances that would probably pose potential risks to people.
7. The product features UV resistance. The fabric of this product is not prone to ultraviolet damage caused by excessive exposure to sunlight.
8. This product is ultra-hygienic. Before its shipping, it has to go through the disinfection and sterilization treatment to kill any contaminant.
9. It has the advantage of corrosion resistance. The product can work stably in harsh conditions such as acid-base and mechanical oil environment.
10. DMS Seals is well-known for its high quality and best price for gaco seals supplier .
11. The service assurance is also an important factor for DMS Seals to stand out in the market.
12. Dms Seals Technology Co.,limited will continuously make efforts to improve customer experience.
13. Focusing on the improvement of customer service is effective to improve the growth of DMS Seals.
14. Dms Seals Technology Co.,limited has expanded exports by fully using its sales network.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Since inception, Dms Seals Technology Co.,limited has endeavored to manufacture high-quality . We provide products with an outstanding performance both domestically and internationally. Dms Seals Technology Co.,limited is a Chinese supplier of quality . We provide rapid, reliable and cost-effective manufacturing support. Dms Seals Technology Co.,limited is a manufacturing company based in China. We have been providing quality throughout our region and beyond. Dms Seals Technology Co.,limited takes superiority in the manufacturing of . We have already enhanced competence in today's fierce market competition.
2. To achieve technology innovation, Dms Seals Technology Co.,limited has introduced professional technicians and advanced equipment. Dms Seals Technology Co.,limited possesses tremendous technology and excellent manufacturing equipment. Dms Seals Technology Co.,limited brings together outstanding technology and production personnel. DMS Seals pays a lot of attention to the quality of gaco seals supplier .
3. DMS Seals has a great dream to become a global manufacturer and wholesaler. Get an offer! It's a great aim for DMS Seals to be target supplier among the market. Get an offer! DMS Seals aims to create DMS Seals as the first brand of automotive seal manufacturers industry. Get an offer! DMS Seals believes that the popularity of window seal suppliers depends on its high quality and professional service. Get an offer! It’s DMS Seals's principle in business 'to honor the contract and keep our promise'. Get an offer!
