DMS Seals Quality gearbox seals manufacturers price for piston and hydraulic cylinder

Company Advantages
1. DMS Seals has been tested in terms of many aspects. They mainly include mechanical structure, the performance of components, and statics&dynamics effect.
2. The material used in DMS Seals has the characteristics of high light transmittance and good flame retardant performance, which is not only effective but also safe to use.
3. DMS Seals has proper design and engineering. It is an outcome of our qualified architects, designers, and structural engineers using their aptitude.
4. gearbox seals manufacturers is applied to for its advantages of .
5. reflects the high quality of gearbox seals manufacturers .
6. The actual use shows that gearbox seals manufacturers has good properties such as .
7. Our gearbox seals manufacturers are of high quality with competitive price.
8. DMS Seals has reached its peak in gearbox seals manufacturers industry for its good quality service and quality assurance.
9. The strong economic strength of DMS Seals allows to carry out strict quality assurance.

1. Installation Recommendation

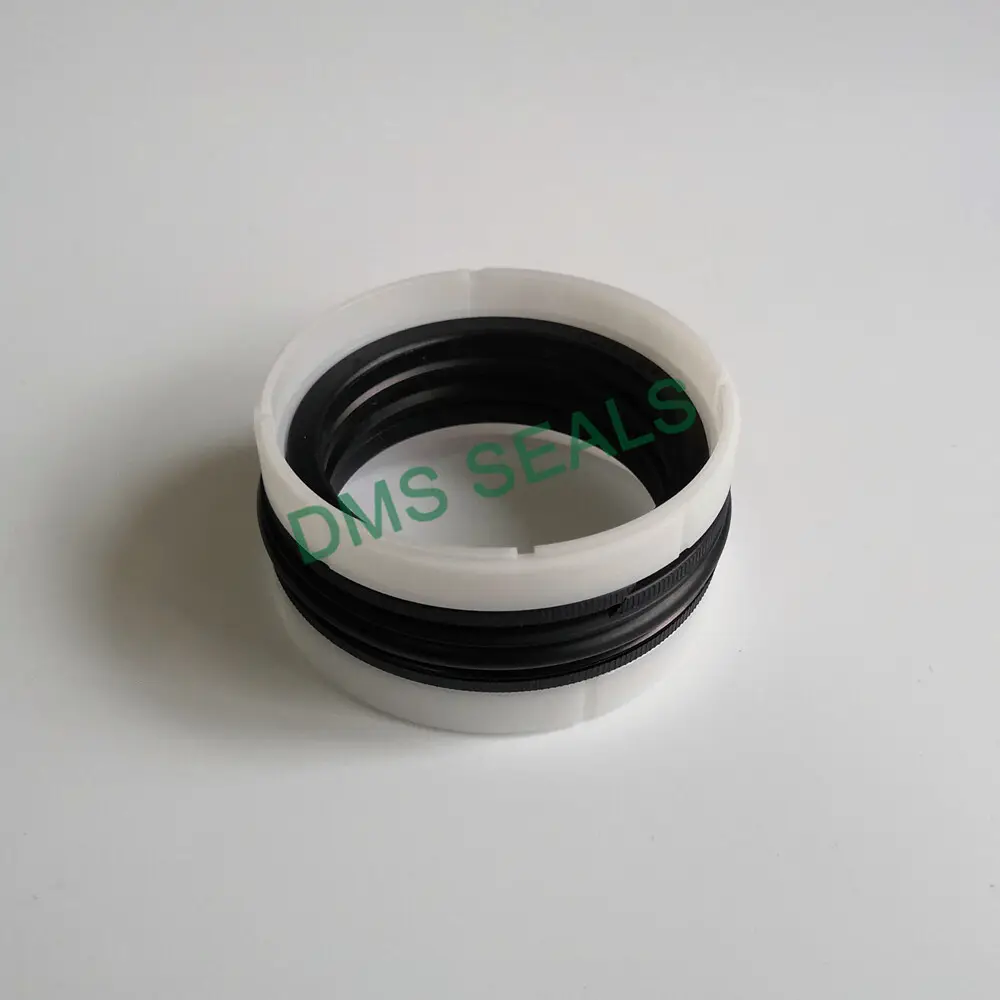

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1

Company Features
1. Dms Seals Technology Co.,limited focuses on the design, manufacture, sales, and service of gearbox seals manufacturers . Dms Seals Technology Co.,limited leads the development of cap seal manufacturer industry. The DMS Seals brand is now more professional than many other SMEs in China.
2. We put great emphasis on technology of crane mechanical seals . Whenever there is any problems for our piston rings by size , you can feel free to ask our professional technician for help. Our advanced machine is able to fabricate such rubber seal round with features of [拓展关键词/特点]. We have the capability of researching and developing state-of-the-art technologies of shaft seals for pumps . The cutting-edge technology adopted in sunny oil seal manufacturer helps us win more and more customers.
3. Dms Seals Technology Co.,limited has established a mature after-sales service system to better serve every customer. Get info! We can promise high quality and excellent service for . Get info! We always make full preparations for customers. Get info! Our business philosophy is simple and timeless. We work closely with clients to find a perfect combination of products and services that provide a comprehensive balance of performance and pricing effectiveness. We constantly invest in modernizing production facilities and office space, with a view to enhancing efficiency and further reducing our environmental impact.

DMS Seals Quality gearbox seals manufacturers price for piston and hydraulic cylinder

gearbox seals manufacturers

Type:
