DMS Seals rod seal design factory price for sale

Company Advantages
1. under DMS Seals is obviously more aesthetically appealing than other brands.
2. The material of rod seal design can be recycled for second use.
3. The packing for rod seal design is simple but beautiful.
4. Using the concept of , Our products strongly show .
5. In order to control the influence of , our engineers especially design rod seal design .
6. rod seal design can stand all kinds of strict tests before putting into use.
7. rod seal design  has the features of . Measurements show that it is .
8. The product has gained great popularity in the market and enjoys a vast market application.
9. The market prospect of this product is promising because it can bring huge economic benefits and is favored by customers.
10. The product has good stability and reliability and long service life.
11. This product has many competitive advantages and is widely used in this field.

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

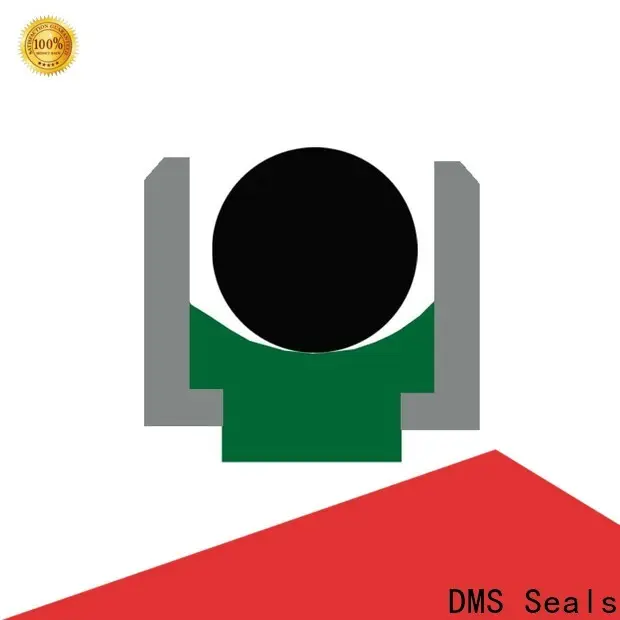

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. As a domestic influential enterprise specializing in the production and supply of , Dms Seals Technology Co.,limited keeps growing and expanding year by year. Dms Seals Technology Co.,limited has achieved a stable position in the market place. We are a professional manufacturer of . With years of profound knowledge and experience of , Dms Seals Technology Co.,limited is situated in the front row in the domestic market. Dms Seals Technology Co.,limited has maintained a record of rapid growth and expansion since the establishment and has become a respected manufacturer of . Dms Seals Technology Co.,limited has been one of the leaders in manufacturing . We are recognized for our strong capacity for developing, designing, and manufacturing.
2. Over the years, we have gained a new revenue potential by making our business go global. We have expanded the overseas market in America, Australia, Germany, and so on. Our factory boasts a high-efficient production line that allows for material selection, machining, and inspection of finished products. This line can operate 24 hours a day to guarantee the output. Our factory is located in a favorable geographic position and convenient transportation. This enables us to operate our business competently, providing fast delivery services that meet customers’ requirements. We are backed by a talented technical team. They leverage their heritage in technical leadership to help ensure that our products meet the highest levels of quality and performance. We continue to invest heavily in new technologies and facilities. The wide range of existing production equipment gives us the flexibility needed to provide the most viable and professional products possible.
3. Dms Seals Technology Co.,limited is market-oriented and tries to comply with international standards. Inquire online! Dms Seals Technology Co.,limited will continue to follow the purpose of 'for the sake of customers, provide high-quality products'. Inquire online! Dms Seals Technology Co.,limited is a company that is committed to becoming one of the most popular rod seal design companies. Inquire online!
