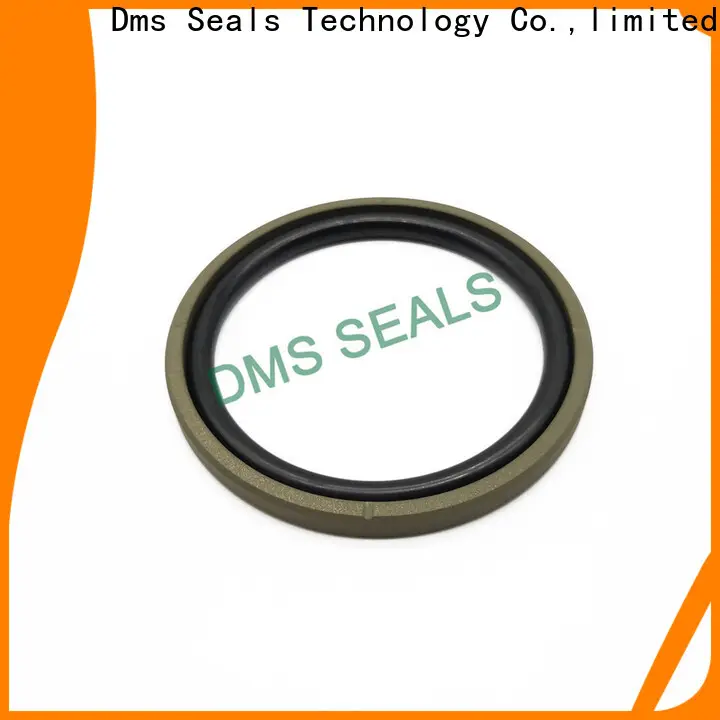

DMS Seals rod seal tool glyd ring for sale

Company Advantages
1. DMS Seals is rigorously tested from the beginning of the production to the finished product so as to achieve a better barbequing effect.
2. DMS Seals is innovatively designed by our dedicated designers who have the wood selection ideas to fit the need of the customer's desired timber.
3. DMS Seals is checked by conducting on-site testing including marking and vulcanization tests for rubber outsoles, rocking tests, fabric testing and verification of special features like waterproofing and stain resistance.
4. The integration of and makes a popular rod seal tool among customers.
5. The manufactured rod seal tool has such merits of as to be used in area.
6. On account of multiple advanced technology, rod seal tool now stands out in this industry.
7. The product is now widely demanded across various industries, having an extensive applications.
8. This product is widely used in the market for its excellent economic value and high cost performance.
9. The product is highly demanded in the market, showcasing its broad market prospect.
10. Due to these features, this product is used in various industrial applications.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited has become the largest production base for rod seal tool in Pearl River Delta. Manufacturing facilities of Dms Seals Technology Co.,limited are located worldwide. DMS Seals is favored by many users for its hydraulic piston seals suppliers . Dms Seals Technology Co.,limited is devoted to developing new products, most of which are pioneers in the China market.
2. Dms Seals Technology Co.,limited has a professional product development team and management team. Dms Seals Technology Co.,limited's product development team is familiar with the quality requirements of various piston seal hydraulic products. Studying on the application of independent technology innovation will also contribute to the dominant position of DMS Seals.
3. We always maintain professionalism in every production process hydraulic o rings suppliers . Inquire! We do things efficiently and responsibly in terms of the environment, people and the economy. The three dimensions are critical throughout our value chain, from procurement to end product. Dms Seals Technology Co.,limited has established a mature after-sales service system to better serve every customer. Inquire! Since our inception, we always strive to improve the lives of consumers worldwide by offering them branded products with superior quality and value. Inquire!
