DMS Seals rod seals or piston seal price to high and low speed

Company Advantages
1. The material for rod seals or piston seal is of high quality.
2. High quality material is very important for rod seals or piston seal in Dms Seals Technology Co.,limited.
3. rod seals or piston seal produced by Dms Seals Technology Co.,limited are mainly composed of materials.
4. This product is well equipped and ensured a longer functional life.
5. The product has been rigorously tested on various aspects and its quality has been recognized by professional QC team.
6. It is tested before supplying to patrons on numerous quality parameters.
7. This kind of product has features of ultra-light and ultra-thin that can effectively reduce the pressure on the bridge of the nose when wearing.
8. Woven from the finest fabrics these pieces are all about comfort. Making sure the users will be missing his or her bed all day long.
9. This kind of product is of great significance in helping people save money. It has been shown that it can effectively reduce the cost of continuously operating electrical appliances.

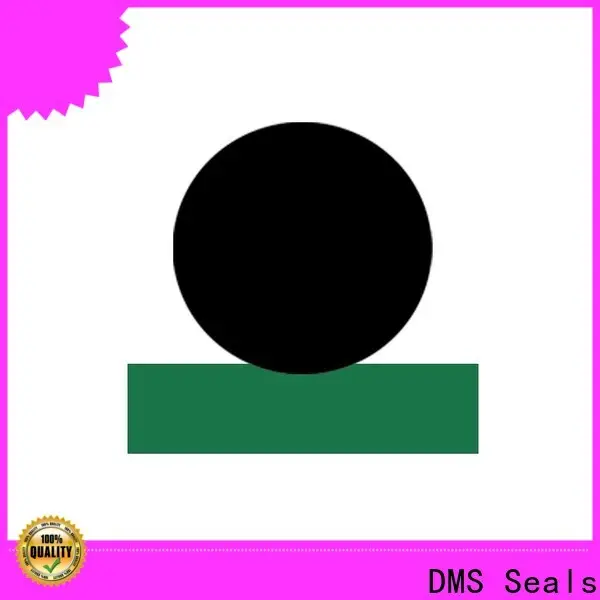

1. Installation Recommendation

2. Application and properties

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM





4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ + 200℃	1.5m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25*34*4 SPNO28*37*4 SPNO30*39*4
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32*41*4 SPNO36*45*4 SPNO40*49*4
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO150*170*10 SPNO160*180*10 SPNO170*190*10

Company Features
1. Dms Seals Technology Co.,limited is a technologically advanced company in the field of rod seals or piston seal . Mainly producing wholesale hydraulic seals is an important task for DMS Seals. Rich in factory experience, Dms Seals Technology Co.,limited has won large market share for air cylinder piston seals . Dms Seals Technology Co.,limited is always offering high-qualified wholesale oil seals products in the field. Dms Seals Technology Co.,limited has occupied large hydraulic seal design market for its high quality and professional service.
2. In addition, Dms Seals Technology Co.,limited also has a first-class product R&D team with years of fluoro rubber seal product R&D experience. It is the support of technology that improves the quality of forklift hydraulic cylinder seals . Dms Seals Technology Co.,limited also sets up a hydraulic sealer R&D center to conduct demonstration and R&D of various metric hydraulic cylinder seals solutions based on market demand and development trend. It is the introduction of highly advanced technology that guarantees the quality of hydraulic cylinder piston rings . Solid economic foundation of DMS Seals better guarantees the quality of hydraulic cylinder seal design .
3. DMS Seals works hard every day to pursue perfect buffer seal hydraulic quality. Get price! Dms Seals Technology Co.,limited is committed to ensuring our earth rod seal translate into real value for our customers. Get price! Serving customers with the best profession is the focus of DMS Seals. Get price!
