DMS Seals rubber gasket design guide for cranes

Company Advantages
1. The design of DMS Seals implements the principle of 'practical, economic, aesthetic, innovative'. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
2. Dms Seals Technology Co.,limited will provide best service for all of our customers. Seal we produced has applications in a wide range of fields
3. With its fabric's breathability and high functionality, this product is the ideal solution for warm sleep, especially since it provides excellent heat control and high moisture-absorbing level. The high pressure seals have strong wear resistance to hard conditions
4. This product combines practicality, aesthetics, style and craftsmanship together. It will promote a bedroom into a relaxing retreat. Quality control of the seals is the basis for DMS Seals

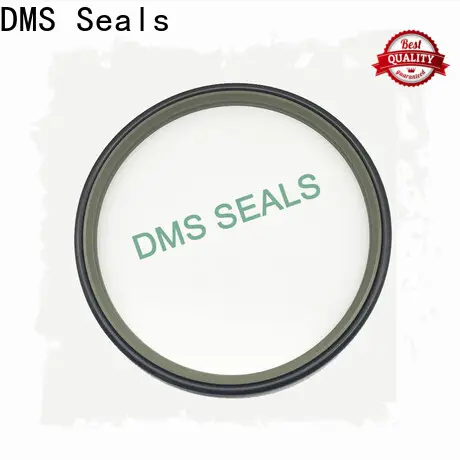

The hole is circled with a T-shaped lattice DPT1

Scope of application

Hydraulic system, reciprocating motion, under high-pressure, low-pressure and high-frequency working conditions, the heavy-duty two-way piston seal is very excellent. It is suitable for long and short stroke, and large piston clearance in a wide range of fluids and high temperature occasions. For example, it is used in injection molding machines, bulldozers, agricultural machinery, presses and other machine tools.

Standard materials

Sealing ring: filled with polytetrafluoroethylene PTFE

0-ring: NBR or FKM

characteristic

-Good dynamic and static sealing performance

-Large extrusion clearance is allowed, depending on the application, so the processing cost can be reduced

-Due to the large extrusion gap, it can also be safely used in dirty media

-Small friction, no crawling

-The groove is simple and can be used for integral piston

-Since many kinds of materials can be used, it has strong adaptability to working conditions

-Hydraulic oil suitable for new environmental protection and safety

NO.	SIZE	NO.	SIZE	NO.	SIZE
1	DPT1-20*27.6*4.2	29	DPT1-130*142*8.1	57	DPT1-400*416*11.5
2	DPT1-25*32.6*4.2	30	DPT1-135*147*8.1	58	DPT1-420*444*15.5
3	DPT1-28*35.6*4.2	31	DPT1-140*156*11.5	59	DPT1-450*474*15.5
4	DPT1-30*37.6*4.2	32	DPT1-145*161*11.5	60	DPT1-470*494*15.5
5	DPT1-32*39.6*4.2	33	DPT1-150*166*11.5	61	DPT1-480*504*15.5
6	DPT1-35*42.6*4.2	34	DPT1-155*171*11.5	62	DPT1-500*524*15.5
7	DPT1-36*43.6*4.2	35	DPT1-160*176*11.5	63	DPT1-520*544*15.5
8	DPT1-40*48.8*6.3	36	DPT1-165*181*11.5	64	DPT1-550*574*15.5
9	DPT1-42*50.8*6.3	37	DPT1-170*186*11.5	65	DPT1-585*609*15.5
10	DPT1-45*53.8*6.3	38	DPT1-175*191*11.5	66	DPT1-600*624*15.5
11	DPT1-50*58.8*6.3	39	DPT1-180*196*11.5	67	DPT1-620*644*15.5
12	DPT1-55*63.8*6.3	40	DPT1-190*206*11.5	68	DPT1-635*659*15.5
13	DPT1-56*64.8*6.3	41	DPT1-200*216*11.5	69	DPT1-675*702*18
14	DPT1-60*68.8*6.3	42	DPT1-210*226*11.5	70	DPT1-690*717*18
15	DPT1-63*71.8*6.3	43	DPT1-220*236*11.5	71	DPT1-700*727*18
16	DPT1-65*73.8*6.3	44	DPT1-230*246*11.5	72	DPT1-710*737*18
17	DPT1-70*82.2*8.1	45	DPT1-240*256*11.5	73	DPT1-750*777*18
18	DPT1-75*87.2*8.1	46	DPT1-250*266*11.5	74	DPT1-780*807*18
19	DPT1-80*92.2*8.1	47	DPT1-260*276*11.5	75	DPT1-800*827*18
20	DPT1-85*97.2*8.1	48	DPT1-265*281*11.5	76	DPT1-810*837*18
21	DPT1-90*102*8.1	49	DPT1-270*286*11.5	77	DPT1-820*847*18
22	DPT1-95*107*8.1	50	DPT1-280*296*11.5	78	DPT1-830*857*18
23	DPT1-100*112*8.1	51	DPT1-290*306*11.5	79	DPT1-850*877*18
24	DPT1-105*117*8.1	52	DPT1-300*316*11.5	80	DPT1-870*897*18
25	DPT1-110*122*8.1	53	DPT1-330*346*11.5	81	DPT1-880*907*18
26	DPT1-115*127*8.1	54	DPT1-350*366*11.5	82	DPT1-890*917*18
27	DPT1-120*132*8.1	55	DPT1-370*386*11.5	83	DPT1-900*927*18
28	DPT1-125*137*8.1	56	DPT1-380*396*11.5	84	DPT1-910*937*18

Company Features
1. DMS Seals focuses on producing rubber gasket design guide and serving customers' businesses.
2. Our factory is placed in a potentially satisfactory location. It is easily accessible to the airports and ports within an hour. This helps minimize the unit cost of production and distribution for our company. Besides, our customers don't have to wait too much time for the goods.
3. Dms Seals Technology Co.,limited adheres to the concept of and creates the ultimate quality of . Contact!
