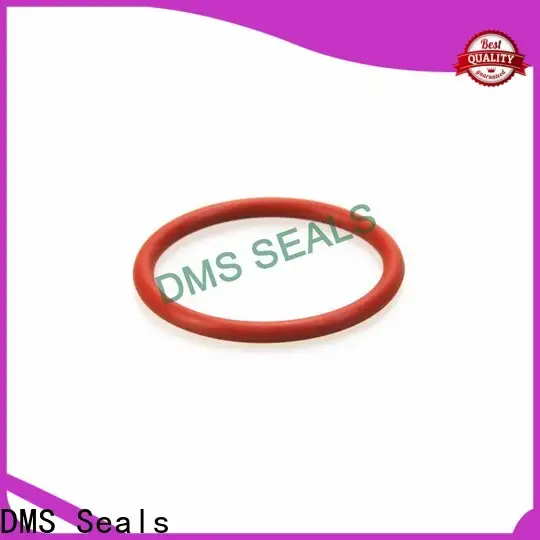

DMS Seals rubber o rings large supply in highly aggressive chemical processing

Company Advantages
1. A comprehensive consideration is involved in designing DMS Seals . The correct choice of fabrics, seam technology, stitch workmanship, decision of dyestuff, and other elements are taken into account by professional designers.
2. The design of DMS Seals is a good mixture of rigor and imagination. It is carried out by designers who have taken attractive details, discreet forms, as well as uniqueness into consideration.
3. A lot of tests for DMS Seals will be carried out. The tests include dimension accuracy, material safety, colorfastness, wearing resistance, moisture-wicking, load-bearing capacity, etc.
4. The product has a built-in light diffuser that illuminates in a concentrated direction to give the user the right amount of brightness.
5. The product stands out for its high energy efficiency. Adopting low energy consumption technology, it only consumes little energy in operation.
6. This product does not generate harmonics that have a great influence on the quality of the illumination. The LED driver circuit and the rectifier filter circuit are all improved.
7. With the huge application prospect, the product is profoundly preferred by our customers.
8. This product has received more popularity around the world.
9. The customer's needs, expectations and satisfaction continue to be achieved with this product.
10. This product is remarkably appreciated among our customers around the world.
11. It is widely recognized that the product has a promising market potential as it enjoys a good reputation in the market.

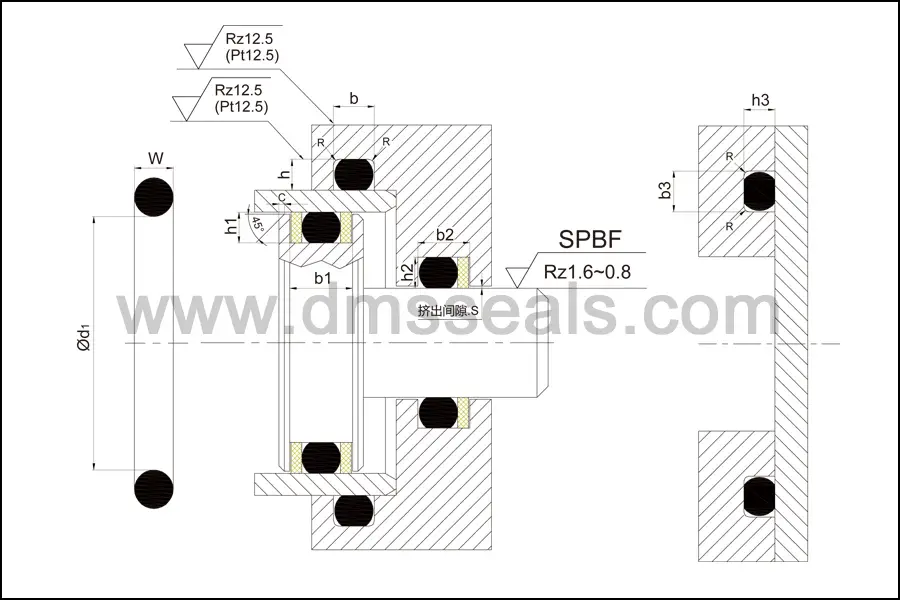

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

Silicone

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. After years of constant efforts, Dms Seals Technology Co.,limited has been a strong enterprise. Dms Seals Technology Co.,limited has its independent R&D and production base to ensure high quality and sufficient supply of rubber o rings large . Dms Seals Technology Co.,limited is a professional soft rubber o rings manufacturer.
2. Through DMS Seals, our customer service team always reveal a sincere and honest attitude towards our customers. All of our exquisite products, including x and o ring , are produced by our advanced machines and skilled technicians. Applying the high technology is conducive to the efficient production of large metal o ring . By absorbing new high-end technologies, DMS Seals has made great strides in technology development.
3. We think highly of our sustainability practices in our business. We have upgraded our capabilities from time to time to meet the environmental and emission norms. We make clear commitments to our customers. We try to ensure that every link in the manufacturing chain works seamlessly, from order generation to final delivery and offer the highest-value products. Our mission is to help our customers become more competitive by manufacturing products in lower-cost according to the highest established quality standards.
