Company Advantages
1. DMS Seals is manufactured using quality raw material and comes in a variety of innovative designs.
2. DMS Seals delivers professional design concepts and advanced production methods.
3. While designing DMS Seals , we uphold the principles of innovation and functionality.
4. Each product is rigorously tested before delivery.
5. We conduct rigorous tests to ensure that our products are defect-free and meet high quality standards.
6. Our professional technical team greatly optimizes the performance of our products.
7. The product quality is reliable, the performance is stable, the service life is long.
8. rubber piston seals is to the taste of overseas markets.
9. After years of development, Dms Seals Technology Co.,limited has won the trust of customers with excellent product performance and service quality.
10. Popularity, good reputation, orientation are three evaluation index norms of DMS Seals image.

Scope of application

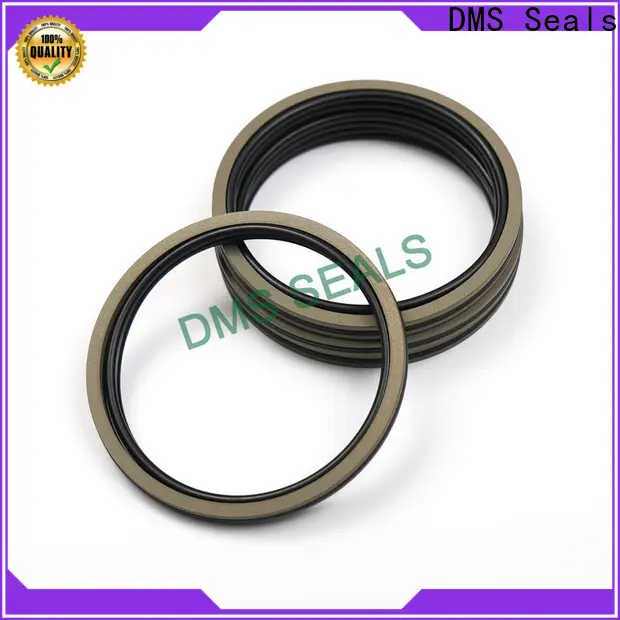

DAQ2 piston seal retains the low friction, high pressure resistance and high speed characteristics of PTFE seals, and has the sealing characteristics of rubber, which is suitable for some occasions with high speed and high pressure and need to maintain pressure.

It can be used as a two-way motion piston accumulator and a sealing element for position control cylinders, clamping cylinders, etc., and can be used in machine tools, presses, rolling mills, shoe machines, piston accumulators, heavy suspension cylinders, etc. Especially recommended for heavy duty and large diameter applications.

 Features and Benefits

1. Good dynamic and static sealing performance;

2. With the function of maintaining pressure, the leakage in the cylinder is small;

3. Good sliding performance, no crawling;

4. Hydraulic fluid (bio-oil) suitable for new environmental protection and safety;

5. Since a wide variety of materials can be used, it has strong adaptability to working conditions;

6. It combines low friction and high elasticity, with double safety;

7. The groove design is simple and the installation space is small. The groove size conforms to ISO 7425/1, and can be interchanged with Glynn, Sterling, etc.;

8. Larger extrusion gap can be allowed, depending on the application, so the processing cost can be reduced;

9. Where two media need to be separated (eg: fluid/fluid or fluid/gas), the gas permeability is low and the sealing efficiency is high.

Item	Specifications
Product Name	Piston Compressor Seal Daq2 Star Double O-Ring Accumulator Sea
Products Category	Hydraulic seals, Oil seals, O-Rings
Material	PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc.
Propeties	High temperature, low temperature, high pressure, low pressure,friction resistance
Sizes	Standard and customize
Medium	Hydraulic oil,  anti-fire fluid, water, gas etc
Application	excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc.

NO.	SIZE	NO.	SIZE
1	DAQ2-40*30*6.3	25	DAQ2-140*122*12.3
2	DAQ2-42*32*6.3	26	DAQ2-150*132*12.3
3	DAQ2-45*35*6.3	27	DAQ2-160*142*12.3
4	DAQ2-48*38*6.3	28	DAQ2-170*152*12.3
5	DAQ2-50*40*6.3	29	DAQ2-180*162*12.3
6	DAQ2-52*42*6.3	30	DAQ2-190*172*12.3
7	DAQ2-55*45*6.3	31	DAQ2-200*182*12.3
8	DAQ2-60*50*6.3	32	DAQ2-210*192*12.3
9	DAQ2-63*53*6.3	33	DAQ2-220*202*12.3
10	DAQ2-65*55*6.3	34	DAQ2-230*212*12.3
11	DAQ2-70*60*6.3	35	DAQ2-240*222*12.3
12	DAQ2-75*65*6.3	36	DAQ2-250*232*12.3
13	DAQ2-80*67*8.3	37	DAQ2-280*262*12.3
14	DAQ2-85*72*8.3	38	DAQ2-300*282*12.3
15	DAQ2-90*77*8.3	39	DAQ2-320*302*12.3
16	DAQ2-95*82*8.3	40	DAQ2-350*332*12.3
17	DAQ2-100*87*8.3	41	DAQ2-400*382*12.3
18	DAQ2-105*92*8.3	42	DAQ2-420*402*12.3
19	DAQ2-110*97*8.3	43	DAQ2-450*432*12.3
20	DAQ2-115*102*8.3	44	DAQ2-480*449*16.3
21	DAQ2-120*107*8.3	45	DAQ2-500*469*16.3
22	DAQ2-125*112*8.3	46	DAQ2-600*569*16.3
23	DAQ2-130*117*8.3	47	DAQ2-700*669*16.3
24	DAQ2-135*117*12.3	48

Company Features
1. Dms Seals Technology Co.,limited has become a key industry-leading manufacturer of . Over the years, we have grown into a very competitive company. Dms Seals Technology Co.,limited has earned a good reputation for designing and manufacturing of in China. We have been regarded as a competitive manufacturer. Dms Seals Technology Co.,limited, a reputable manufacturer of rubber piston seals , has earned a good reputation for designing and manufacturing in the Chinese market. After years of effort, Dms Seals Technology Co.,limited has become a comprehensive company that integrates R&D, manufacturing, and sales of .
2. We have exported the products widely to European, Asian, American, and other regions. At this moment, we have established stable business cooperations with clients from all over the world. Our products sell well in the United States, Canada, Japan, Australia, and many other countries. It is the high quality, together with the attentive services that help us win such a large number of customers. We have put ongoing investment in the latest production facilities. This directly contributes to improving the accuracy and constant quality of products and meeting the needs of our customers. Over the past long years, we have worked with many international brands and retailers to manufacture products. Those experience enabled us to understand customers thoroughly and how to provide services with added values. We have imported a series of cutting edge production facilities. These facilities run smoothly complying with the scientific management system, enabling us to provide satisfactory products.
3. Thanks to the concept of kit seal cylinder , our products have been exported to different countries. Please contact us! DMS Seals has formulated and improved the seals for hydraulic pumps system for safe production in all positions. Please contact us! We are quality-oriented in Dms Seals Technology Co.,limited. Please contact us!

DMS Seals rubber piston seals supply for light and medium hydraulic systems

rubber piston seals

Type:
