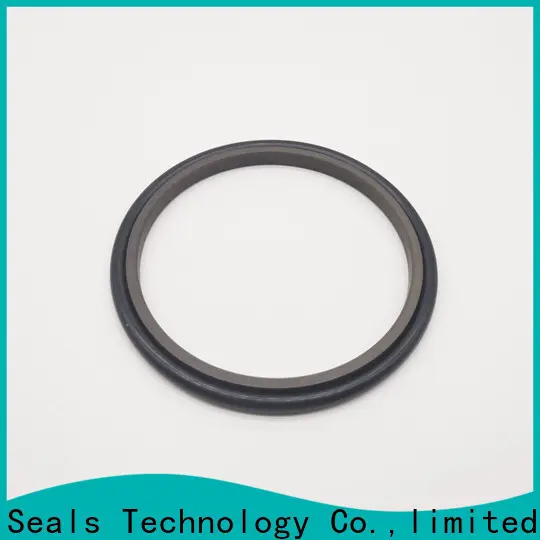

DMS Seals rubber seal ring manufacturers o ring for piston and hydraulic cylinder

Company Advantages
1. under DMS Seals is obviously more aesthetically appealing than other brands.
2. It is rubber seal ring manufacturers that helps gain the popularity among the market.
3. Dms Seals Technology Co.,limited can offer customers all kinds of rubber seal ring manufacturers with different sizes and colors.
4. is the latest hot products in rubber seal ring manufacturers market.
5. The product is of high quality and works exceptionally well.
6. We plan the quality management system and meet the quality object.
7. The product is featured by fine finish, durability and optimal performance.
8. The product has passed all relative quality certificates.
9. It can be designed with woven patterns, often intricate details that add a touch of color and decoration to the room.
10. By choosing this product, one can live a unique lifestyle, enjoy a one-of-a-kind home, as well as minimize the carbon footprint and the effect on the environment.
11. This kind of product with high-quality has a pair of gree lens that is a kind of natural tranquilizer, which can make people around feel better.
12. The product can carry out tasks deemed too dangerous for humans. It has increased operating speed and endurance than humans.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter    dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.

Meet the standard of GB/T 15242.3.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas



6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN h9	D1 H9	L1+0.2
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSI20*27.3*3.2 GSI20*30.7*4.2 GSI22*29.3*3.2	21.89*2.62 25.0*3.53 25.07*2.62
22 24 25	32.7 31.3 32.3	4.2 3.2 3.2	GSI22*32.7*4.2 GSI24*31.3*3.2 GSI25*32.3*3.2	26.57*3.53 26.64*2.62 28.24*2.62
25 26 28	35.7 36.7 35.3	4.2 4.2 3.2	GSI25*35.7*4.2 GSI26*36.7*4.2 GSI28*35.3*3.2	29.74*3.53 29.74*3.53 29.82*2.62
28 30 30	38.7 37.3 40.7	4.2 3.2 4.2	GSI28*38.7*4.2 GSI30*37.3*3.2 GSI30*40.7*4.2	32.92*3.53 32.99*2.62 34.52*3.53
32 32 35	39.3 42.7 42.3	3.2 4.2 3.2	GSI32*39.3*3.2 GSI32*42.7*4.2 GSI35*42.3*3.2	34.59*2.62 36.09*3.53 37.77*2.62
35 36 36	45.7 43.3 46.7	4.2 3.2 4.2	GSI35*45.7*4.2 GSI36*43.3*3.2 GSI36*46.7*4.2	37.69*3.53 39.34*2.62 40.87*3.53
38 38 40	48.7 53.1 50.7	4.2 6.3 4.2	GSI38*48.7*4.2 GSI38*53.1*6.3 GSI40*50.7*4.2	40.87*3.53 43.82*5.33 44.04*3.53
