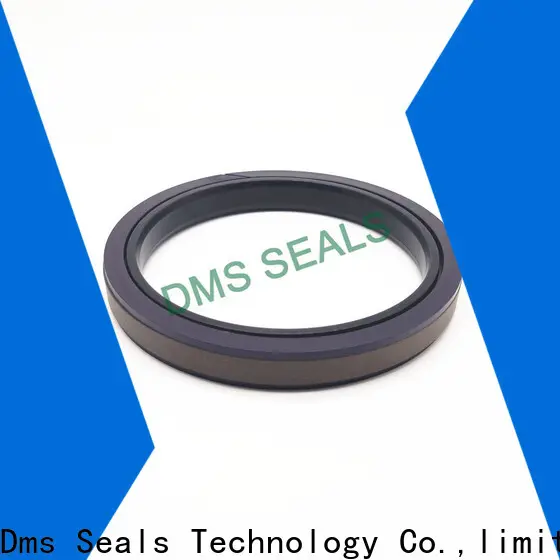

DMS Seals seal caps manufacturer wholesale for piston and hydraulic cylinder

Company Advantages
1. The principle of unity in fashion design is applied well on DMS Seals . It endows the product with design elements in a unique and harmonious way.
2. DMS Seals is produced under advanced technologies, such as composite knitting technology, modern electrostatic nanomesh technology, and textile and printing technology.
3. Different energy conservation technologies are used in the development of DMS Seals . Frequency conversion, suppression of electric surge, or electromagnetic regulation technology has been adopted to make full use of electricity.
4. It is detailed tested by our professional QC team.
5. Its long service life is greatly ensured by the strict testing procedure.
6. The materials of DMS Seals are high-quality with stable properties and good durability.
7. The product has outstanding performance and stable and reliable quality.
8. The product is stable and reliable, therefore, people do not have to worry that there will be any leakage occurs if they use it properly.
9. The product will run for a long time, saving homeowners or business owners the hassle and expense of replacing it.
10. People will gradually find that the product holds up much better over time while maintaining its beauty and natural odor.
11. This product is actually environment-friendly. This is because if people start saving more energy then electric plants will have to work less to produce more energy.
12. The product enhances the overall aesthetic feeling of the bathroom or washroom. It uses color contrast or color consistency to highlight the overall design of the bathroom.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. DMS Seals is well recognized as a premium brand in the seal caps manufacturer segment. As a widely acceptable enterprise, Dms Seals Technology Co.,limited has always concentrated on producing molded seals . Dms Seals Technology Co.,limited is at the top position in the national mechanical seal pump price market.
2. Our factory has established ourself a quality management system on the basis of achieving the ISO 9001 international quality system certification. This offers quality assurance of all products. Over the years of development, our company has established good strategic partnerships with clients all over the world. This is mainly because we have been providing excellent quality products and professional services. Over the years of hard working, we have been maintaining good collaboration with the customers in many fields of the industry. We have been recognized by the vast majority of them for the strong R&D capacity.
3. Helping customers meet or exceed their goals is our number one concern; we are in the business of forming personalized, collaborative partnerships with our customers. Get info! The company acts positively to the sustainable development plan for the environment. Apart from the fact that we have strict control over the production pollution amount, we also encourage customers and people to recycle and reuse their packaging bags or boxes. Dms Seals Technology Co.,limited The company undertakes its social responsibility through a series of business or communities actions. We are active in protecting the local mother river, planting trees, or cleaning the streets. Get info! Our company will continue to strengthen R&D capabilities and invest in expanding production capacity to grow alongside customers. We will strive to continue being a force that pushes the industry forward. Get info!

DMS Seals seal caps manufacturer wholesale for piston and hydraulic cylinder
