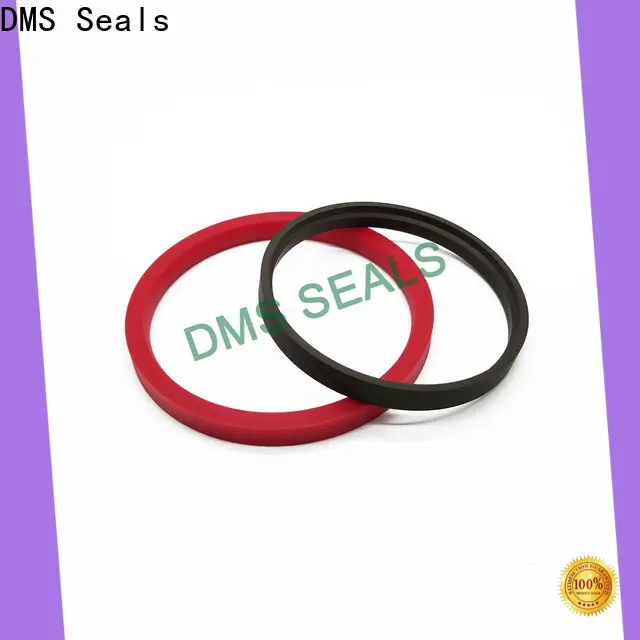

DMS Seals seal king manufacturing supply for larger piston clearance
1. seal king manufacturing mainly contains material. DMS o-ring seal has advanced machines and equipment for its production
2. This product will certainly raise wearers' confidence if not anything else. It helps wearers easily be accepted and mostly look good. We can support OEM and ODM
3. The product features highly stable mechanical properties. Its mechanical components can withstand extreme conditions such as heat or cold temperatures. Seal we produced has applications in a wide range of fields
1. Installation Recommendation
2. Installation Sizes
Rod Diameter | Outer Diameter | Groove Width | Install Chamfer | Radius | Radial Clearance S max. | ||
d f8 | D H8 | L+0.2 | L1 | R1 | 10MPa | 20MPa | 40MPa |
50-69.9 | d+15.0 | 7.5 | 5.0 | 0.4 | 0.5 | 0.4 | 0.3 |
70-149.9 | d+20.0 | 10.1 | 6.0 | 0.4 | 0.7 | 0.5 | 0.4 |
200-244.9 | d+25.0 | 12.5 | 8.5 | 0.4 | 0.8 | 0.6 | 0.5 |
245-519.9 | d+30.0 | 15.0 | 10.0 | 0.8 | 0.9 | 0.7 | 0.6 |
520-769.9 | d+35.0 | 17.5 | 13.0 | 1.2 | 1.0 | 0.8 | 0.7 |
770-1500 | d+40.0 | 20.0 | 15.0 | 1.2 | 1.0 | 0.8 | 0.7 |
3. Application and properties
Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -30℃ +100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
Outer Dia. | Groove Width | Order No. | |
d f8 | D H8 | L+0.2 | |
50 60 70 | 65 75 85 | 7.5 7.5 7.5 | GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5 |
75 80 100 | 95 100 120 | 10 10 10 | GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10 |
110 115 120 | 130 135 140 | 10 10 10 | GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10 |
130 140 145 | 150 160 165 | 10 10 10 | GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10 |
150 160 170 | 170 180 190 | 10 10 10 | GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10 |
175 180 200 | 195 200 220 | 10 10 10 | GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10 |
230 240 250 | 255 265 275 | 12.5 12.5 12.5 | GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5 |
260 265 270 | 285 290 295 | 12.5 12.5 12.5 | GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5 |
280 290 300 | 305 315 325 | 12.5 12.5 12.5 | GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5 |
