DMS Seals seal pneumatics inc company for light and medium hydraulic systems
1. DMS Seals seal pneumatics inc is rich in design styles.
2. The design of DMS Seals seal pneumatics inc offers a stunning blend of aesthetics and practicality.
3. DMS Seals is manufactured using innovative tools and equipment as per the latest market trends & styles.
4. The raw materials of DMS Seals are sourced by our experienced and professional purchasing team. They think highly of the importance of raw materials which is essential to the performance of the product.
5. DMS Seals seal pneumatics inc is rich in style to meet different design needs of customers.
6. The product is safe and contains no toxic substances. It has been tested in terms of material ingredients like Chlorinated phenols and dimethyl fumarate.
7. This product is known for its load-bearing capacity. Made of materials that feature high rigidity, it is not likely to be out of shape.
8. This product has the desired breathability. Its fabric used showcases outstanding abilities with regard to air permeability, water vapor permeability, and water vapor resistance.
9. Dms Seals Technology Co.,limited has high level of innovation inclination and innovation management for seal pneumatics inc .
10. Dms Seals Technology Co.,limited has been awarded with many social honors, achieving good social and economic benefits.
11. As seal pneumatics inc is manufactured by ourselves, Dms Seals Technology Co.,limited can ensure quality meet customers' standards.
12. Owing to our , DMS Seals has been regarded as the most reliable suppliers of seal pneumatics inc in the world.
13. Even refund is possible if you are not satisfied with our seal pneumatics inc after buying.

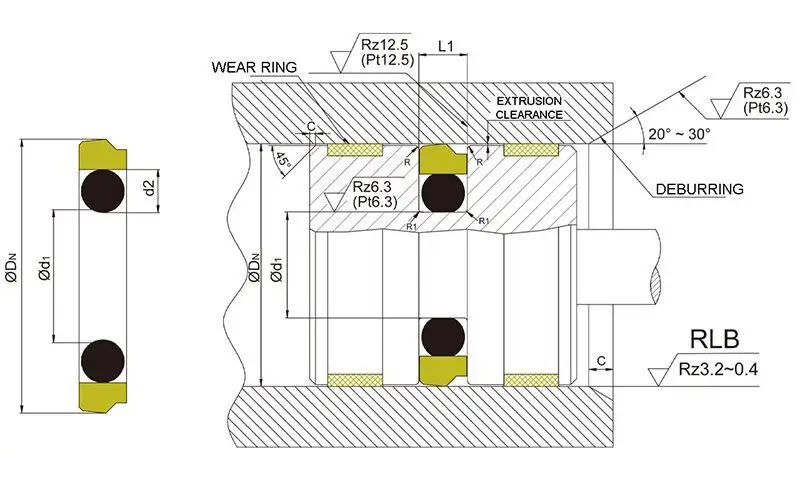

Bore Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
8-16.9 | 17-26.9 | -- | DN-4.9 | 2.2 | 0.4 | 0.30 | 0.20 | 0.15 | 1.78 |
17-26.9 | 27-59.9 | -- | DN-7.3 | 3.2 | 0.6 | 0.40 | 0.25 | 0.15 | 2.62 |
27-59.9 | 60-199.9 | 17-26.9 | DN-10.7 | 4.2 | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
60-199.9 | 200-255.9 | 27-59.9 | DN-15.1 | 6.3 | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
200-255.9 | 256-669.9 | 60-199.9 | DN-20.5 | 8.1 | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
256-669.9 | 670-999.9 | 200-669.9 | DN-24.0 | 8.1 | 1.8 | 0.90 | 0.70 | 0.40 | 7.00 |
670-999.9 | -- | 256-669.9 | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | 1000-2000 | -- | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | -- | 670-999.9 | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
1000-2700 | -- | -- | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
Application and properties
Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.
Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Width | Order No. | O-ring Dimension |
D H9 | d1 h9 | L1+0.2 | ||
9 | 4.1 | 2.2 | GSD9*4.1*2.2 | 3.68*1.78 |
15 | 10.1 | 2.2 | GSD15*10.1*2.2 | 9.25*1.78 |
20 | 12.7 | 3.2 | GSD20*12.7*3.2 | 12.37*2.62 |
27 | 16.3 | 4.2 | GSD27*16.3*4.2 | 15.47*3.53 |
32 | 24.7 | 3.2 | GSD32*24.7*3.2 | 23.47*2.62 |
36 | 25.3 | 4.2 | GSD36*25.3*4.2 | 24*3.53 |
40 | 29.9 | 4.2 | GSD40*29.3*4.2 | 28.17*3.53 |
50 | 39.3 | 4.2 | GSD50*39.3*4.2 | 37.70*3.53 |
55 | 44.3 | 4.2 | GSD55*44.3*4.2 | 44.04*3.53 |
63 | 47.9 | 6.3 | GSD63*47.9*6.3 | 46.99*5.33 |
70 | 59.3 | 4.2 | GSD70*59.3*4.2 | 56.74*3.53 |
80 | 64.9 | 6.3 | GSD80*64.9*6.3 | 62.87*5.33 |
90 | 74.9 | 6.3 | GSD90*74.9*6.3 | 72.39*5.33 |
95 | 74.5 | 8.1 | GSD95*74.5*8.1 | 73*7.0 |
110 | 94.9 | 6.3 | GSD110*94.9*6.3 | 91.44*5.33 |
Company Features
1. Dms Seals Technology Co.,limited enjoys a leading status in the industry of seal pneumatics inc . Dms Seals Technology Co.,limited exerts strong influence in spareage piston seals sector. Dms Seals Technology Co.,limited is a company specializing in diversified double acting seal and is dedicated to enhancing people’s quality of life. The high quality products of DMS Seals contributes to promoting development of the industry.
2. Our factory has established an effective quality management system, including monitoring during the manufacturing process and regular inspection at the end of the production. This system enables our factory to provide qualified products. We possess the advantage of a team of foreign trade talents. Their wealth of product knowledge and analytical skills allow the company to resolve customers’ problems promptly. Dms Seals Technology Co.,limited has won wide fame for its efficient production equipment.
3. Keeping the spirit of hydraulic seals distributors in mind is our precious enterprise culture. Ask online! is the tenet we stick to. Ask online! The service theory of Dms Seals Technology Co.,limited has always been . Ask online!
