DMS Seals seal ring suppliers price for larger piston clearance

Company Advantages
1. DMS Seals seal ring suppliers is precisely designed and developed with utmost care.
2. DMS Seals is of various attractive design styles.
3. The production concept of DMS Seals is innovative and intelligent efficiency.
4. DMS Seals is processed under the strict supervision of experts, using the high-grade technical skills and advanced machines.
5. Using the latest technology throughout the whole production process, DMS Seals seal ring suppliers is fine in workmanship.
6. There are no burrs, spots or knots on its surface. Before the heat pressing process, the wood workpiece will be washed thoroughly to clean all the impurities.
7. The product is not likely to be affected by overcurrent. It is embedded with a thermorelay, an overload protection element, to keep the product from the shock damage of short circuit.
8. The product has stable physical properties in the specific conditions of temperature and pressure. Its physical properties are decided by its crystal structure.
9. This product has excellent vibration resistance. It is not affected by the vibration, deflection or other movements of the rotating shaft.
10. This product helps reduce energy bills. Using such an appliance will definitely cut the spending at home, workplace, or industries.
11. This product is more energy efficient compared to that of other brands. users will definitely benefit from this product to reduce their electricity costs.
12. The product can meet demanding production needs by using little efforts and money. It does not need many workers to operate it.
13. The product is easy to install in different types of machines or equipment. Once it is accurately installed, it's less likely to have a leak problem.

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

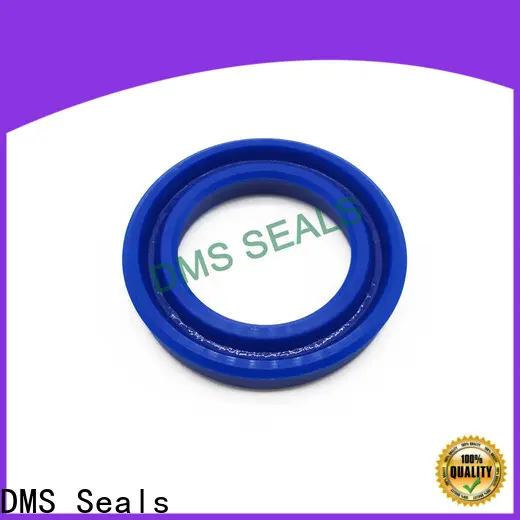

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )
