DMS Seals shaft seals for pumps wholesale for construction machinery
1. DMS Seals shaft seals for pumps is processed in conformity with the highest production standard.
2. The stylish shaft seals for pumps are produced by our design experts.
3. The improved process of DMS Seals shaft seals for pumps reduces existing errors.
4. The raw materials DMS Seals uses are sourced from certified suppliers around the world.
5. This product brings many economic benefits to customers and is believed to be more widely used in the market.
6. The quality inspection of the product is carried out by the QC team. The inspection is not only in line with international standards but meets the requirements of the customers.
7. The product's unparalleled features due to its stable performance and powerful features have been widely praised by customers.
8. The product is made through a process that involves rigorous quality testing, such as inspection of raw materials and finished products.
9. In order to comply with international quality standards, this product has passed strict quality inspection procedures.
10. People can be free of the worry that it will leave any chemical residues on their skin which may cause skin allergy.
11. Since it is able to retain its flexibility, the product is an optimal choice for applying in extreme working environments.
12. The eye-catching and unique design makes it stand out in many of other goods in my gifts shop. I'm surprised my clients love it so much.
Installation Recommendation
Installation Sizes
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radial Clearance S max. | Radius | Cross-Section | ||
Standard Range | Available range | d1 h9 | L1+0.2 | 32MPa | 50MPa | R1 | d2 |
| 8-39.9 | 8-135.0 | DN-4.9 | 2.2 | 0.15 | 0.10 | 0.40 | 1.78 |
| 40-79.9 | 14-250.0 | DN-7.5 | 3.2 | 0.20 | 0.15 | 0.60 | 2.62 |
| 80-132.9 | 22-460.0 | DN-11.0 | 4.2 | 0.25 | 0.20 | 1.00 | 3.53 |
| 133-329.9 | 40-675.0 | DN-15.5 | 6.3 | 0.30 | 0.25 | 1.30 | 5.33 |
| 330-669.9 | 133-690.0 | DN-21.0 | 8.1 | 0.30 | 0.25 | 1.80 | 7.00 |
| 670-999.9 | 670-999.9 | DN-28.0 | 9.5 | 0.45 | 0.30 | 2.50 | 8.40 |
Application and properties
Suitable for sealing with rotating or swinging rods, shafts, pins, rotary joints, etc. It is a rotary sealing ring that can withstand both sides pressure or alternating pressure role of the double acting effect, used in construction machinery, construction machinery and automotive equipment. It can be applied on occasions where piston rod and piston seal are required, low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.

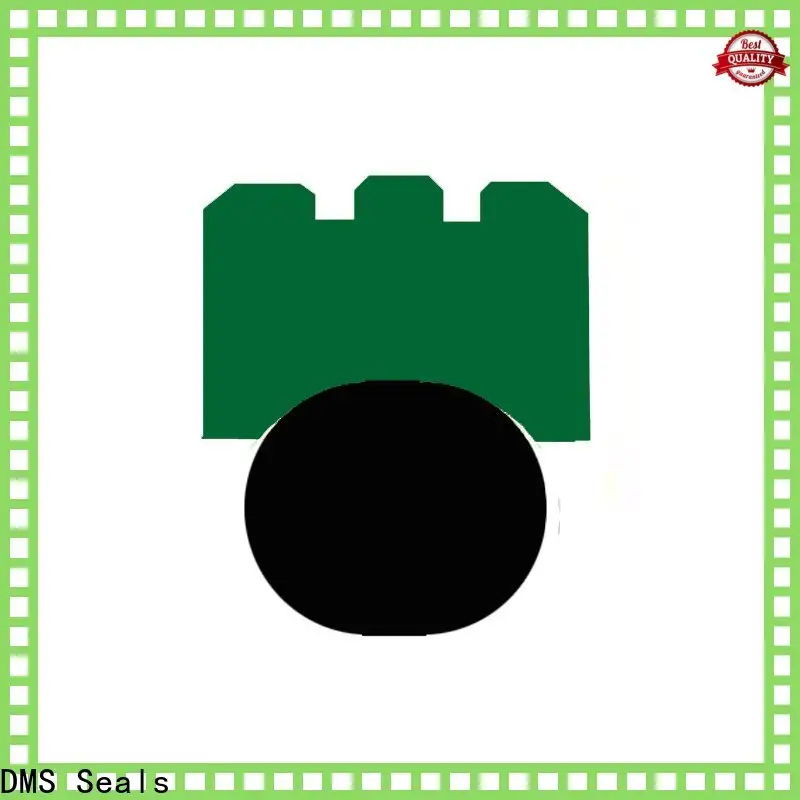

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-30MPa | -30℃+200℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. |
D H9 | d1 h9 | L+0.2 | |
8 10 12 | 3.1 5.1 7.1 | 2.2 2.2 2.2 | GNS8*3.1*2.2 GNS10*5.1*2.2 GNS12*7.1*2.2 |
14 15 16 | 9.1 10.1 11.1 | 2.2 2.2 2.2 | GNS14*9.1*2.2 GNS15*10.1*2.2 GNS16*11.1*2.2 |
17 18 20 | 12.1 13.1 15.1 | 2.2 2.2 2.2 | GNS17*12.1*2.2 GNS18*13.1*2.2 GNS20*15.1*2.2 |
80 85 90 | 69 74 79 | 4.2 4.2 4.2 | GNS80*69*4.2 GNS85*74*4.2 GNS90*79*4.2 |
95 100 102 | 84 89 91 | 4.2 4.2 4.2 | GNS95*84*4.2 GNS100*89*4.2 GNS102*91*4.2 |
105 110 115 | 94 99 104 | 4.2 4.2 4.2 | GNS105*94*4.2 GNS110*99*4.2 GNS115*104*4.2 |
120 125 130 | 109 114 119 | 4.2 4.2 4.2 | GNS120*109*4.2 GNS125*114*4.2 GNS130*119*4.2 |
210 220 230 | 194.5 204.5 214.5 | 6.3 6.3 6.3 | GNS210*194.5*6.3 GNS220*204.5*6.3 GNS230*214.5*6.3 |
240 250 280 | 224.5 234.5 264.5 | 6.3 6.3 6.3 | GNS240*224.5*6.3 GNS250*234.5*6.3 GNS280*264.5*6.3 |
350 360 400 | 329 339 379 | 8.1 8.1 8.1 | GNS350*329*8.1 GNS360*339*8.1 GNS400*379*8.1 |
Company Features
1. The DMS Seals brand is among the best in the market. Our main focus is to produce the best shaft seals for pumps in the market. DMS Seals is now ahead of the market. Thanks to highly advanced production line, DMS Seals has technically mature technology to produce rotary shaft lip type seals . DMS Seals is at the top of the industry.
2. We have fully-equipped facilities. They are more powerful, more efficient, and more reliable, which helps speed up our operating times and improve internal processes considerably. Our factory has state-of-the-art manufacturing facilities. They allow us to be capable of meeting the challenges of technology, quality conformance, and delivery while ensuring cost competitiveness. Our factory is blessed with a full line of cutting-edge production facilities and testing equipment. They are extremely useful in enhancing productivity and product quality, which gives us more confidence in providing clients quality products. Our manufacturing capabilities have continued to grow in recent years. This can be seen from the increasing customer number in our customer base. We have established business with several new customers this year.
3. is DMS Seals's strategic principle. Contact! We have been cooperating with our staff to produce the high quality crane mechanical seals to exceed the expectation of the customers. Contact! DMS Seals was born with the belief of . Contact!
