DMS Seals shaft wiper seal supply for pneumatic equipment

Company Advantages
1. DMS Seals is provided owing to our valuable experience and industrial expertise.
2. DMS Seals is guaranteed for safety by a team of professionals.
3. The raw materials of DMS Seals shaft wiper seal is purchased by our procurement team who often interviews or visits suppliers, strictly verifying the performance of the raw materials.
4. The product is of top quality and has reliable performance at competitive prices.
5. The product is quality approved and has a long service life.
6. Its quality is secured before the loading.
7. This product has been used in a variety of different fields.
8. This product is ideal for a wide range of applications.
9. This product is of high value and is now widely used in the market.

1. Installation Recommendation

2. Application and properties

Extreme wear resistance, easy installation on single-part piston without assembly aids due to the split design of the sealing ring. Assembly on one-part piston is possible. Insensitive to extreme pressure peaks. Extreme high extreme pressure resistance. High pressure an large gaps due to the special compound properties of the seal ring. Dimensions according to ISO 7425-1. Short axial assembly length. Installation in closed and undercut housings. Additional sizes of machined products available on short notice.

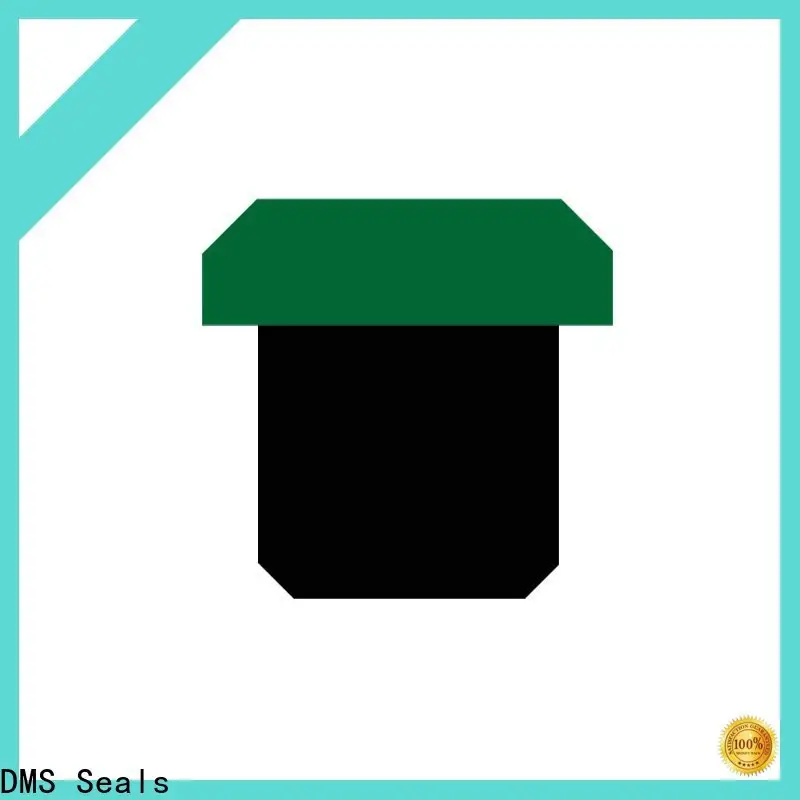

3. Standard materials

Sealing ring: filled modified thermoplast

O-ring: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed
25 - 480mm	0 - 80MPa	-30℃ +110℃	≤1 m/s

5. Installation Dimensions

D1	d1	L	Order No.
25 32 40	16 21 26.3	4.2 4.2 5.8	OK25*16*4.2 OK32*21*4.2 OK40*26.3*5.8
40 50 50	29 34.5 36.3	4.2 6.3 5.8	OK40*29*4.2 OK50*34.5*6.3 OK50*36.3*5.8
50 50 55	37 39 44	8 4.2 4.2	OK50*37*8 OK50*39*4.2 OK55*44*4.2
55 60 60	44 41.7 49	4.2 7 4.2	OK55*44*4.2 OK60*41.7*7 OK60*49*4.2
63 63 63	44.7 47.5 52	7 6.3 4.2	OK63*44.7*7 OK63*47.5*6.3 OK63*52*4.2
70 70 70	51.7 54.5 54.5	7 6.3 6.3	OK70*51.7*7 OK70*54.5*6.3 OK70*54.5*6.3
70 75 75	59 54 59.5	4.2 8 6.3	OK70*59*4.2 OK75*54*8 OK75*59.5*6.3
80 80 85	59 64.5 64	8 6.3 8	OK80*59*8 OK80*64.5*6.3 OK85*64*8
90 90 95	69 74.5 74	8 6.3 8	OK90*69*8 OK90*74.5*6.3 OK95*74*8
100 100 105	79 84.5 84	8 6.3 8	OK100*79*8 OK100*84.5*6.3 OK105*84*8
110 110 115	89 94.5 94	8 6.3 8	OK110*89*8 OK110*94.5*6.3 OK115*94*8
115 120 125	100 99 104	8 8 8	OK115*100*8 OK120*99*8 OK125*104*8
125 130 130	109.5 109 114.5	6.3 8 6.3	OK125*109.5*6.3 OK130*109*8 OK130*114.5*6.3
130 135 135	115 114 119.5	8 8 6.3	OK130*115*8 OK135*114*8 OK135*119.5*6.3
140 140 145	119 125 124	8 8 8	OK140*119*8 OK140*125*8 OK145*124*8
150 150 152.4	129 135 131.5	8 8 8	OK150*129*8 OK150*135*8 OK152.4*131.5*8
160 160 165	139 148 144	8 8 8	OK160*139*8 OK160*148*8 OK165*144*8
170 175 180	149 154 159	8 8 8	OK170*149*8 OK175*154*8 OK180*159*8
190 200 210	169 179 189	8 8 8	OK190*169*8 OK200*179*8 OK210*189*8
220 220 230	199 205 209	8 8 8	OK220*199*8 OK220*205*8 OK230*209*8
240 250 260	225 229 239	8 8 8	OK240*225*8 OK250*229*8 OK260*239*8
270 280 290	249 255.5 271	8 8 9.5	OK270*249*8 OK280*255.5*8 OK290*271*9.5
300 320 330	272 292 302	9.5 9.5 9.5	OK300*272*9.5 OK320*292*9.5 OK330*302*9.5
350 370 420	322 342 392	9.5 9.5 9.5	OK350*322*9.5 OK370*342*9.5 OK420*392*9.5
450 480	422 452	9.5 9.5	OK450*422*9.5 OK480*452*9.5
