DMS Seals sure seal shaft seal cost for construction machinery
1. DMS Seals is designed and produced in accordance with related standards.
2. DMS Seals goes through strict QC procedure.
3. DMS Seals sure seal shaft seal is designed with an aesthetically pleasing appearance that customers want.
4. The product maintains its flexibility under temperature fluctuations. It is tested in the temperature range it will be performing in to ensure its fullest potential.
5. The product is characterized by its nearly zero porosity. During its production, it has gone through the enameling process which diminishes the porous problem.
6. The product features excellent color fastness. It performs well in terms of lightfastness, wash fastness, sublimation fastness, and rub fastness.
7. The product is water resistant. It is made of highly waterproof materials and its exterior zippers are also waterproof to prevent the water come in.
8. Dms Seals Technology Co.,limited is willing to win customers' support and cooperation with the best quality products and best services!
9. Dms Seals Technology Co.,limited renders that diversity, like quality and customer service, is a competitive edge.
10. Providing the best quality sure seal shaft seal is the purposes of Dms Seals Technology Co.,limited's service.
Installation Recommendation
Installation Sizes
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radial Clearance S max. | Radius | Cross-Section | ||
Standard Range | Available range | d1 h9 | L1+0.2 | 32MPa | 50MPa | R1 | d2 |
| 8-39.9 | 8-135.0 | DN-4.9 | 2.2 | 0.15 | 0.10 | 0.40 | 1.78 |
| 40-79.9 | 14-250.0 | DN-7.5 | 3.2 | 0.20 | 0.15 | 0.60 | 2.62 |
| 80-132.9 | 22-460.0 | DN-11.0 | 4.2 | 0.25 | 0.20 | 1.00 | 3.53 |
| 133-329.9 | 40-675.0 | DN-15.5 | 6.3 | 0.30 | 0.25 | 1.30 | 5.33 |
| 330-669.9 | 133-690.0 | DN-21.0 | 8.1 | 0.30 | 0.25 | 1.80 | 7.00 |
| 670-999.9 | 670-999.9 | DN-28.0 | 9.5 | 0.45 | 0.30 | 2.50 | 8.40 |
Application and properties

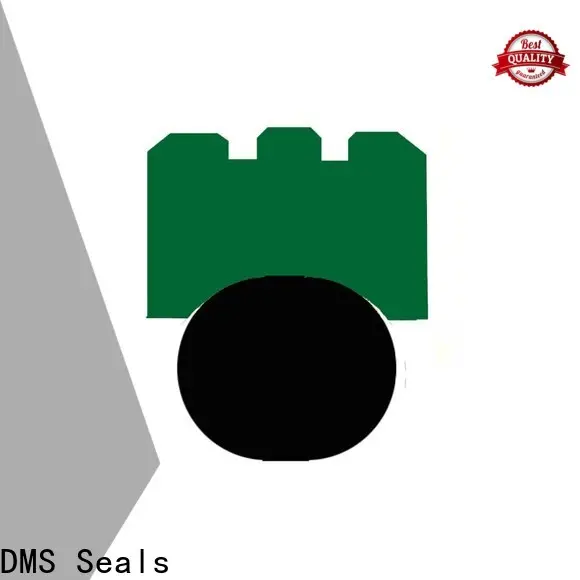

Suitable for sealing with rotating or swinging rods, shafts, pins, rotary joints, etc. It is a rotary sealing ring that can withstand both sides pressure or alternating pressure role of the double acting effect, used in construction machinery, construction machinery and automotive equipment. It can be applied on occasions where piston rod and piston seal are required, low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-30MPa | -30℃+200℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. |
D H9 | d1 h9 | L+0.2 | |
8 10 12 | 3.1 5.1 7.1 | 2.2 2.2 2.2 | GNS8*3.1*2.2 GNS10*5.1*2.2 GNS12*7.1*2.2 |
14 15 16 | 9.1 10.1 11.1 | 2.2 2.2 2.2 | GNS14*9.1*2.2 GNS15*10.1*2.2 GNS16*11.1*2.2 |
17 18 20 | 12.1 13.1 15.1 | 2.2 2.2 2.2 | GNS17*12.1*2.2 GNS18*13.1*2.2 GNS20*15.1*2.2 |
80 85 90 | 69 74 79 | 4.2 4.2 4.2 | GNS80*69*4.2 GNS85*74*4.2 GNS90*79*4.2 |
95 100 102 | 84 89 91 | 4.2 4.2 4.2 | GNS95*84*4.2 GNS100*89*4.2 GNS102*91*4.2 |
105 110 115 | 94 99 104 | 4.2 4.2 4.2 | GNS105*94*4.2 GNS110*99*4.2 GNS115*104*4.2 |
120 125 130 | 109 114 119 | 4.2 4.2 4.2 | GNS120*109*4.2 GNS125*114*4.2 GNS130*119*4.2 |
210 220 230 | 194.5 204.5 214.5 | 6.3 6.3 6.3 | GNS210*194.5*6.3 GNS220*204.5*6.3 GNS230*214.5*6.3 |
240 250 280 | 224.5 234.5 264.5 | 6.3 6.3 6.3 | GNS240*224.5*6.3 GNS250*234.5*6.3 GNS280*264.5*6.3 |
350 360 400 | 329 339 379 | 8.1 8.1 8.1 | GNS350*329*8.1 GNS360*339*8.1 GNS400*379*8.1 |
Company Features
1. The advantages of Dms Seals Technology Co.,limited become obvious during the development of sure seal shaft seal . Dms Seals Technology Co.,limited owns many production lines to meet customer's demands. In the field of rotary shaft seals online , DMS Seals plays a significant part in the development of sure seal shaft seal . Dms Seals Technology Co.,limited sets other enterprises apart from itself by .
2. DMS Seals's factory has the independent research and development capability. DMS Seals has great technical power to guarantee the quality of rotary seals manufacturer . Dms Seals Technology Co.,limited takes a leading role in terms of technology competency.
3. It is a true portrayal of DMS Seals and it is also a realistic requirement for every DMS Seals person to keep double oil seal in mind. Get info! Dms Seals Technology Co.,limited always adheres to the principle of 'high standards, high requirements, and high quality'. Get info! Dms Seals Technology Co.,limited strives to create brands with market appeal and market competitiveness! Get info! The staff of DMS Seals always keeps customer service in mind. Get info!
