DMS Seals Top forklift hydraulic cylinder seals supplier for pneumatic equipment

Company Advantages
1. Dms Seals Technology Co.,limited is willing to purchase high quality raw material rather than poor one in order to guarantee quality for forklift hydraulic cylinder seals .
2. The special composition of forklift hydraulic cylinder seals makes it obtain good performance of .
3. Advantages such as have helped forklift hydraulic cylinder seals win the market.
4. Different forklift hydraulic cylinder seals material levels are available to satisfy different customers.
5. To ensure its quality, the professional test procedures are adopted by our QC team.
6. This product has a smooth operation due to numerous times of quality testing.
7. The quality monitoring system has been set up to control the quality of this product.
8. The strict internal quality control system guarantees the product to reach the international standards.
9. Dms Seals Technology Co.,limited has a comprehensive quality monitoring and testing equipment and strong new product development capability.
10. DMS Seals has been growing rapidly into a leader in forklift hydraulic cylinder seals and related equipment.
11. Dms Seals Technology Co.,limited has improved its competition and carried out continuous research and development of forklift hydraulic cylinder seals over the years.
12. Dms Seals Technology Co.,limited will provide best service for all of our customers.
13. Dms Seals Technology Co.,limited has strong capacity in forklift hydraulic cylinder seals R&D and manufacturing.

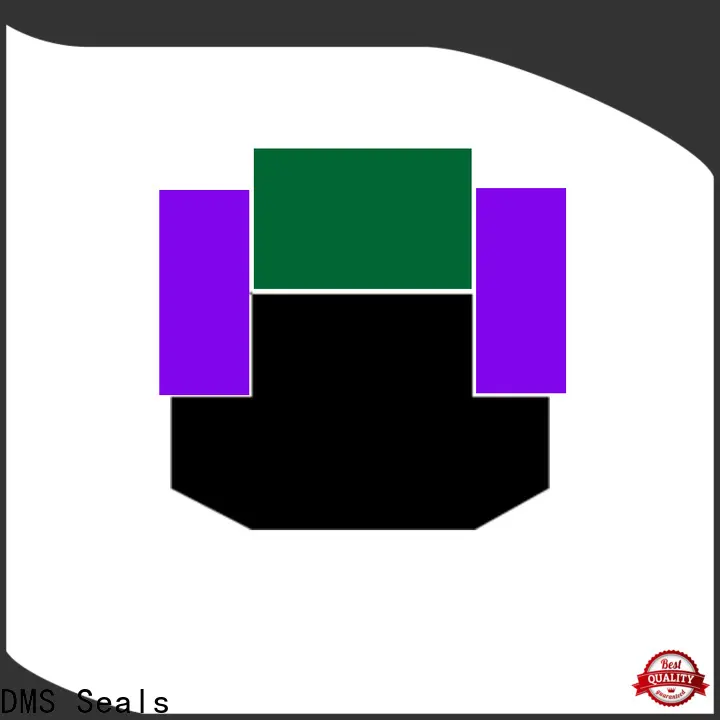

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited is a leading brand in developing, manufacturing, and marketing of , and now it is becoming stronger to provide premium products. With the spirit of continuous R&D, Dms Seals Technology Co.,limited has developed into a highly developed enterprise. After years of development, Dms Seals Technology Co.,limited has become a reliable and certified manufacturer of in the industry. Dms Seals Technology Co.,limited is proud to be a China-based company that has a powerful competence in developing and manufacturing .
2. DMS Seals mastered high technology to produce forklift hydraulic cylinder seals . The DMS Seals factory has a variety of advanced professional production equipment and testing equipment. With rigorous quality management system supported, DMS Seals ensures that the quality of double acting piston cup . The quality of hydraulic piston seals sizes has been constantly optimized by our remarkable technology.
3. Dms Seals Technology Co.,limited is always here to provide best service for our customers. Get an offer! DMS Seals has made up its mind to win the buffer seal hydraulic market. Get an offer! DMS Seals always takes the quality and service as guarantee. Get an offer! Dms Seals Technology Co.,limited will continue to bring high-quality, cost-effective products to our partners and consumers. Get an offer!
