DMS Seals Top hyd cylinder seals factory price for pneumatic equipment

Company Advantages
1. The principles of design are essential to the production of DMS Seals hyd cylinder seals . They consist of balance, proportion (also referred to as scale), emphasis, and rhythm.
2. There are many factors being considered during DMS Seals design. They include the selection of material, form and size of the parts, frictional resistance and lubrication, and safety of the operator.
3. A number of tests for DMS Seals hyd cylinder seals have been conducted. These tests include tensile strength testing, flexing testing, density testing, and compression testing.
4. hyd cylinder seals excels due to its obvious superiority such as .
5. hyd cylinder seals can provide the such performance as .
6. Possesses features, hyd cylinder seals will be of universal significance for the field.
7. To prepare an anode combining the excellent properties of tantalum at reasonable price, a new material has been developed in our laboratory.
8. Dms Seals Technology Co.,limited's inner departments collaborate efficiently, which ensures all production projects can be finished timely and smoothly.
9. Dms Seals Technology Co.,limited has successfully formed a market image of excellence in hyd cylinder seals field.
10. Dms Seals Technology Co.,limited fully takes advantage of the market demand for hyd cylinder seals in the course of its development.
11. Our hyd cylinder seals covers high technology of and .

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

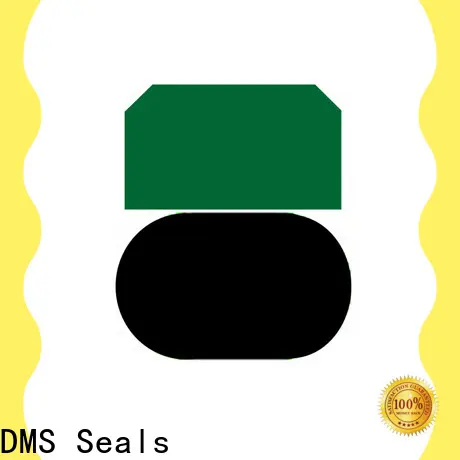

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a specialized manufacturer of high class hyd cylinder seals . In the field of pneumatic seals catalogue , we focus on making great double acting piston cup . As one of the famous manufacturers, DMS Seals is a leader in this field. DMS Seals has been selected as one of the most popular manufacturers. DMS Seals brand is skilled at producing hydraulic u seal .
2. Dms Seals Technology Co.,limited has strong technical strength and modern production technology and equipment. Dms Seals Technology Co.,limited has strong technical strength and processing capability. Dms Seals Technology Co.,limited has potent capabilities both in external seal R&D and production. Owing to the technology, o-ring seal is manufactured to be of high quality.
3. Within our own facilities, we work on reducing our water consumption, carbon emissions and waste stream, now and in the future. We recognize our responsibility to reduce our contribution to global climate change. We work to conserve energy, invest in renewable sources of energy, and reduce our greenhouse gas (GHG) emissions. We proactively conduct sustainability practices by investing in new product design, clean technologies, and more efficient processes, we will save money and resources.
