DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seals Top hydraulic cylinder seal compression tool wholesale for injection molding machines
- Based on the idea of 'integrity, responsibility, and kindness', Dms Seals strives to provide the best products and services, and gain more trust and praise from customers.
1. DMS Seals is the outcome of complicated electric knowledge. It is developed taking many things into consideration, including the design of circuit boards, components, circuits, and the whole product shape.
2. The coil springs DMS Seals contains could be between 250 and 1,000. And a heavier gauge of wire will be used if customers require fewer coils.
3. DMS Seals hydraulic cylinder seal compression tool is strictly checked. The inspections include abnormal operation ( faults and failures within the product) and the safety of the circuitry.
4. All of the textile fibers used in DMS Seals are carefully screened. Any harmful chemical substances such as formaldehyde and plumbum will be weeded out by the QC team.
5. The product is quality assured as it has passed the ISO certification.
6. The product has a great market prospect, great potential and with large market share.
7. The product has features of excellent performance reliable operation.
8. DMS Seals hydraulic cylinder seal compression tool is designed and manufactured in accordance with current market codes and guidelines.
9. Its quality is of high quality, meeting numerous needs of customers.
10. After receiving deposit, Dms Seals Technology Co.,limited will make production plan immediately.
11. We have enough hydraulic cylinder seal compression tool storage to make sure the efficiency of the delivery.
12. It is the implement of quality assurance that our hydraulic cylinder seal compression tool is so popular in the market.
13. Dms Seals Technology Co.,limited has the most knowledgeable experts and reliable, easy-to-use products.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |

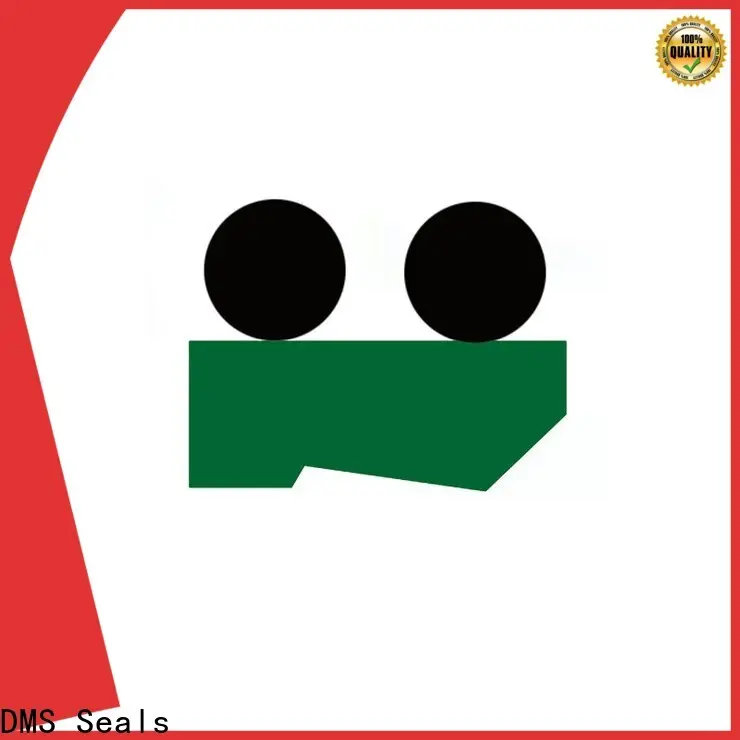

Application and properties
For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. Gaining a vast amount of experience in manufacturing , Dms Seals Technology Co.,limited has been a renowned manufacturer and supplier in the industry. As a professional manufacturer of , Dms Seals Technology Co.,limited covers a wide range of businesses, such as designing and developing products to meet the developing needs of customers. On the way of its history, Dms Seals Technology Co.,limited has been pioneering in hydraulic cylinder seal compression tool designing and manufacturing in China. Based on outstanding ability in developing and manufacturing of , Dms Seals Technology Co.,limited goes far ahead of the industry. Dms Seals Technology Co.,limited has been the preferred choice in manufacturing . We have gained years of experience in the industry.
2. DMS Seals has been cultivating high-level scientific and technological talents with independent innovation capabilities to provide the best rubber seals for fluid and hydraulic systems . Based on the standard of quality control system, hydraulic seal design of DMS Seals is popular for its exceptional quality. Dms Seals Technology Co.,limited has successfully developed the most technology to use in producing u cup packing . With rich R&D experience, Dms Seals Technology Co.,limited has done a good performance in launching new products.
3. Dms Seals Technology Co.,limited will enhance the reputation of wiper seal design guide products. Please contact. DMS Seals’s vision is to be a famous brand all over the world. Please contact. With the benefits of beltline weatherstrip seal sector, DMS Seals brand will grow rapidly because of its considerate support. Please contact. Dms Seals Technology Co.,limited is committed to improving the positioning and fairness of DMS Seals. Please contact. Today, the popularity of DMS Seals continues to increase. Please contact.
DMS Seals Top hydraulic cylinder seal compression tool wholesale for injection molding machines
hydraulic cylinder seal compression tool
Type:
Professional O Ring Suppliers & O Ring Manufacturers
