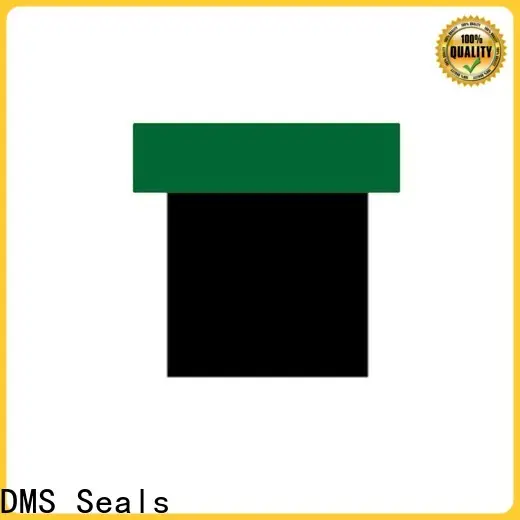

DMS Seals Top hydraulic piston seal installation factory for light and medium hydraulic systems 1

DMS Seals Top hydraulic piston seal installation factory for light and medium hydraulic systems 2

DMS Seals Top hydraulic piston seal installation factory for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. The design of DMS Seals is carried out by a team of professionals who keep innovative concepts in mind to make sure it can go with the service flow. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
2. There are many reasons why people should choose this product, from the clear environmental and financial benefits of cutting energy use to potential improvements in mental and physical health. DMS Seals takes the lead in grasping the development trend of the industry
3. Under the standard circumstance, ensures the feasibility of hydraulic piston seal installation . Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
4. Teat results prove that the hydraulic piston seal installation with is . DMS Seals provides professional design and production of high-grade o-ring seals
5. hydraulic piston seal installation has some virtues such as and so on, so it has been become a developing trend gradually. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
30 31.5 32	20.5 22 22.5	4.3 4.3 4.3	4.5 4.5 4.5	SPG3020.54.5 SPG31.5224.5 SPG3222.54.5
35 35.5 40	25.5 26 30	4.3 4.3 4.3	4.5 4.5 4.5	SPG3525.54.5 SPG35.5264.5 SPG40304.5
45 50 55	35 40 45	4.3 4.3 4.3	4.5 4.5 4.5	SPG45354.5 SPG50404.5 SPG55454.5
56 60 63	46 50 48	4.3 4.3 7.3	4.5 4.5 7.5	SPG56464.5 SPG60504.5 SPG63487.5
65 69 70	50 54 55	7.3 7.3 7.3	7.5 7.5 7.5	SPG65507.5 SPG69547.5 SPG70557.5
71 75 80	56 60 65	7.3 7.3 7.3	7.5 7.5 7.5	SPG71567.5 SPG75607.5 SPG80657.5
85 90 95	70 75 80	7.3 7.3 7.3	7.5 7.5 7.5	SPG85707.5 SPG90757.5 SPG95807.5
100 105 108	85 90 92	7.3 7.3 7.3	7.5 7.5 7.5	SPG100857.5 SPG105907.5 SPG108927.5
110 112 120	94 96 104	7.3 7.3 7.3	7.5 7.5 7.5	SPG110947.5 SPG112967.5 SPG1201047.5
125 130 135	109 114 119	7.3 7.3 7.3	7.5 7.5 7.5	SPG1251097.5 SPG1301147.5 SPG1351197.5
140 145 150	124 129 134	7.3 7.3 7.3	7.5 7.5 7.5	SPG1401247.5 SPG1451297.5 SPG1501347.5
155 160 170	139 144 148	7.3 7.3 10.8	7.5 7.5 11	SPG1551397.5 SPG1601447.5 SPG17014811

Installation Dimensions

Company Features
1. With the property of , our produced hydraulic piston seal installation has gained much attention.
2. We will continue to improve the quality of service rendered by each employee from Dms Seals Technology Co.,limited. Welcome to visit our factory!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
