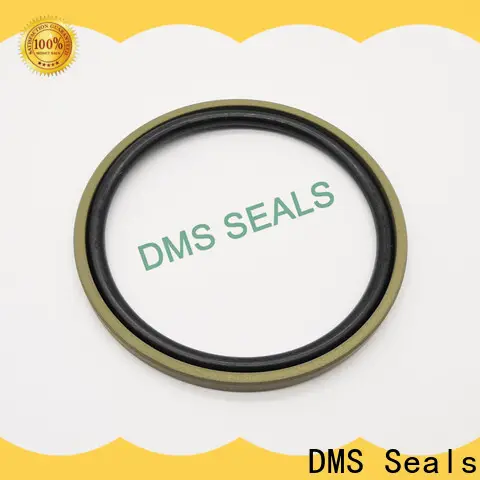

DMS Seals Top ptfe o ring factory price for piston and hydraulic cylinder

Company Advantages
1. DMS Seals ptfe o ring has passed comprehensive furniture testing. It has been tested for safety, durability, and structural adequacy and ensured that whether it is safe to use and fits for purpose.
2. DMS Seals ptfe o ring can be made of canvas, high-grade plastic, or rubber. It is totally dependent on the factors like for what sort of application.
3. Quality performance tests for DMS Seals ptfe o ring will be finished at the final stage. They include rubbing resistance tests, tensile strength tests, colorfastness, and anti-bacterial tests.
4. Customer demand is greatly fueled by the durability and performance of the product.
5. There is a special of ptfe o ring to ensure the endurance of the product.
6. Through our quality assurance program, the product has achieved and maintained a high level of quality.
7. The product has satisfying functions that customers need and require.
8. The product is widely recognized for good reliability and usability.
9. If one is in search of a projector screen that’s suitable for public displays, home theatre, office presentations as well as classroom training, then this product is the answer.
10. This product creates immense value and high-end feelings to the homes with great flexibility to fit any building decoration styles.
11. This garment is attractive. Its elements which include design, material, and construction reflect good design principles and perfectly fulfill appearance expectations.
12. The reasons that the product is widely used in industries are mainly due to the fact that using this product can cut energy costs while maintaining high productivity.
13. The product has its unique characteristics which distinct from the cookie-cutter bathroom products. It definitely adds charm and appeal to the bathrooms.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others



6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is an advanced enterprise in ptfe o ring industry with top-class technology, talents, and brands. Dms Seals Technology Co.,limited is a global leader in pneumatic rubber seals . Dms Seals Technology Co.,limited have long histories and strong strength in seal kit manufacturer development. With its complete split oil seals suppliers industry chain, DMS Seals has gained more fame since its establishment.
2. Our quality check team is crucial to our company. They utilize their years of QC experience to ensure the highest standards of product quality and safety. Our factory is strategically positioned. It provides sufficient raw materials and skilled labor. And it becomes the preferred production destination, offering seamlessly connected roads, air, and seaports. We house many state-of-the-art facilities, including manufacturing machines and quality testing equipment. They are all introduced from developed countries and are effective in helping us achieve continuous quality control. The research and development team is a treasure for our company. They have years of experience in this industry and possess a wealth of industry know-how, all of which make them have a unique understanding of products. Our company has hired and trained teams of operators. The deep internal processing capabilities of these professionals simplify the manufacturing process and provide our customers with the best products faster and with less risk.
3. is a fundamental tenet of an efficient development for Dms Seals Technology Co.,limited. Get price! It is the everlasting tenet for the Dms Seals Technology Co.,limited to pursue . Get price! Dms Seals Technology Co.,limited will seize the opportunity to continue the rapid and healthy development of itself in hydraulic seals distributors industry. Get price! Dms Seals Technology Co.,limited well meets our customers' different requirements. Get price!
