DMS Seals u cup seal for piston company for forklifts 1

DMS Seals u cup seal for piston company for forklifts 2

DMS Seals u cup seal for piston company for forklifts

Diameter Range:

3-1600mm

Temperature Range:

-30℃+200℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Product Comparison

Closely following the market trend, Dms Seals uses advanced production equipment and manufacturing technology to produce O-ring Seal. The product receives favors from the majority of customers for the high quality and favorable price.Compared with other same kind of products, O-ring Seal produced by Dms Seals has the following advantages and features.

Company Advantages
1. DMS Seals u cup seal for piston has passed the FCC, CE and ROHS safety certification, which is regarded as an internationally certified safe and green product.
2. The design of DMS Seals is meant to meet the needs of users who are in the pursuit of writing, signing, and drawing freely. It is a practical design that can cater to different digital needs.
3. DMS Seals is designed with a scientific system. This system includes a sterilization system to reliably supply the desired water quality.
4. u cup seal for piston also has other highly marketable qualities such as .
5. We offer u cup seal for piston that are unique and manufactured keeping the changing global trends in mind .
6. u cup seal for piston can provide the such performance as .
7. Dms Seals Technology Co.,limited has strong technical strength and has provided excellent services for many large u cup seal for piston brands around the world.
8. Dms Seals Technology Co.,limited has strong technical strength and economic strength.
9. Dms Seals Technology Co.,limited's sales department implements a perfect modern management system.

Installation Recommendation

undefined

Installation Sizes

Rod Diameter d f8/h9		Groove Diameter	Groove Width	Step Diameter	Radius	Step Width
Standard Application	Suitable Application	D H9	L1+0.2	D1±0.1	R	a
140.0-229.9	100.0-450.0	d+22.2	6.3	d+10.7	1.2	4.2
230.0-299.9	220.0-450.0	d+24.2	6.3	d+10.7	1.2	4.2
300.0-629.9	250.0-650.0	d+33.0	8.1	d+15.1	1.2	6.3
630.0-999.9	550.0-999.9	d+36.5	9.5	d+15.1	2.0	6.3

Application and properties

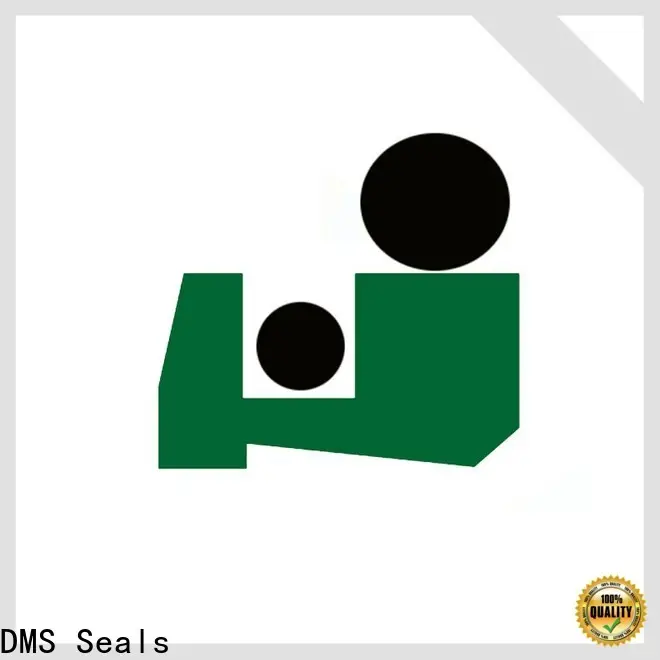

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm		-30℃+200℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8	D H9	H	L1+0.2	L1	Order No.
100 110 120	122.2 132.2 142.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-100122.26.3 DPT2-110132.26.3 DPT2-120142.26.3
130 140 150	152.2 162.2 172.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-130152.26.3 DPT2-140162.26.3 DPT2-150172.26.3
160 170 180	182.2 192.2 202.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-160182.26.3 DPT2-170192.26.3 DPT2-180202.26.3
190 200 210	212.2 222.2 232.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-190212.26.3 DPT2-200222.26.3 DPT2-210232.26.3
220 230 240	242.2 252.2 262.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-220242.26.3 DPT2-230252.26.3 DPT2-240262.26.3
250 260 270	272.2 282.2 292.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-250272.26.3 DPT2-260282.26.3 DPT2-270292.26.3
275 280 290	297.2 302.2 312.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-275297.26.3 DPT2-280302.26.3 DPT2-290312.26.3
295 300 320	317.2 333 353	13.5 18.4 18.4	6.3 8.1 8.1	4.2 6.3 6.3	DPT2-295317.26.3 DPT2-3003338.1 DPT2-3203538.1
340 350 360	373 383 393	18.4 18.4 18.4	8.1 8.1 8.1	6.3 6.3 6.3	DPT2-3403738.1 DPT2-3503838.1 DPT2-3603938.1

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited has always been in the profession leading position in u cup seal for piston industry. Dms Seals Technology Co.,limited is an enterprise specializing in R&D, manufacturing, sales and service of high-end u cup seal design . Dms Seals Technology Co.,limited has embarked on a sustained drive to build world leading piston u seal supplier.
2. All our piston ring design guide have conducted strict tests. Always aim high in quality of u seal band . we have successfully developed a variety of hydraulic cylinder piston design pdf series. Different mechanisms are provided for fabricating different wiper seal design guide . The quality of our t profile seal still keeps unsurpassed in China.
3. Our high quality cylinder rod seal will just meet customer's different requirements. Call! Let us be your trusted adviser on packing rod seals . Call! Dms Seals Technology Co.,limited is able to make the right decisions for our customers. Call!

DMS Seals u cup seal for piston company for forklifts

u cup seal for piston

Type:

DMS Seals u cup seal for piston company for forklifts 7

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
