Company Advantages
1. DMS Seals wholesale hydraulic seals is designed under the vigilance of our talented and professional designers.
2. The production of DMS Seals has come up to advanced international standards.
3. DMS Seals wholesale hydraulic seals is exquisitely designed from a group of innovative designers.
4. DMS Seals is fabricated using top grade raw materials under the strict supervision of our quality experts.
5. The production technology of DMS Seals is advanced, which is in line with the industry standards.
6. The product is immune to any electrical problems. Its live components, conductors, and terminals are well-designed, acting roles in preventing.
7. The product has stable machine performance. It always runs stably in the operation of start, brake speed adaptation, and open circuit losses.
8. The product uses intelligent design. Any problems in the production process at any time will shut down the system to avoid further problems or fix problems internally.
9. The heavy-duty work which man can never do can be done by this product. With the aid of this product, such jobs can be done easily.
10. People can be reassured that the product contains no methanal or other harmful substances which may cause a health risk.
11. This garment is attractive. Its elements which include design, material, and construction reflect good design principles and perfectly fulfill appearance expectations.

Scope of application

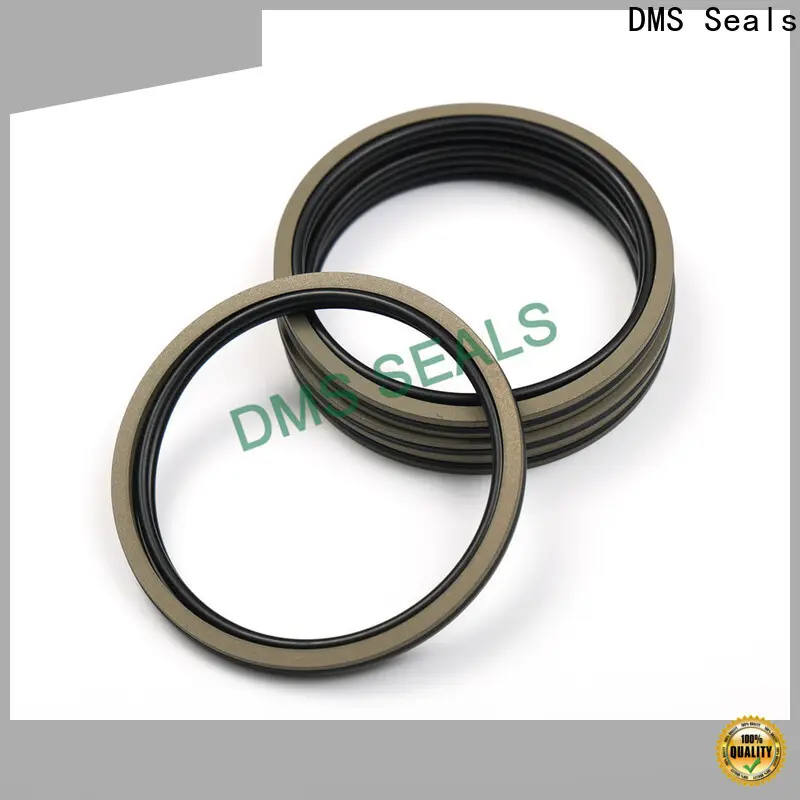

DAQ2 piston seal retains the low friction, high pressure resistance and high speed characteristics of PTFE seals, and has the sealing characteristics of rubber, which is suitable for some occasions with high speed and high pressure and need to maintain pressure.

It can be used as a two-way motion piston accumulator and a sealing element for position control cylinders, clamping cylinders, etc., and can be used in machine tools, presses, rolling mills, shoe machines, piston accumulators, heavy suspension cylinders, etc. Especially recommended for heavy duty and large diameter applications.

 Features and Benefits

1. Good dynamic and static sealing performance;

2. With the function of maintaining pressure, the leakage in the cylinder is small;

3. Good sliding performance, no crawling;

4. Hydraulic fluid (bio-oil) suitable for new environmental protection and safety;

5. Since a wide variety of materials can be used, it has strong adaptability to working conditions;

6. It combines low friction and high elasticity, with double safety;

7. The groove design is simple and the installation space is small. The groove size conforms to ISO 7425/1, and can be interchanged with Glynn, Sterling, etc.;

8. Larger extrusion gap can be allowed, depending on the application, so the processing cost can be reduced;

9. Where two media need to be separated (eg: fluid/fluid or fluid/gas), the gas permeability is low and the sealing efficiency is high.

Item	Specifications
Product Name	Piston Compressor Seal Daq2 Star Double O-Ring Accumulator Sea
Products Category	Hydraulic seals, Oil seals, O-Rings
Material	PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc.
Propeties	High temperature, low temperature, high pressure, low pressure,friction resistance
Sizes	Standard and customize
Medium	Hydraulic oil,  anti-fire fluid, water, gas etc
Application	excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc.

NO.	SIZE	NO.	SIZE
1	DAQ2-40*30*6.3	25	DAQ2-140*122*12.3
2	DAQ2-42*32*6.3	26	DAQ2-150*132*12.3
3	DAQ2-45*35*6.3	27	DAQ2-160*142*12.3
4	DAQ2-48*38*6.3	28	DAQ2-170*152*12.3
5	DAQ2-50*40*6.3	29	DAQ2-180*162*12.3
6	DAQ2-52*42*6.3	30	DAQ2-190*172*12.3
7	DAQ2-55*45*6.3	31	DAQ2-200*182*12.3
8	DAQ2-60*50*6.3	32	DAQ2-210*192*12.3
9	DAQ2-63*53*6.3	33	DAQ2-220*202*12.3
10	DAQ2-65*55*6.3	34	DAQ2-230*212*12.3
11	DAQ2-70*60*6.3	35	DAQ2-240*222*12.3
12	DAQ2-75*65*6.3	36	DAQ2-250*232*12.3
13	DAQ2-80*67*8.3	37	DAQ2-280*262*12.3
14	DAQ2-85*72*8.3	38	DAQ2-300*282*12.3
15	DAQ2-90*77*8.3	39	DAQ2-320*302*12.3
16	DAQ2-95*82*8.3	40	DAQ2-350*332*12.3
17	DAQ2-100*87*8.3	41	DAQ2-400*382*12.3
18	DAQ2-105*92*8.3	42	DAQ2-420*402*12.3
19	DAQ2-110*97*8.3	43	DAQ2-450*432*12.3
20	DAQ2-115*102*8.3	44	DAQ2-480*449*16.3
21	DAQ2-120*107*8.3	45	DAQ2-500*469*16.3
22	DAQ2-125*112*8.3	46	DAQ2-600*569*16.3
23	DAQ2-130*117*8.3	47	DAQ2-700*669*16.3
24	DAQ2-135*117*12.3	48

Company Features
1. As a company that specializes in wholesale hydraulic seals manufacturing, Dms Seals Technology Co.,limited has become a renowned manufacturer in the industry. As a professional manufacturer specialing in , Dms Seals Technology Co.,limited has years’ of product customizing experience in this industry. So far, the company has achieved support from society to improve its overall competitiveness. Dms Seals Technology Co.,limited is a comprehensive enterprise integrating R&D and production. Our Piston Seals is exported to tens of countries and regions and achieving remarkable sales growth there.
2. Dms Seals Technology Co.,limited is equipped with strong research strength, having an R&D team dedicated to developing all types of new piston lip seal . Whenever there is any problems for our hydraulic seal design , you can feel free to ask our professional technician for help. We've been focusing on manufacturing high quality buffer seal hydraulic for domestic and abroad customers. At present, most of the rod seal installation series produced by us are original products in China. We have the capability of researching and developing state-of-the-art technologies of shaft wiper seal .
3. Dms Seals Technology Co.,limited seeks mutually beneficial collaboration and common growth. Inquire online! Guided by a vision of , Dms Seals Technology Co.,limited achieves sustainable and healthy growth. Inquire online! Dms Seals Technology Co.,limited will shoulder corporate social responsibility, and dedicated to innovative, harmonious and green development. Inquire online! DMS Seals believed that the development of company can not do without support of . Inquire online! DMS Seals sets goal and mission to discover more motivation to produce shaft seal design with high quality. Inquire online!

DMS Seals wholesale hydraulic seals supplier for light and medium hydraulic systems
