DMS Seals Wholesale mechanical seal cooler wholesale for aviation

Company Advantages
1. There are different types of mechanical seal cooler for our customer's choice.
2. Using such design, the goal for  is achieved while meeting the requirements on .
3. is an original designed mechanical seal cooler .
4. The remarkable merits of material for mechanical seal cooler are durable and beautiful.
5. Dms Seals Technology Co.,limited ensures that all the materials we use for mechanical seal cooler are safe and environmentally friendly.
6. This product is required to maintain its original shape. It has the ability to resist deformation when withstanding heaving loading from feet.
7. The product is rather safe to use. Any potential hazards have been assessed and handled in accordance with strict guidelines to eliminate any health issues.
8. This product can effectively beat stains. Its surface is not easy to absorb some acidic liquids like vinegar, red wine, or lemon juice.
9. The product has the desired durability. It has passed the drop test to evaluate how well it can withstand impacts and pressure.
10. This product ensures safety in its use. The materials used for it contain no harmful chemicals that make for unsafe conditions.
11. This product has many advantages and huge economic benefits, and has gradually developed into a trend in the industry.
12. This product is widely used by people from all walks of life.
13. The product is available at competitive prices and is used by more and more people.
14. This product has many excellent properties and has been widely used in the market.

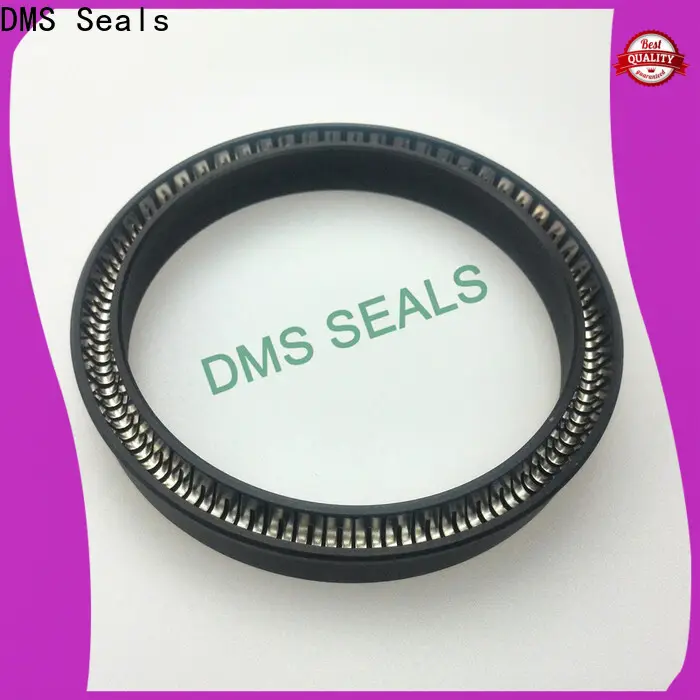

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. The DMS Seals brand is now more professional than many other SMEs in China. Dms Seals Technology Co.,limited is one of the earliest companies specializing in mechanical seal cooler in China. DMS Seals ​​is the best synonym for 'Made in China'. As a professional shaft seals for dynamic applications manufacturer, DMS Seals has been ranking top in the industry. springseal inc produced by Dms Seals Technology Co.,limited take the lead in domestic market.
2. With the development of society, the technical strength of DMS Seals continues to increase. With a large scale of factory, DMS Seals enjoys great reputation for its high quality products. DMS Seals attaches great importance to forward-looking technology applications in the production of spring loaded double lip seal . Dms Seals Technology Co.,limited has a strong technology strength to support the production of mse seal . We have experienced technicians who can guarantee the quality of oil seal manufacturer .
3. Dms Seals Technology Co.,limited will closely follow up needs from customers and try to satisfy. Check it! To further promote the company’s corporate competitiveness, DMS Seals pays more attention to the application of mechanical seal brands . Check it! and unique insights benefit all of our clients. Check it! Dms Seals Technology Co.,limited would like to build long-term cooperation relationships with you. Check it!
