DMS Seals Wholesale rod seal installation wholesale for sale
1. DMS Seals has to go through pre-production inspections. The raw materials and components must be verified by the QC team to ensure its maximum electrical safety. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
2. With a fine image, outstanding staffs and top-notch quality, Dms Seals Technology Co.,limited offers wholehearted service to clients at home and abroad. DMS Seals takes the lead in grasping the development trend of the industry
3. It is detailed tested by our professional QC team. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
4. To guarantee quality of this product, our quality check team strictly implements measures of testing. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

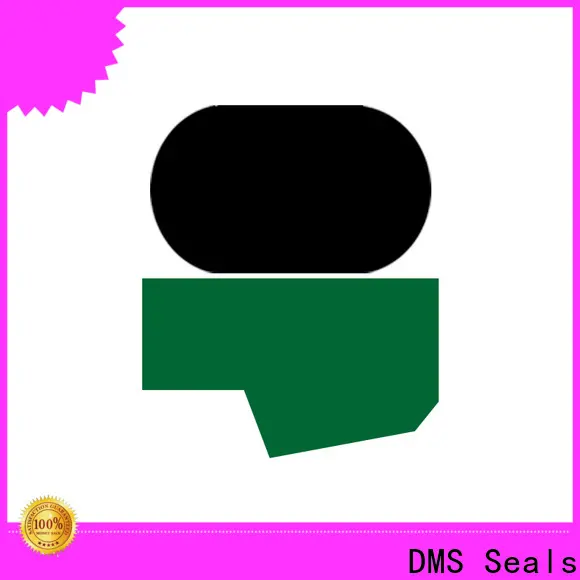

1. Installation Recommendation
2. Installation Sizes
Rod Diameter dN h9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | D1 H9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
3-7.9 | 8-18.9 | - | dN+4.9 | 2.2 | 0.4 | 0.3 | 0.20 | 0.15 | 1.78 |
8-18.9 | 19-37.9 | - | dN+7.3 | 3.2 | 0.6 | 0.4 | 0.25 | 0.15 | 2.62 |
19-37.9 | 38-199.9 | 8-18.9 | dN+10.7 | 4.2 | 1.0 | 0.4 | 0.25 | 0.20 | 3.53 |
38-199.9 | 200-255.9 | 19-37.9 | dN+15.1 | 6.3 | 1.3 | 0.5 | 0.30 | 0.20 | 5.33 |
200-255.9 | 256-649.9 | 38-199.9 | dN+20.5 | 8.1 | 1.8 | 0.6 | 0.35 | 0.25 | 7.00 |
256-649.9 | 650-999.9 | 200-255.9 | dN+24.0 | 8.1 | 1.8 | 0.6 | 0.35 | 0.25 | 7.00 |
650-999.9 | ≥1000.0 | 256-649.9 | dN+27.3 | 9.5 | 2.5 | 0.7 | 0.50 | 0.30 | 8.40 |
≥1000.0 | - | 650-999.9 | dN+38.0 | 13.8 | 3.0 | 1.0 | 0.70 | 0.60 | 12.00 |
3. Application and properties
Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
Rod Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimensions |
dN h9 | D1 H9 | L1+0.2 | ||
20 20 22 | 27.3 30.7 29.3 | 3.2 4.2 3.2 | GSJ20*27.3*3.2 GSJ20*30.7*4.2 GSJ22*29.3*3.2 | 21.89*2.62 23.39*3.53 23.47*2.62 |
22 25 25 | 32.7 32.3 35.7 | 4.2 3.2 4.2 | GSJ22*32.7*4.2 GSJ25*32.3*3.2 GSJ25*35.7*4.2 | 26.57*3.53 26.64*2.62 29.74*3.53 |
28 30 32 | 38.7 40.7 42.7 | 4.2 4.2 4.2 | GSJ28*38.7*4.2 GSJ30*40.7*4.2 GSJ32*42.7*4.2 | 31.34*3.53 34.52*3.53 36.09*3.53 |
35 36 38 | 45.7 46.7 53.1 | 4.2 4.2 6.3 | GSJ35*45.7*4.2 GSJ36*46.7*4.2 GSJ38*53.1*6.3 | 37.69*3.53 40.87*3.53 43.82*5.33 |
40 40 42 | 50.7 55.1 57.1 | 4.2 6.3 6.3 | GSJ40*50.7*4.2 GSJ40*55.1*6.3 GSJ42*57.1*6.3 | 44.04*3.53 43.82*5.33 46.99*5.33 |
45 45 50 | 55.7 60.1 60.7 | 4.2 6.3 4.2 | GSJ45*55.7*4.2 GSJ45*60.1*6.3 GSJ50*60.7*4.2 | 47.22*3.53 50.17*5.33 53.57*3.53 |
50 55 56 | 65.1 70.1 66.7 | 6.3 6.3 4.2 | GSJ50*65.1*6.3 GSJ55*70.1*6.3 GSJ56*66.7*4.2 | 56.52*5.33 59.69*5.33 59.92*3.53 |
56 56 60 | 71.1 76.5 75.1 | 6.3 8.1 6.3 | GSJ56*71.1*6.3 GSJ56*76.5*8.1 GSJ60*75.1*6.3 | 59.69*5.33 62.87*6.99 66.04*5.33 |
