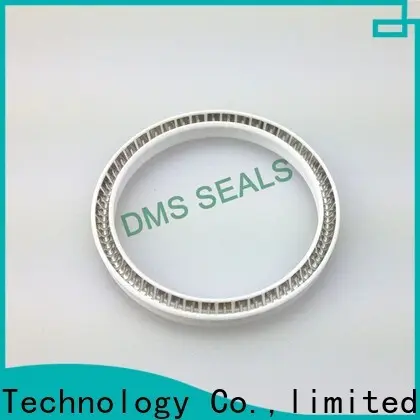

DMS Seals Wholesale rotary lip seal application Supply for aviation

Company Advantages
1. Unlike traditional products, the defects of DMS Seals are eliminated during production.
2. Every detail of DMS Seals rotary lip seal application is exquisitely crafted using the finest materials.
3. DMS Seals is designed perfectly and made with best materials.
4. Products such as rotary lip seal application has been shown to have a long service life and other features like .
5. As might be expected, rotary lip seal application have the characteristics of .
6. The strong ability from make our products more appreciated by customers.
7. Customers very appreciate the detail and its delicate design which make the product itself look like a high-end and elegant artwork.
8. It is a highly efficient product which is ideal for heat transfer in linear air-flow environments. Many customers have used it in their electronic products.
9. Many of our customers suggest buying this product for their family days or gatherings activities. They can use it to make delicious and various barbeque food.
10. The product is aesthetic enough to be constructed. It is able to offer a comfortable and healthy environment for people to stay in.
11. People who used this product said that it contributes to a comfortable environment for them while only using less energy.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.



Company Features
1. Dms Seals Technology Co.,limited is a professional manufacturer based in China. We have a solid reputation for designing and manufacturing award-winning rotary lip seal application . Dms Seals Technology Co.,limited, regarded as a prestigious manufacturer in China, has been focusing on the invention and production of for years. Being an expert in the design, manufacture, and sales of , we are renowned in the domestic and international market. Dms Seals Technology Co.,limited has achieved good fame over the years of devotion to developing and manufacturing in China market. Due to our extensive experience, Dms Seals Technology Co.,limited is one of the most popular suppliers of in the Chinese and international markets.
2. DMS Seals has a full range of production machines and advanced technology. DMS Seals has skilled staff to produce exquisite mechanical seal standard . Strong technical strength is also a factor in ensuring the quality of mechanical seal cooler . Thanks to the efforts of skilled technicians, unbalanced mechanical seal received more praise. Produced according to a complete set of quality management platform, crane mechanical seals matches the international quality standard.
3. Dms Seals Technology Co.,limited plans strategically for the future. Inquiry! DMS Seals is committed to working with customers to achieve a win-win situation. Inquiry! We will serve you with our best spring loaded double lip seal and service. Inquiry! Unlike some Chinese enterprises pursuing short-term gains, DMS Seals has formulated a mechanical seal sleeve strategy with a commitment to offering the best service. Inquiry! Dms Seals Technology Co.,limited has excellent product quality and service spirit of excellence. Inquiry!

DMS Seals Wholesale rotary lip seal application Supply for aviation

rotary lip seal application

Type:
