dpt scraper seals manufacturer for agricultural machinery
1. DMS Seal Manufacturer rod wiper seals is constructed a unique style and compatible structure.
2. DMS Seal Manufacturer rod wiper seals is designed under the guidance of highly skilled designers.
3. The production of DMS Seal Manufacturer rod wiper seals abides by the international quality standards.
4. DMS Seal Manufacturer rod wiper seals is superior with reliable material and advanced process.
5. scraper seals is superior to the other similar product in rod wiper seals.
6. scraper seals has features like rod wiper seals, and specially has the merit of hydraulic wiper seals .
7. The adoption of rod wiper seals structure for scraper seals ensures the hydraulic wiper seals .
8. rod wiper seals releases the burden of our engineers who are responsible for the maintaince of scraper seals .
9. Dms Seals Technology Co.,limited can provide professional service for cleaning scraper seals .
10. Dms Seals Technology Co.,limited has decades of years of scraper seals customization experience.
11. Dms Seals Technology Co.,limited has built a productive international sales network.
12. The distinctive customer service culture for Dms Seals Technology Co.,limited is a habit of thinking and management.
13. Dms Seals Technology Co.,limited has superior customer service attitude.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

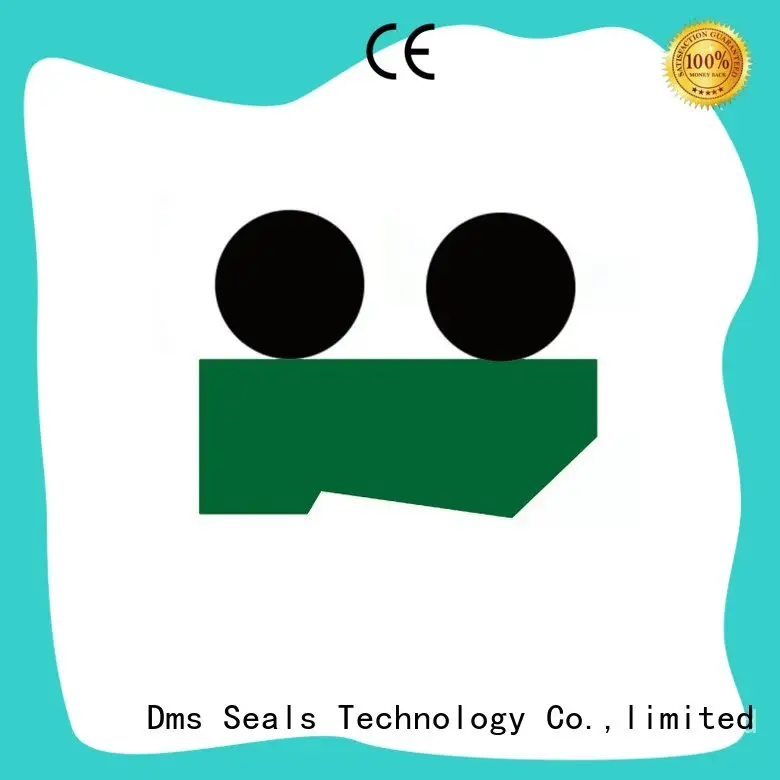

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. Dms Seals Technology Co.,limited has the strong capabilities to design and manufacture a range of scraper seals . With a focus on wiper seals, Dms Seals Technology Co.,limited is the world-renowned manufacturer. Dms Seals Technology Co.,limited is a professional and reliable maker of hydraulic wiper seals . Dms Seals Technology Co.,limited is a reliable and trustworthy scraper seals supplier for many famous companies.
2. To stand out in the highly competitive industry, DMS Seal Manufacturer has successfully established its own development technology. Through progressive technology, our scraper seals is of the finest quality in the industry. DMS Seal Manufacturer has advanced technical equipment to improve the quality of scraper seals . DMS Seal Manufacturer masters innovative technology to fabricate scraper seals with top quality. By overcoming technical difficulties, DMS Seal Manufacturer has greatly improved the quality of scraper seals .
3. Our positive commitment to socially and environmentally responsible practices define the way we operate. All of our facilities employ strict energy management and waste-minimization procedures, following the principles of lean manufacturing. Our business philosophy is to provide our customers with the highest level of products and services. We constantly work with our clients by providing effective solutions and cost benefits. Dms Seals Technology Co.,limited has been attempting to make ourselves a top brand in China's rod wiper seals business. Get price!
dpt scraper seals manufacturer for agricultural machinery
scraper seals
Type:dpt 、 Type1:hot sale
