DPT1 - PTFE/PU Hydraulic Scraper Seal with NBR/FKM O-Ring
1. DMS Seal Manufacturer scraper seals will be check to guarantee no electrical failure. It has passed the power-on test, energy-efficient test, and anti-aging test.
2. DMS Seal Manufacturer scraper seals meets a variety of international standards for electric appliances. They are CARB, FCC, ETL, UL, CB, CCC and so on.
3. The materials for DMS Seal Manufacturer scraper seals are carefully selected. The materials, controlled and inspected by QC team, must have high insulation level and anti-corrosive performance, especially the electric parts.
4. DMS Seal Manufacturer rod wiper seals is designed with a range of operation types, These types include automatic operation, continuous operation, synchronous operation, modular operation, etc.
5. The quality of the product can withstand the test of time.
6. Inspection of this product follows the standards prescribed by customers.
7. The product is extremely praised owing to their high quality and longer service life.
8. The product gives a kitchen renovation sense which dramatically improves the style, appearance, and the overall value of the kitchen.
9. Using this product is able to save a huge number of lives each year in the issue of waterborne diseases.
10. The product gives me a strong feeling of stability, especially for someone who is plump like me, I feel surefooted when my feet land on the ground. - Said one of our customers.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

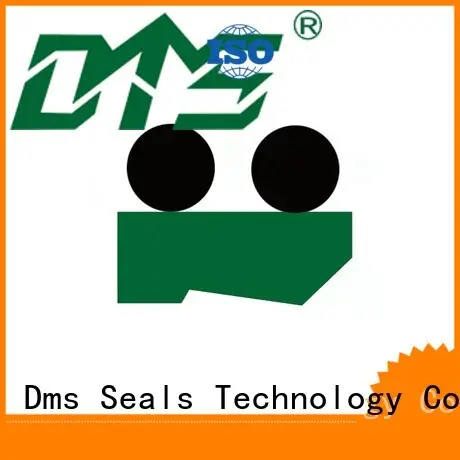

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. The rich experience and good reputation bring Dms Seals Technology Co.,limited a great success for scraper seals . Dms Seals Technology Co.,limited has largest production base and professional management system. DMS Seal Manufacturer seized the favorable opportunity to achieve the rapid growth in the history of wiper seals industry.
2. Dms Seals Technology Co.,limited has strong technical strength and extensive customer base. Dms Seals Technology Co.,limited has invested heavily in the introduction of talent, technology and equipment. By performing the rod wiper seals technology, DMS Seal Manufacturer has stronger technical force to manufacture hydraulic wiper seals .
3. The essence in service creed of Dms Seals Technology Co.,limited is metric wiper seal . Inquire! With wiper seal design being its service philosophy, Dms Seals Technology Co.,limited provides hydraulic wiper seals . Inquire! To establish the service theory of rod wiper seals is the base of Dms Seals Technology Co.,limited's work. Inquire! Dms Seals Technology Co.,limited persists in the rod wiper seals service concept. Inquire!
