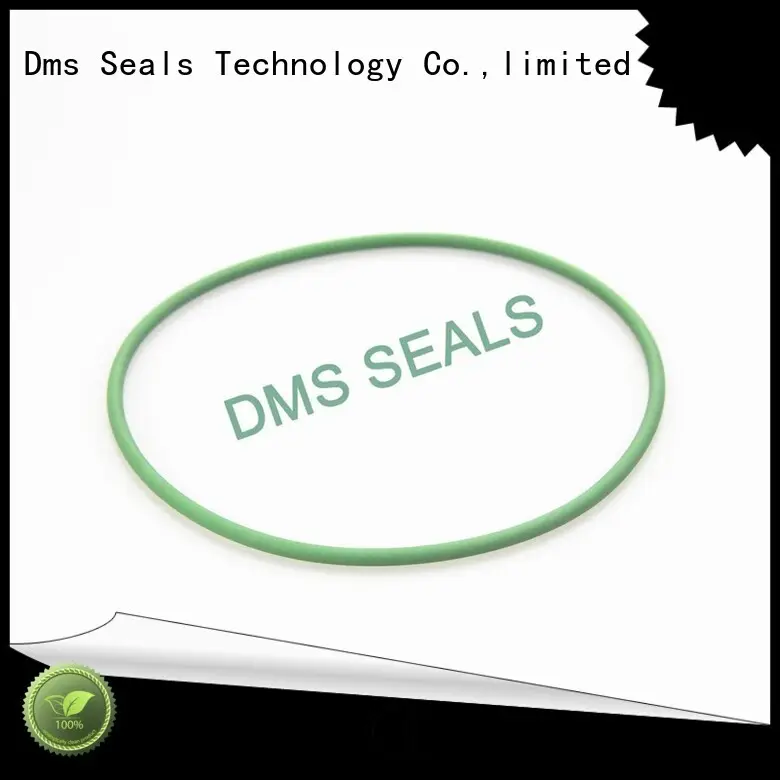

fkm O Ring Manufacturer with a diisocyanate or a polymeric isocyanate for sale

Company Advantages
1. The offered DMS Seal Manufacturer oil seal ring is designed by our experienced professionals by making use of quality raw material.
2. DMS Seal Manufacturer oil seal ring is manufactured through the use of leading-edge technologies.
3. The whole production process of DMS Seal Manufacturer O Ring Manufacturer is guided and supervised by experienced professionals.
4. Because of its excellent characteristics, O Ring Manufacturer has gotten much wider application.
5. It is put on the market after strict quality inspection.
6. With company philosophy of 'Quality comes first.', the product is guaranteed to meet the highest quality standards.
7. This offered DMS Seal Manufacturer brand product is with stable performance.
8. This product is environmentally friendly. Being energy efficient, it is less likely to increase energy costs or cause environmental impact.
9. The product has been extensively applied in many industries because it can replace human to finish the repeated, tedious, or even dangerous tasks.
10. This product prevents users from feeling damp and drenched at night since its fabric wicks moisture away to some extent.
11. By wearing this product, people can look fashionable and feel comfortable while staying active, whether at work or play.
12. The product is striking and fits well. And because its applicability is reliable and consistent across different categories, customers don't need much persuasion to keep coming back.

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

NBR / FKM

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Dms Seals Technology Co.,limited has been always centering on the developing , designing and producing of O Ring Manufacturer . With many production lines and experienced workers, Dms Seals Technology Co.,limited is one of the biggest export company for o-ring seal . With high quality o ring seal manufacturer , DMS Seal Manufacturer has gained more popularity in global market. With high quality and reasonable price, DMS Seal Manufacturer is widely known to every household.
2. Dms Seals Technology Co.,limited has advanced production equipment and strong technical force. Dms Seals Technology Co.,limited has superior equipment and advanced process for o ring kit manufacturer production. Dms Seals Technology Co.,limited has gained many patents for its technology.
3. Dms Seals Technology Co.,limited fights for competitive advantage, fights for market share, and fights for customer satisfaction. Get info! Dms Seals Technology Co.,limited will take immediate measures to help customers for problems happened to our O Ring Manufacturer . Get info! oil seal ring expresses Dms Seals Technology Co.,limited's adherence to the 'people-oriented' development concept. Get info! high pressure o ring seals has become the eternal tenet of Dms Seals Technology Co.,limited. Get info! The essence in service theory of Dms Seals Technology Co.,limited is wiper seal design . Get info!
