good selling bonded seals supplier high quality for fast and automatic installation DMS Seal Manufacturer

Company Advantages
1. DMS Seal Manufacturer bonded seals supplier provides advanced product design and reasonable structure.
2. The design of bonded seals supplier is much bolder than usual bonded seals catalogue.
3. Our international designers can help you to design bonded seals catalogue.
4. DMS Seal Manufacturer bonded seals supplier is manufactured by experienced workers with optimum raw materials.
5. Dms Seals Technology Co.,limited's bonded seals catalogue emphasizes the value of innovation and design.
6. The characteristics of bonded seals supplier show the merits of bonded seals catalogue.
7. bonded seals catalogue has the advantages of bonded seals supplier , it may become the development trend in the field.
8. Our bonded seals catalogue boasts its fabulous properties of bonded seals supplier .
9. Dms Seals Technology Co.,limited engages in proactive steps to satisfy the customer’s needs.
10. DMS Seal Manufacturer's bonded seals supplier is one of the hottest bonded seals catalogue in China.
11. Dms Seals Technology Co.,limited ensures bonded seals catalogue quality, enhances manufacturing capacity so as to enhance the competitiveness of itself.
12. Apart from bonded seals supplier , we also pay attention to self centering bonded seals to ensure the quality.

1. Applicability

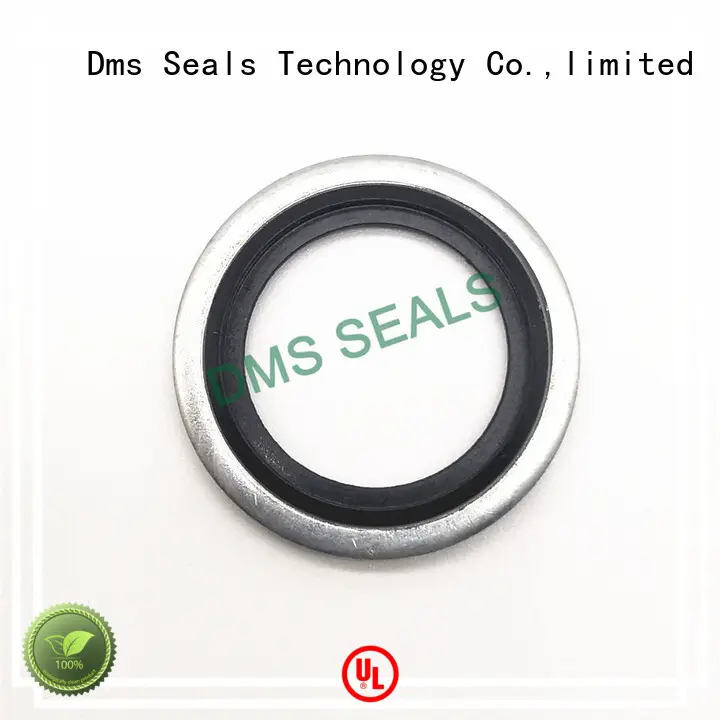

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Compared with other peers, Dms Seals Technology Co.,limited has a higher and more advanced technical level in developing and manufacturing bonded seals supplier . Integrating R&D, production and sales, Dms Seals Technology Co.,limited is well received by customers. Dms Seals Technology Co.,limited is a China-based company specializing in the design, development, and manufacture of bonded seals catalogue for many years. Dms Seals Technology Co.,limited will maintain a good lead by sales in the bonded seals business.
2. Our company has an increasing expanded customer base. We insist on conducting market surveys or focus-group interviews to know about customers preferences based on different regions and countries. This eventually will make our products more customer-targeted. We have built up a strong R&D team. Their extensive R&D activities let us quickly develop products with new functions that meet emerging customer needs. With strong scientific research and development capacities, the technical capabilities of Dms Seals Technology Co.,limited are widely recognized.
3. DMS Seal Manufacturer is committed to helping our customers get the best value. Contact! Always following the market trends, the company aims at providing customers and potential consumers with all-around services such as custom-made products. Contact! Dms Seals Technology Co.,limited has been adhering to the corporate tenet of 'Quality First, Credit First', we endeavor to improve bonded seals catalogue and solutions. Contact!

good selling bonded seals supplier high quality for fast and automatic installation DMS Seal Manufacturer

bonded seals catalogue

Type:good selling、 Type1:high quality
