gsjw O Ring Manufacturers with nbr or pu for pressure work and sliding high speed occasions

Company Advantages
1. The production of DMS Seal Manufacturer push rod seal includes overall three parts: the production of filament, the bulb, and the base, which is highly automated.
2. The labeling of DMS Seal Manufacturer push rod seal is ensured to contain all required information including registered identification number (RN), country of origin, and fabric content/care.
3. DMS Seal Manufacturer push rod seal is computer-aided designed (CAD). Workers who are responsible for CAD are abundant in creating and designing inflatable items experience.
4. The product has a better reach than advertising does and can set a brand apart from its competitors. It promotes and reinforces the purchase decision.
5. The wide drawing area provides a large space for signing, drawing, and writing which can be easily saved and stored.
6. This product can emit light in a specific direction. Unlike conventional bulbs which emit light in all directions, this directional lighting capability reduces the possibility of wasting light.
7. The product can be connected to the Mac or Windows PC with USB or built-in Bluetooth, which is easy to use and is ultra-responsive for users to create work directly.
8. Featuring compactness and light weight, it can be carried around by people such as for traveling, business trips, camping, or going to the beach.
9. The low maintenance of this product means that people won't have to put a lot more money into the renovation project once it is installed in the kitchen.
10. The product can meet the high-quality water demand use for chemistry, biology, pharmacy, medicine, and semiconductor fields.
11. The product does not have an unbearable smell which most of the other textile products have. - Said one of our customers.
12. This product can be utilized to providing additional information that won’t fit on the packaging, or simply making the brand’s designs bigger to better help with branding.

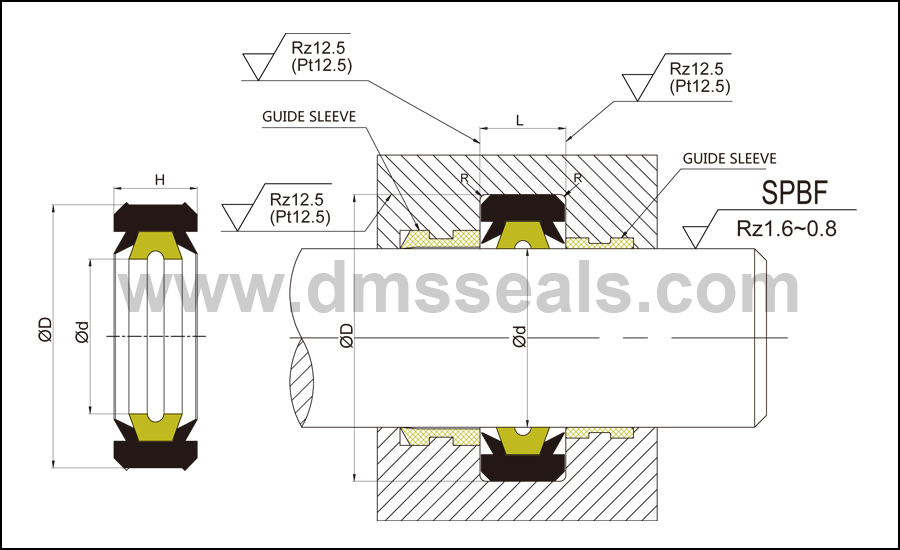

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

3. Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 25MPa	-30℃ + 100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI50*60*15 MDI55*65*15 MDI56*66*15
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI60*73*15 MDI63*76*15 MDI65*78*15
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI70*83*15 MDI72*85*15 MDI75*88*15
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI80*93*15 MDI85*98*15 MDI90*103*15
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI95*108*15 MDI100*113*15 MDI105*118*15
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI110*120*15 MDI110*123*15 MDI115*128*15
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI120*133*15 MDI125*138*15 MDI130*143*15
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI140*153*15 MDI150*162*15 MDI150*165*15
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI160*175*15 MDI165*180*15 MDI170*185*15
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI180*195*15 MDI185*200*15 MDI190*205*15

Company Features
1. DMS Seal Manufacturer plays a great role in leading the trend of Chinese O Ring Manufacturers industry. Dms Seals Technology Co.,limited primarily manufactures medium and high grade o-ring seal to satisfy different customers. Dms Seals Technology Co.,limited has evolved into one of the major hydraulic rod seals manufacturing bases in this region. rod seals of Dms Seals Technology Co.,limited has exported to many countries and well received.
2. As a core value of DMS Seal Manufacturer, the position of O Ring Manufacturers manufacture technology has been highly valued. In order to occupy an important position, DMS Seal Manufacturer has been making O Ring Manufacturers using the most advanced technology. DMS Seal Manufacturer has a number of high-end manufacturing technology to enhance the quality of O Ring Manufacturers . Thanks to our excellent technology, O Ring Manufacturers is of high quality.
3. Our company will work hard to fulfill our commitment to responsibly managing its effects made on society, economy, and environment. We will run business in line with public expectations. Get info! Dms Seals Technology Co.,limited will adhere to the marketing of O Ring Manufacturers style culture. Get info! We strive to provide the most innovative product and service to our clients. We will conduct different kinds of solutions or services around the product with our clients. Get info!

gsjw O Ring Manufacturers with nbr or pu for pressure work and sliding high speed occasions

O Ring Manufacturers

Type:gsjw 、 Type1:spnc
