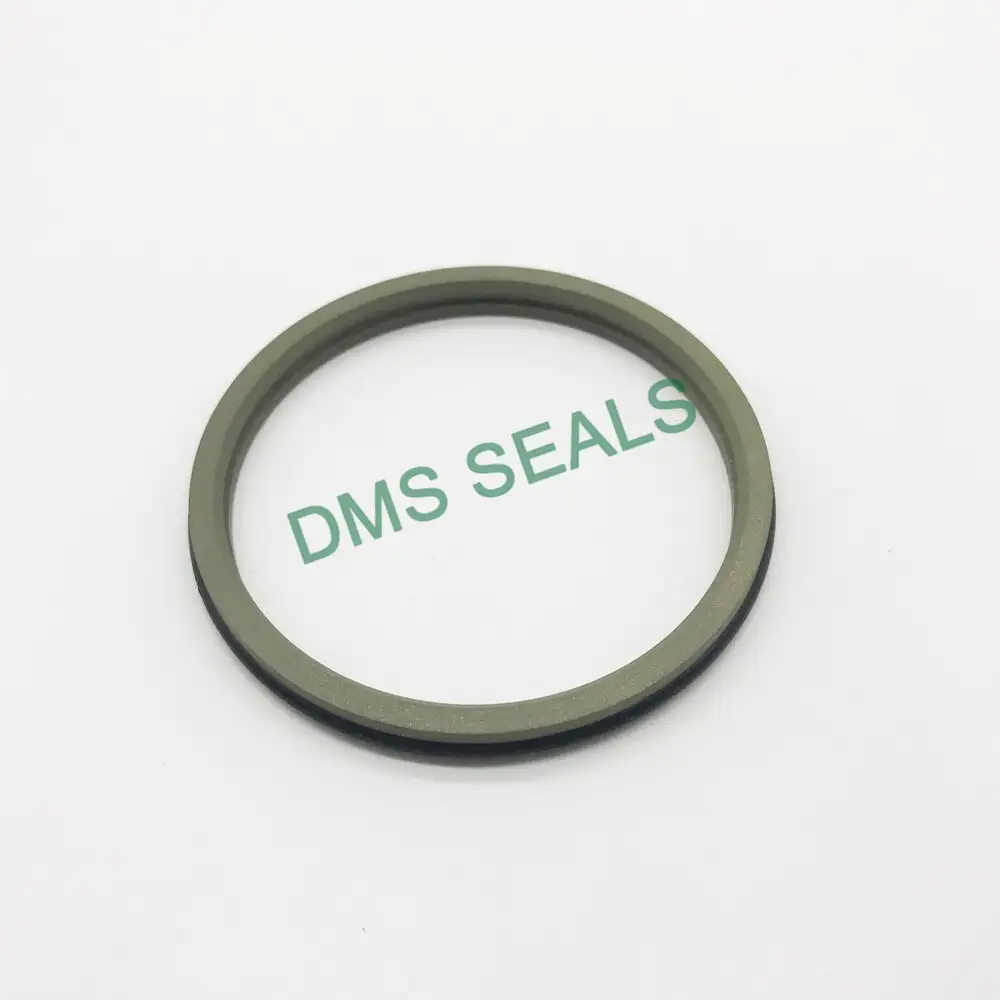

Gsz Dustproof Ring Gsz-5 PTFE Dustproof Saddle-Shaped Seal
GSZ is a reciprocating seal installed on the piston rod to prevent external dust from mixing into the hydraulic cylinder.
Precautions for the use of dust rings: all dust rings cannot bear pressure, that is, they do not have sealing function. Their function is only to prevent dust, and they must be used together with other seals; During the design, the lip of the dust ring shall not be cut due to contact with the piston rod hole or the opposite side of the wrench.
| Item | Specifications |
| Product Name | Gsz Dustproof Ring Gsz-5 PTFE Dustproof Saddle-Shaped Seal |
| Products Category | Hydraulic seals, Oil seals, O-Rings |
| Material | PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc. |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Sizes | Standard and customize |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
| NO. | SIZE | NO. | SIZE |
| 1 | GSZ20*27.6*4.2 | 30 | GSZ140*156*9.5 |
| 2 | GSZ25*32.6*4.2 | 31 | GSZ145*161*9.5 |
| 3 | GSZ28*35.6*4.2 | 32 | GSZ150*166*9.5 |
| 4 | GSZ30*37.6*4.2 | 33 | GSZ155*171*9.5 |
| 5 | GSZ32*39.6*4.2 | 34 | GSZ160*176*9.5 |
| 6 | GSZ36*43.6*4.2 | 35 | GSZ165*181*9.5 |
| 7 | GSZ40*48.8*6.3 | 36 | GSZ170*186*9.5 |
| 8 | GSZ42*50.8*6.3 | 37 | GSZ175*191*9.5 |
| 9 | GSZ45*53.8*6.3 | 38 | GSZ180*196*9.5 |
| 10 | GSZ50*58.8*6.3 | 39 | GSZ190*206*9.5 |
| 11 | GSZ55*63.8*6.3 | 40 | GSZ200*216*9.5 |
| 12 | GSZ56*64.8*6.3 | 41 | GSZ210*226*9.5 |
| 13 | GSZ60*68.8*6.3 | 42 | GSZ220*236*9.5 |
| 14 | GSZ63*71.8*6.3 | 43 | GSZ240*256*9.5 |
| 15 | GSZ65*73.8*6.3 | 44 | GSZ250*266*9.5 |
| 16 | GSZ70*82.2*8.1 | 45 | GSZ260*276*9.5 |
| 17 | GSZ75*87.2*8.1 | 46 | GSZ270*286*9.5 |
| 18 | GSZ80*92.2*8.1 | 47 | GSZ280*296*9.5 |
| 19 | GSZ85*97.2*8.1 | 48 | GSZ300*316*9.5 |
| 20 | GSZ90*102.2*8.1 | 49 | GSZ320*336*9.5 |
| 21 | GSZ95*107.2*8.1 | 50 | GSZ330*346*9.5 |
| 22 | GSZ100*112.2*8.1 | 51 | GSZ350*366*9.5 |
| 23 | GSZ105*117.2*8.1 | 52 | GSZ360*376*9.5 |
| 24 | GSZ110*122.2*8.1 | 53 | GSZ380*396*9.5 |
| 25 | GSZ115*127.2*8.1 | 54 | GSZ400*424*14 |
| 26 | GSZ120*132.2*8.1 | 55 | GSZ440*464*14 |
| 27 | GSZ125*137.2*8.1 | 56 | GSZ450*474*14 |
| 28 | GSZ130*142.2*8.1 | 57 | GSZ480*504*14 |
| 29 | GSZ135*147.2*8.1 | 58 | GSZ500*524*14 |
