Product Details
Dms Seals adheres to the principle of 'details determine success or failure' and pays great attention to the details of Oil Seal Manufacturer.Closely following the market trend, Dms Seals uses advanced production equipment and manufacturing technology to produce Oil Seal Manufacturer. The product receives favors from the majority of customers for the high quality and favorable price.
Company Advantages1. hydraulic wiper seals is designed by industry's leading designers.
2. The production model of DMS Seal Manufacturer metric wiper seal relies on the concept of modern operations.
3. With unique design in its metric wiper seal , our customers have shown much more interest in hydraulic wiper seals .
4. Its reliable performance outperforms similar products in the industry.
5. Our team adheres to a high standard of quality inspection policy to ensure its quality.
6. The product, inspected throughout the production, is sure to be of high quality.
7. Compared with competitive products, this product possesses a combination of excellent performance and long service life.
8. Many customers are satisfied with the high quality of this product.
9. Dms Seals Technology Co.,limited is able to provides customers with star-rated products and services.
10. Promoting the service with care and consideration is very essential for DMS Seal Manufacturer.
11. Our sales representative will provide detailed information about our hydraulic wiper seals .
12. Dms Seals Technology Co.,limited will provide comprehensive suggestions and guide to customers about our hydraulic wiper seals .
Installation Recommendation
![undefined undefined]()
Installation Sizes
Rod Diameter d f8/h9 | Groove Diameter | Groove Width | Step Diameter | Radius | Step Width |
Standard Application | Suitable
Application | D H9 | L1+0.2 | D1±0.1 | R | a |
140.0-229.9 | 100.0-450.0 | d+22.2 | 6.3 | d+10.7 | 1.2 | 4.2 |
230.0-299.9 | 220.0-450.0 | d+24.2 | 6.3 | d+10.7 | 1.2 | 4.2 |
300.0-629.9 | 250.0-650.0 | d+33.0 | 8.1 | d+15.1 | 1.2 | 6.3 |
630.0-999.9 | 550.0-999.9 | d+36.5 | 9.5 | d+15.1 | 2.0 | 6.3 |
Application and properties
Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm |
| -30℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
d f8 | D H9 | H | L1+0.2 | L1 | Order No. |
100
110
120 | 122.2
132.2
142.2 | 13.5
13.5
13.5 | 6.3
6.3
6.3 | 4.2
4.2
4.2 | DPT2-100*122.2*6.3
DPT2-110*132.2*6.3
DPT2-120*142.2*6.3 |
130
140
150 | 152.2
162.2
172.2 | 13.5
13.5
13.5 | 6.3
6.3
6.3 | 4.2
4.2
4.2 | DPT2-130*152.2*6.3
DPT2-140*162.2*6.3
DPT2-150*172.2*6.3 |
160
170
180 | 182.2
192.2
202.2 | 13.5
13.5
13.5 | 6.3
6.3
6.3 | 4.2
4.2
4.2 | DPT2-160*182.2*6.3
DPT2-170*192.2*6.3
DPT2-180*202.2*6.3 |
190
200
210 | 212.2
222.2
232.2 | 13.5
13.5
13.5 | 6.3
6.3
6.3 | 4.2
4.2
4.2 | DPT2-190*212.2*6.3
DPT2-200*222.2*6.3
DPT2-210*232.2*6.3 |
220
230
240 | 242.2
252.2
262.2 | 13.5
13.5
13.5 | 6.3
6.3
6.3 | 4.2
4.2
4.2 | DPT2-220*242.2*6.3
DPT2-230*252.2*6.3
DPT2-240*262.2*6.3 |
250
260
270 | 272.2
282.2
292.2 | 13.5
13.5
13.5 | 6.3
6.3
6.3 | 4.2
4.2
4.2 | DPT2-250*272.2*6.3
DPT2-260*282.2*6.3
DPT2-270*292.2*6.3 |
275
280
290 | 297.2
302.2
312.2 | 13.5
13.5
13.5 | 6.3
6.3
6.3 | 4.2
4.2
4.2 | DPT2-275*297.2*6.3
DPT2-280*302.2*6.3
DPT2-290*312.2*6.3 |
295
300
320 | 317.2
333
353 | 13.5
18.4
18.4 | 6.3
8.1
8.1 | 4.2
6.3
6.3 | DPT2-295*317.2*6.3
DPT2-300*333*8.1
DPT2-320*353*8.1 |
340
350
360 | 373
383
393 | 18.4
18.4
18.4 | 8.1
8.1
8.1 | 6.3
6.3
6.3 | DPT2-340*373*8.1
DPT2-350*383*8.1
DPT2-360*393*8.1 |
Company Features1. Dms Seals Technology Co.,limited has been putting efforts on the design, manufacture, and marketing of metric wiper seal . We are highly prestigious in the industry. As a manufacturer based in China, Dms Seals Technology Co.,limited is a resource and partner that can be trusted to make outstanding rod wiper seals. Dms Seals Technology Co.,limited is a professional manufacturer based in China. We have a solid reputation for designing and manufacturing award-winning hydraulic wiper seals .
2. After being put out, our products have received very good market repercussion. The market response provides us the opportunity to continually assess the market trend, thereby we can provide market-oriented products. Our factory has a number of advanced and sophisticated product testing instruments which are approved by authoritative institutions. This has brought to increased product quality and safety guarantee. We have received many honors during our business operation. We have been awarded as 'Best Supplier', 'Best Quality Provider', etc. These honors encourage us to reach better results. Our sales performance continues to achieve overall good growth. We now have our products sold worldwide, with a large amount of revenue coming from Asia, North America, and the Middle East. We have well-established teams of workers. All of the team members take great pride in mastering their craft in our state-of-the-art facilities.
3. The goal of DMS Seal Manufacturer is to shoulder the responsibility of wiper seals. Contact! For the common development of DMS Seal Manufacturer and related industry, we are dedicated to creating high-end scraper seals . Contact! All of our staff must know our hydraulic wiper seals well before they start their jobs. Contact!

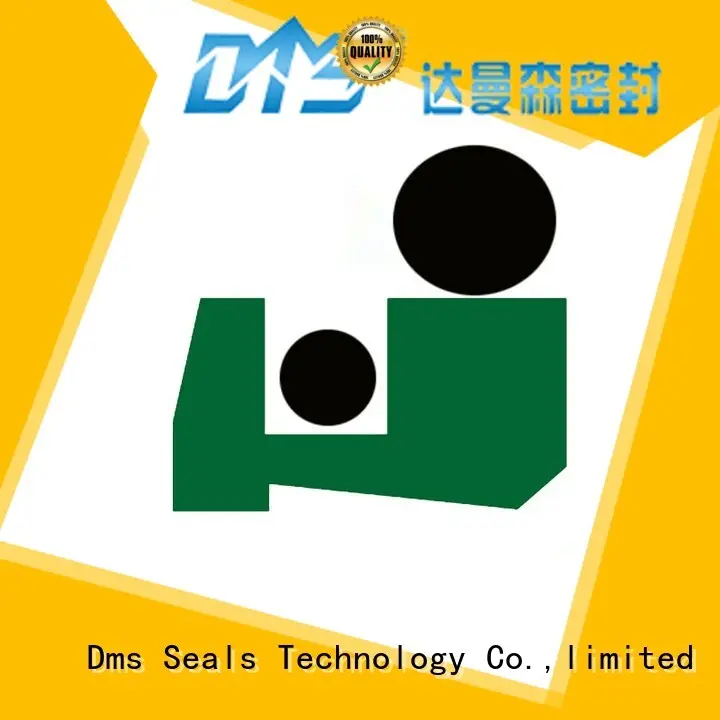

high efficiency hydraulic wiper seals with nbr or fkm o ring for cranes
hydraulic wiper seals
Type:
![high efficiency hydraulic wiper seals with nbr or fkm o ring for cranes 6]()
